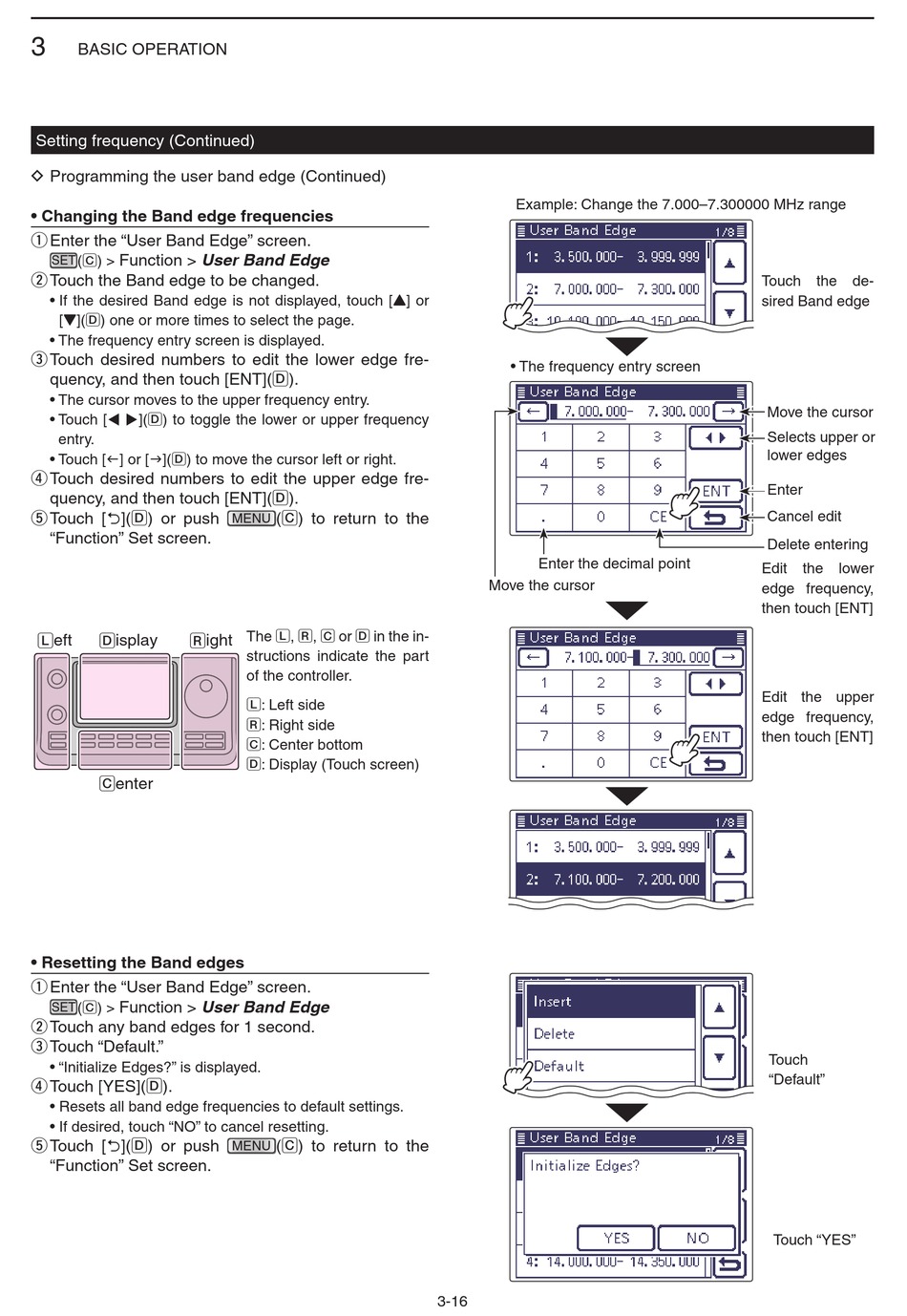

Icom IC-7100 Instruction Manual page 48

3
BASIC OPERATION
Setting frequency (Continued)
D
Programming the user band edge (Continued)
Enter the "User Band Edge" screen.
q
Function > User Band Edge
(C) >
SET
Touch the Band edge to be changed.
w
[Z](D) one or more times to select the page.
Touch desired numbers to edit the lower edge fre-
e
quency, and then touch [ENT](D).
t u](D) to toggle the lower or upper frequency
entry.
f] or [g](D) to move the cursor left or right.
Touch desired numbers to edit the upper edge fre-
r
quency, and then touch [ENT](D).
Touch [ ](D) or push
t
"Function" Set screen.
L eft D isplay R ight
C enter
Enter the "User Band Edge" screen.
q
Function > User Band Edge
SET (C) >
Touch any band edges for 1 second.
w
Touch "Default."
e
Touch [YES](
r D).
Touch [ ](D) or push
t
"Function" Set screen.
Y] or
(C) to return to the
MENU
The L, R, C or D in the in-
structions indicate the part
of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
(C) to return to the
MENU
Example: Change the 7.000–7.300000 MHz range
Enter the decimal point
Move the cursor
3-16
Touch the de-
sired Band edge
Move the cursor
Selects upper or
lower edges
Enter
Cancel edit
Delete entering
Edit the lower
edge frequency,
then touch [ENT]
Edit the upper
edge frequency,
then touch [ENT]
Touch
"Default"
Touch "YES"
