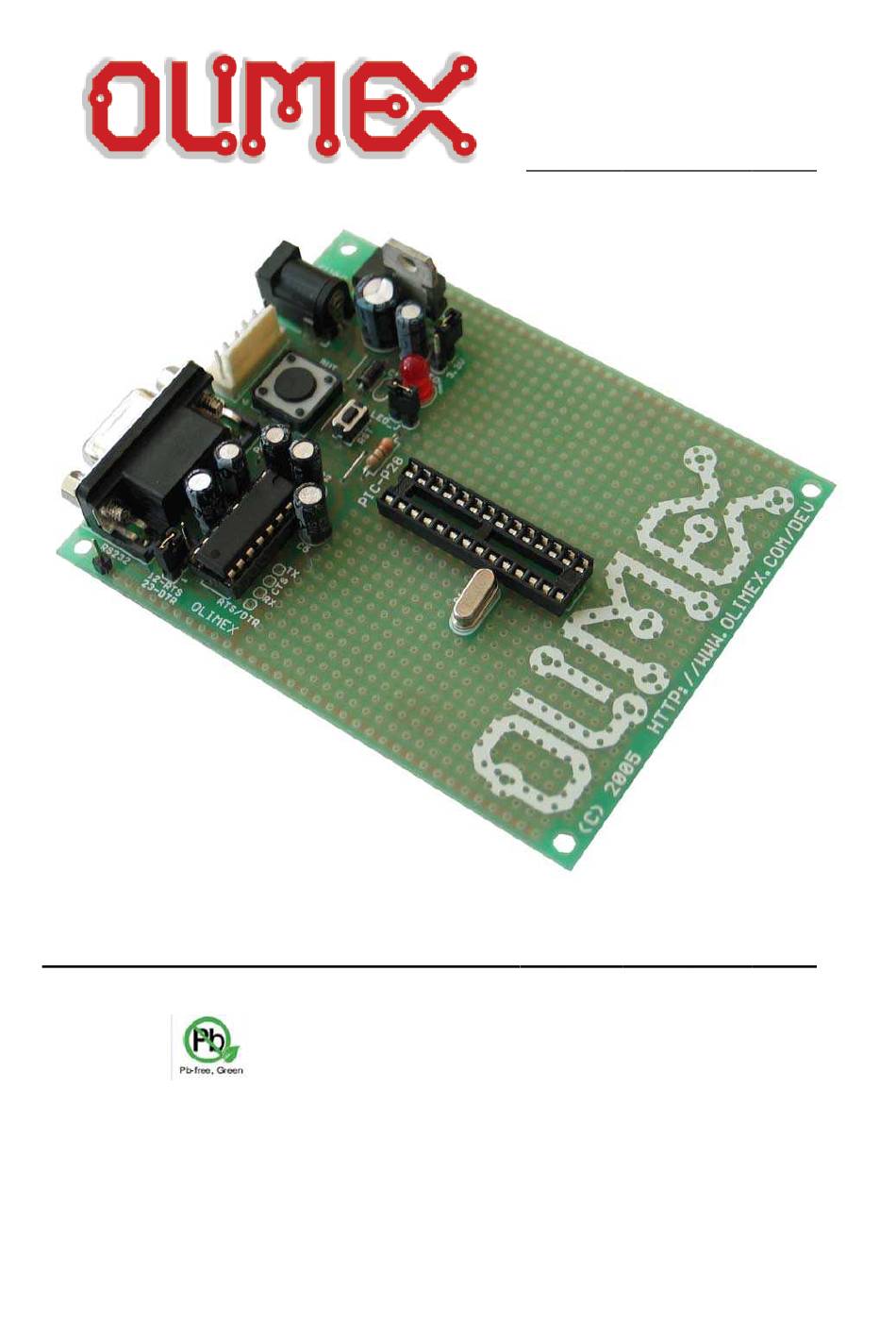

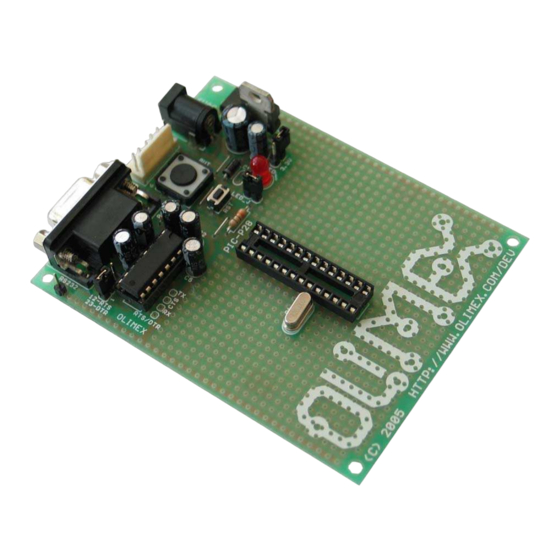

- Page 1 PIC-P28 development board Users Manual All boards produced by Olimex are ROHS compliant Rev. D, February 2008 Copyright(c) 2008, OLIMEX Ltd, All rights reserved Page 1...
- Page 2 PIC-P28 board is development board which allow you to prototype and develop code for all Microchip’s PIC microcontrollers with 28 pins. What you can do with PIC-P28? A lot of stuff let’s see what we have: PIC-P28 have RS232 connector and driver, so you can interface your PIC microcontroller to other embedded or PC with RS232.
- Page 3 Page 3...
- Page 4 FEATURES: • ICSP/ICD connector for programming and debugging • RS232 interface with MAX232 IC on socket • DIL28 microcontroller socket • Quartz crystal 20Mhz • LED to RA0 through jumper • user Button to RA5 • Reset button and circuit •...
- Page 5 RA5/AN4 4.7uF/25VDC INT/RB0 4.7uF/25VDC OSC1/CLKIN OSC2/CLKOUT RX/RC7 TX/RC6 4-20MHz RC0/T1OSO SDO/RC5 RC1/T1OSI SDI/SDA/RC4 4.7uF/25VDC RC2/CCP1 4.7uF/25VDC RC3/SCL/SCK RS232 PIC28pin T1IN T1OUT PIC-P28 T2IN T2OUT R1OUT R1IN R2OUT R2IN Rev. D MAX232 COPYRIGHT(C) 2008, Olimex Ltd. RTS/DTR http://www.olimex.com/dev 12-RTS 23-DTR 4.7uF/25VDC...
- Page 6 Hyperterminal on your host PC computer with 9600 bps, 8 data bit, 1 stop bit, No flow control and apply power supply to the PIC-P28 every character you type on the hyperterminal will be printed back with “*” i.e. if you type “abc”...
- Page 7 ORDER CODE: PIC-P28 – assembled and tested (no kit, no soldering required) PIC-P28/PCB – blank PCBs only How to order? You can order to us directly or by any of our distributors. Check our web www.olimex.com/dev for more info. Revision history: REV.
- Page 8 This document is intended only to assist the reader in the use of the product. OLIMEX Ltd. shall not be liable for any loss or damage arising from the use of any information in this document or any error or omission in such information or any incorrect use of the product.
