Summary of Contents for OLIMEX PIC-P8

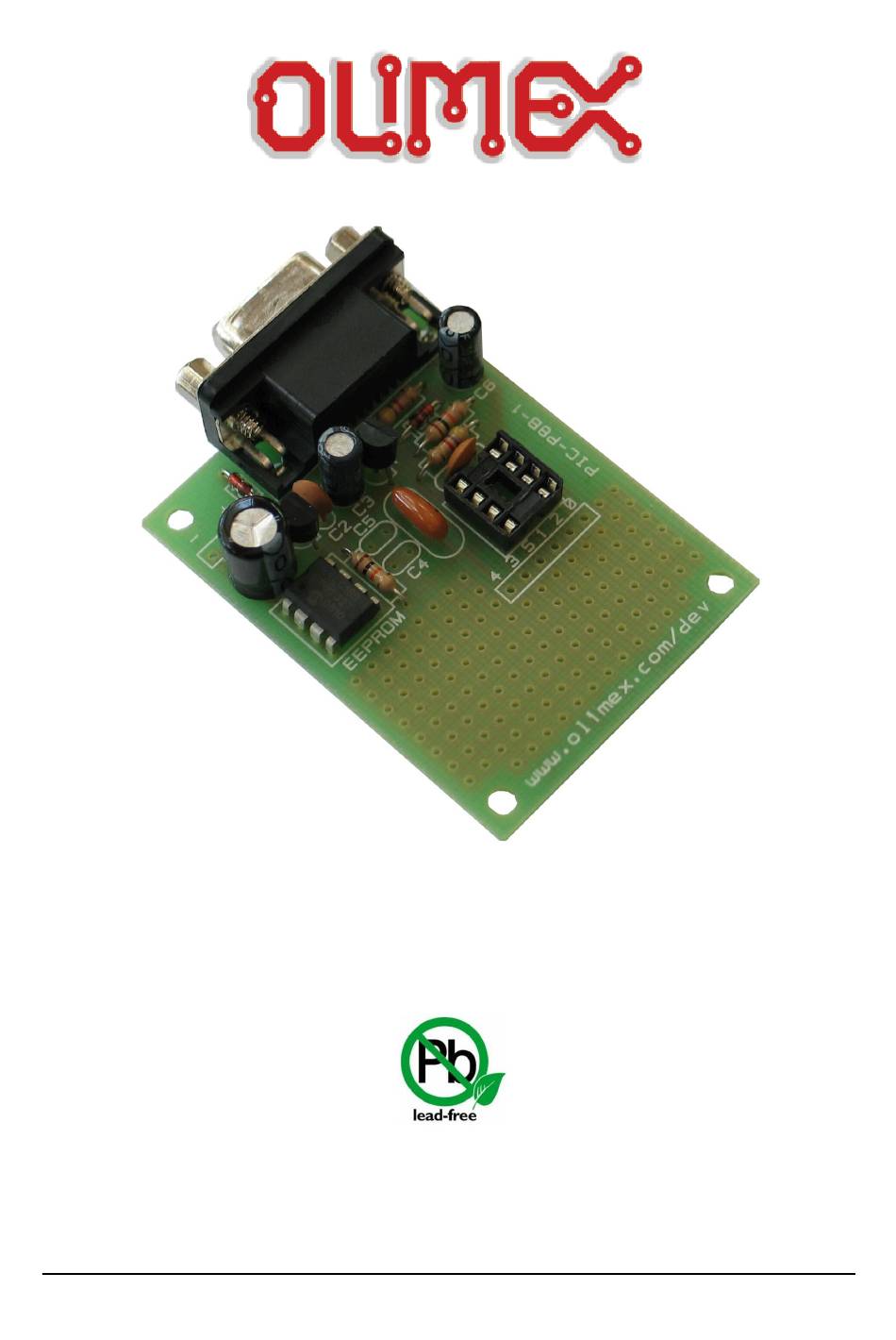

- Page 1 PIC-P8 development board User's manual Document revision B, April 2016 Copyright(c) 2016, OLIMEX Ltd, All rights reserved Page 1 of 6...
- Page 2 PIC-P8 board is low cost development board, which allows you to prototype and develop code for all Microchip’s PIC microcontrollers with 8 pins. What you can do with PIC-P8? A lot of stuff let’s see what we have: PIC-P8 have RS232 connector and driver, so you can interface your PIC microcontroller to other embedded boards or PC with RS232.
-
Page 3: Board Layout
BOARD LAYOUT: RS232 interface with level shifter circuit GPIO ports available next to prototype area DIL8 microcontroller socket Ceramic resonator 4 Mhz EEPROM I2C memory Input protection diode Voltage regulator +5V, 100mA Gird 100 mils ... -
Page 4: Power Supply Circuit
HARDWARE SCHEMATIC: PIC-P8, designed and manufactured by OLIMEX LTD, Plovdiv, Bulgaria 100nF EEPROM VCC 8 WP 7 SCL 6 20pF/C0805 SDA 5 Opened 20pF/C0805 4MHz CON2 4.7k/0.25W 24LC32A-I/P 2N3906 Opened 10k/0.25W 10k/0.25W 1N4148 CANON-DB9FH 4.7k/0.25W CON1 (NA)CON6HN1X6 4 3 5 1 2 0... -
Page 5: Software Examples
This demo code shows how to send and receive to RS232 with bit bank technique without having PIC with UART. ORDER CODES: PIC-P8 – assembled and tested (no kit, no soldering required) PIC-P8/PCB – blank PCBs only How to order? You can order directly from our web-shop or from any of our distributors. - Page 6 All goods are checked before they are sent out. In the unlikely event that goods are faulty, they must be returned, to OLIMEX at the address listed on your order invoice. OLIMEX will not accept goods that have clearly been used more than the amount needed to evaluate their functionality.
- Page 7 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Olimex Ltd. PIC-P8...
