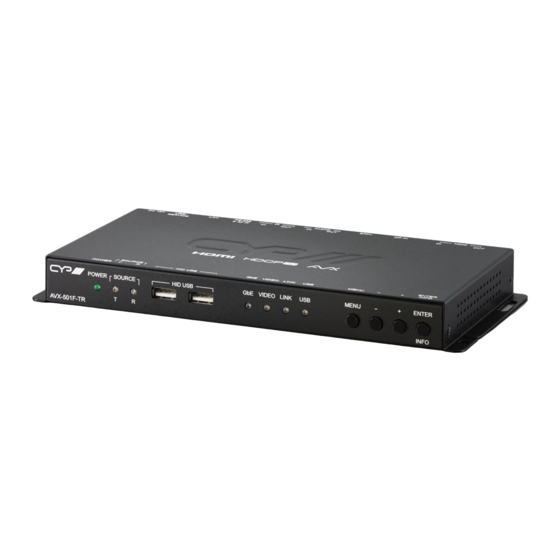

AVX-501F-TR
AVX over Fiber - UHD+ 2x1 HDMI/DP to HDMI Bi-
directional Transceiver W/HID USB
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVX-501F-TR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP AVX-501F-TR

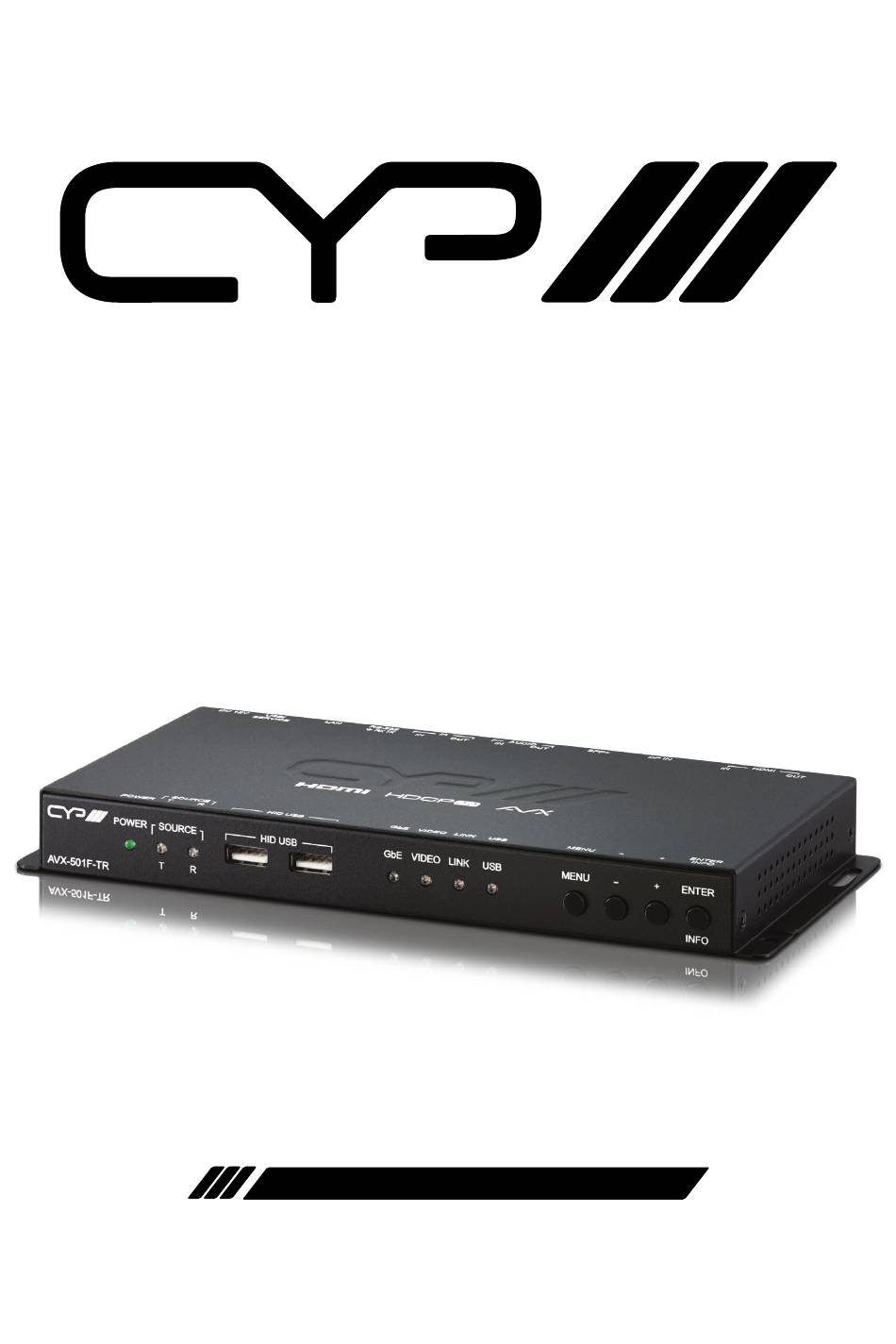

  • Page 1 AVX-501F-TR AVX over Fiber - UHD+ 2x1 HDMI/DP to HDMI Bi- directional Transceiver W/HID USB OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Rear Panel ...............5 6.3 IR Cable Pinouts ...........7 6.4 RS-232 Pinout and Defaults ......7 6.5 OSD Menu ..............8 6.6 Basic AV Extension ...........
  • Page 6: Introduction

    1. INTRODUCTION This Transceiver is designed for high-quality AV extension with minimum latency. Every Transceiver is capable of simultaneous bi-directional AV extension, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams (HDMI or DisplayPort) and data.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS  HDMI or DisplayPort source equipment such as a media player, video game console, PC, or set-top box  HDMI receiving equipment such as an HDTV, monitor, or audio amplifier  Analogue audio receiving equipment such as headphones, an audio amplifier, or powered speakers  IEEE 802.3ae compatible SFP+ fiber module supporting a dual-optical fiber connection style, such as LC, or a pre-terminated crossover dual-...
  • Page 8: Operation Controls And Functions

    VIDEO LINK LINK MENU ENTER AVX-501F-TR INFO POWER LED: This LED will illuminate to indicate the unit is on and receiving power. SOURCE T LED: The illumination of this LED indicates which AV input is currently selected to be the source transmitted as an AV over IP stream.
  • Page 9 MENU Button: Press to enter the OSD menu, or to back out from menu items. Note: The OSD menu will be visible on the HDMI output of both connected transceivers so it is recommended to adjust the OSD position on one unit to avoid the menus overlapping.
  • Page 10: Rear Panel

    6.2 Rear Panel HDMI AUDIO TX RX DC 12V DP IN SFP+ RS-232 USB/SERVICE HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output. HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box.
  • Page 11 LAN Port: Connect to an Ethernet supporting device or to your local network as appropriate to extend the network between transceivers. USB/SERVICE (Mini-B) Port: Connect directly to a standard USB host such as a PC or laptop to extend their USB functionality to all currently connected/routed USB devices.
  • Page 12: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 57600 Data Bits Parity Bits None Stop Bits Flow Control None 3-pin Terminal Block Note: The default Serial Port baud rate can only be changed by use of the optional IP Master Controller or control software.
  • Page 13: Osd Menu

    6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 14 2ND LEVEL 3RD LEVEL Display Information Information Timeout 10~40 Sec (10 Sec) Menu Timeout 10~40 Sec (10 Sec) 0~100 (10) Menu H Position 0~100 (10) Menu V Position 1) Display Information: Enable or disable the Information OSD. 2) Information Timeout: Set the display timeout for the Information OSD.
  • Page 15 EDID 2ND LEVEL 3RD LEVEL INTERNAL 1 (FHD 2CH) HDMI EDID Internal 2 (FHD MCh) Internal 3 (UHD 2Ch) Internal 4 (UHD MCh) Internal 5 (UHD+ 2Ch) Internal 6 (UHD+ MCh) External A [HDMI Output] External B [VoIP Output] User 1 User 2 INTERNAL 1 (FHD 2CH) DP EDID...
  • Page 16 This unit provides the following 6 default EDIDs: Unit’s default EDIDs FHD 2CH 1920×1080p@60Hz (4.95Gbps), 8-bit colour, LPCM 2.0 FHD MCH 1920×1080p@60Hz (4.95Gbps), 8-bit colour, LPCM 7.1 & Bitstream UHD 2CH 3840×2160p@30Hz (10.2Gbps), 12-bit Deep Colour, LPCM 2.0 UHD MCH 3840×2160p@30Hz (10.2Gbps), 12-bit Deep Colour, LPCM 7.1 &...
  • Page 17 HDCP 2ND LEVEL 3RD LEVEL HDMI HDCP Disable Follow out Follow in FOLLOW API DP HDCP Disable Follow out Follow in FOLLOW API VOIP HDCP FOLLOW IN 1) HDMI HDCP: Selects the HDCP logic to use with the HDMI input. „...
  • Page 18 DEVICE SETTING 2ND LEVEL 3RD LEVEL TRANSCEIVER Status HOST USB Control Mode Device INPUT 1 (HDMI) HDMI Out Source Input 2 (DP) Input 3 (VOIP) INPUT 1 (HDMI) VOIP Out Source Input 2 (DP) Input 3 (VOIP) HDMI Out Auto Mode AUTO SWITCH VOIP Out Auto Mode AUTO SWITCH...
  • Page 19 source selection mode. When enabled, the unit will automatically switch the input routed to the local HDMI output whenever a new source is detected or if the current source is lost. 6) VOIP Out Auto Mode: Enable or disable the AVoIP streaming output’s automatic source selection mode.
  • Page 20: Basic Av Extension

    6.6 Basic AV Extension 6.6.1 Point-to-Point (One Way) The most basic extension configuration is a point-to-point system with a single transceiver unit acting as a transmitter connected directly to a single transceiver unit acting as a receiver. In this configuration the HDMI/ DP input on the transmitter side is transmitted to the connected receiver side without modification to the audio or video format.
  • Page 21: Connection Diagram

    7. CONNECTION DIAGRAM Media Player Stereo HDMI Input Input 1.5m 60° DP Input IR Input & Output RS-232 60° HDMI Router Output Local Monitor Power Supply HDMI AUDIO TX RX DC 12V DP IN SFP+ RS-232 USB/SERVICE Fiber Cable POWER SOURCE HID USB VIDEO...
  • Page 22: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps DisplayPort Bandwidth 21.6Gbps Fiber Bandwidth 10Gbps Input Ports 1×HDMI (Type-A) 1×DisplayPort 1×Stereo Audio (3.5mm) Output Ports 1×HDMI (Type-A) 1×Stereo Audio (3.5mm) Bi-directional Port 1×10GbE LAN (SFP+) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 2×USB 2.0 (Type-A) 1×LAN (RJ-45)
  • Page 23: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI Fiber HDMI Fiber 720×400p@70/85      640×480p@60/72/75/85      720×480i@60      720×480p@60      720×576i@50    ...
  • Page 24 Input Output Supported Resolutions (Hz) HDMI Fiber HDMI Fiber 1920×1080p@24/25/30      1920×1080p@50/60      1920×1200p@60RB      2560×1440p@60RB      2560×1600p@60RB      2048×1080p@24/25/30 ...
  • Page 25: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard & High-Definition DisplayPort Input LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48 Bitstream Supported Formats Standard &...
  • Page 26: Analogue Audio

    8.3.2 Analogue Audio Analogue Input Max Audio Level 2Vrms Impedance 10kΩ Type Unbalanced Analogue Output Max Audio Level 2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 80dB@0dBFS Frequency Response < ±1dB@20Hz~20kHz Crosstalk < −80dB@10kHz Impedance 470Ω Type Unbalanced...
  • Page 27: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output DisplayPort Cable DisplayPort Input Fiber Cable Multi-mode Fiber (OM3) 300m Multi-mode Fiber (OM4) 550m Single-mode Fiber 30km Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock...
  • Page 28: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 10GbE 10 Gigabit Ethernet Analogue-to-Digital Converter AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Digital-to-Analogue Converter Decibel DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID...
  • Page 29 ACRONYM COMPLETE TERM Keyboard/Video/Mouse Local Area Network Light-Emitting Diode LPCM Linear Pulse-Code Modulation Media Access Control Megahertz On-Screen Display Picture in Picture Picture outside of Picture SDVoE Software Defined Video over Ethernet Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimised Differential Signaling 4K UHD...
  • Page 32 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
