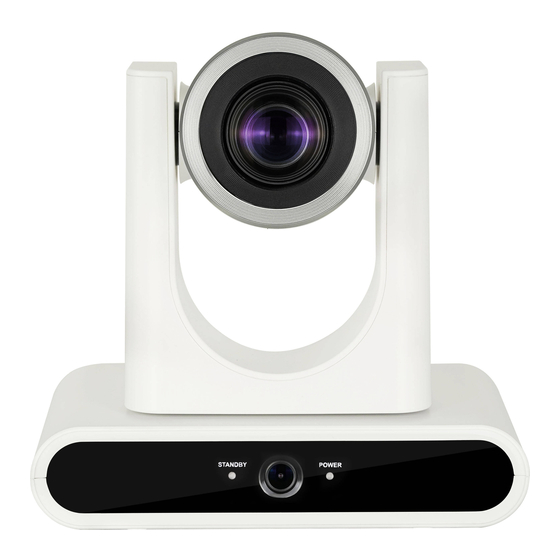

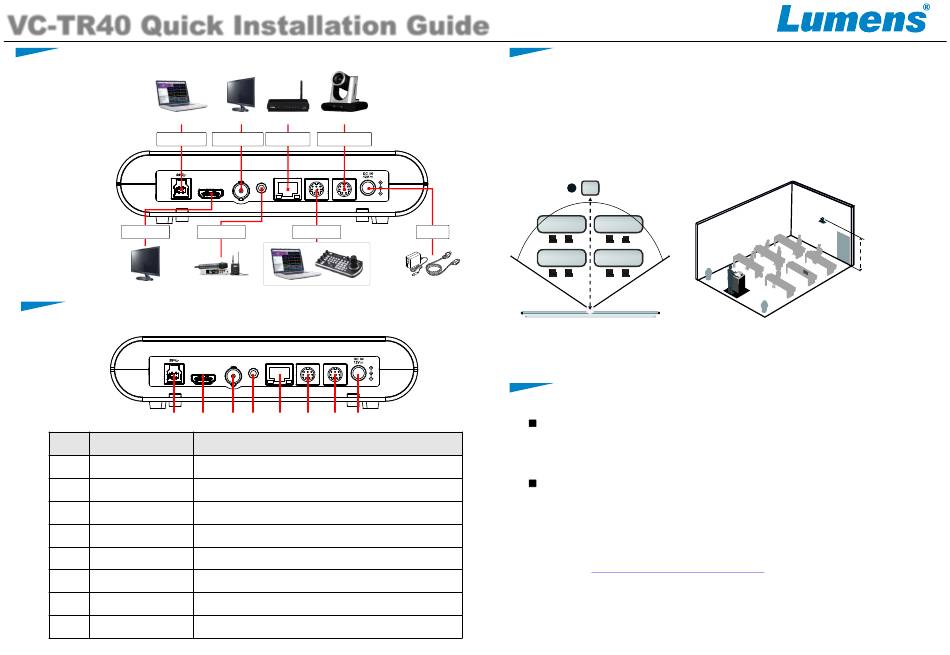

Lumens VC-TR40 Quick Installation Manual

VC-TR40 Quick Installation Guide
1.
Product connection
Computer
USB 3.0 Port
HDMI Output
Display
2.
I/O Function Descriptions

No. Item
1 USB 3.0 Port
2 HDMI Output
3 3G-SDI Output
4 Audio IN
5 Ethernet Port
6 RS-232 Input
7 RS-232 Output
8 DC 12V Power Port
5100467-50 AUG. 2022
Camera (Serial)
Display Router / Hub
3G-SDI Output RS-232 Output
Ethernet Port
ETHERNET RS-232 IN RS-232 OUT
3G-SDI AUDIO IN
HDMI
Audio Input RS-232 Input
Microphone Computer / VS-KB30
ETHERNET RS-232 IN RS-232 OUT
3G-SDI AUDIO IN
HDMI
‚ ƒ „ † … ‡ ˆ
Description
Transmits live video to your computer via USB
HDMI output
3G-SDI output
3.5mm Line In /Mic In
Supports routers or hubs with PoE (IEEE802.3af) power supply
RS-232 input port (connect max. 7 cameras)
RS-232 output port (connect max. 7 cameras)
DC in port
3. Precautions for Installation
3.1 Use the provided DC 12V power cord or a PoE router or hub to
supply power via a network cable.
* VC-TR40 supports PoE (IEEE802.3af)
3.2 Tracking distance range: 4m-15m. Optimal tracking distance 8m.
3.3 Vertical mounting height: 2m-3m, Optimal installation height: 2.4m.
DC Input
8m
* For best tracking results, avoid placing images of people on posters or screens
behind the subject.
4. View VC-TR40 Images
HDMI/ 3G-SDI Image Output
Connect an HDMI or SDI cable to output HD video.
*
The default resolution of VC-TR40 is 1920 x 1080 30 fps
USB Image Output
Connect to computer with a USB 3.0 cable, and use Lumens USB
PTZ Camera Controller software* to view live images and control
the VC-TR40. Use VC-TR40 as a webcam in Skype,Zoom, Microsoft
Teams and other video conferencing apps.
*
Please visit Lumens' website and go to Support > Download to download Lumens
software( https://www.MyLumens.com/Support
www.MyLumens.com
)
