Auto-Tracking Camera
Quick Start Guide
Important
Please activate your warranty:
To download the updated software, multilingual manuals,
and Quick Start Guide, please visit Lumens™ website at:
https://www.
MyLumens.com
1. Product Introduction

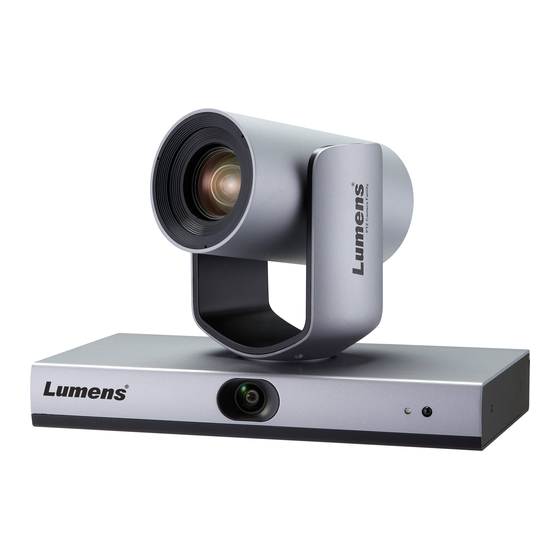

1.1 Product Overview
Tracking
PTZ Camera
Panoramic Camera
LED Indicator
IR Remote
2. Instruction on OUTPUT SWITCH Setting
2.1 Factory-preset default is 1080p60.
2.
2
USB and IP may only choose one,
because they cannot be output at
the same time.
2.3 The camera will restart 5 seconds
after modifying the DIP.
When all the DIP switches are set to ON,
the resolution of the camera is determined
by OSD.
5100401-50 OCT. 2020
www.MyLumens.com/reg
。
。
/support
1.2 I/O Interface
Reserved
SDI
Hole
Output Power
DIP Switch
USB
(DC12V)
LAN Port
HDMI
Power
Output RS-232
Switch
Audio
Input
Input
Mode
Format
SW
Format
USB
1080p60
1080p50
1080p30
1080p25
Ethernet
720p60
720p50
MENU
3. About the power supply
3.1 Connect the DC 12 V power adapter for power supply.
3.2 Access power by using a router that supports PoE or connecting to a
HUB with an Internet cable.
The camera supports PoE+(IEEE802.3at)
Router
4. Installation Precautions
4.1 Recommended best tracking target distance
4.2 Recommended best mounting height: 2.2 ~ 2.4 m
4.3 To install the camera on the wall or ceiling, the accessories could be
OFF
ON
bought separately.
SW
5. Camera connection description
Camera
www.MyLumens.com
CAT6 network cable
: 8~12m
8m~12m
CAT5e/
CAT6
CAT5e/
network cable
network cable
LAN
Copyright ©2020 Lumens Digital Optics Inc. All rights reserved.
Camera
2.2m~2.4m
CAT6
CMS Software
