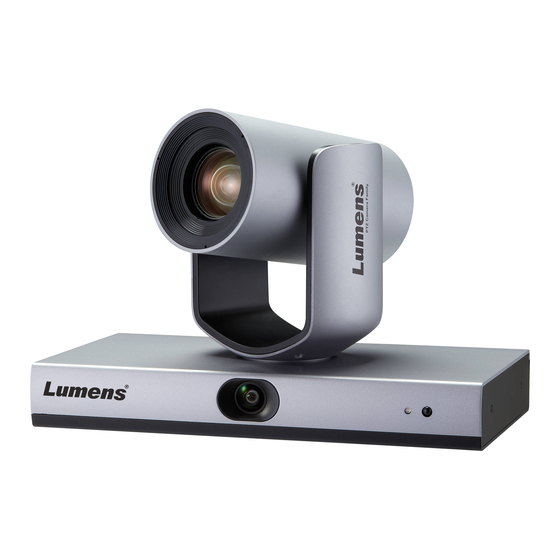

Lumens VC-TR1 Quick Installation Manual

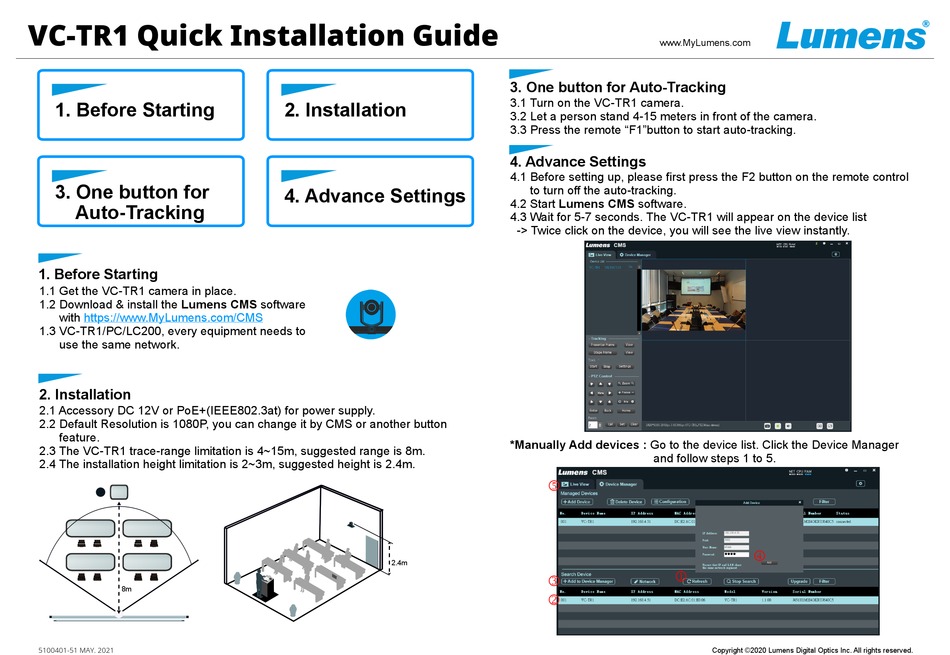

VC-TR1 Quick Installation Guide

1. Before Starting

3. One button for
Auto-Tracking
1. Before Starting
1.1 Get the VC-TR1 camera in place.
1.2 Download & install the Lumens CMS software
with https://www.MyLumens.com/CMS
1.3 VC-TR1/PC/LC200, every equipment needs to
use the same network.

2. Installation

2.1 Accessory DC 12V or PoE+(IEEE802.3at) for power supply.
2.2 Default Resolution is 1080P, you can change it by CMS or another button
feature.
2.3 The VC-TR1 trace-range limitation is 4~15m, suggested range is 8m.
2.4 The installation height limitation is 2~3m, suggested height is 2.4m.
8m
5100401-51 MAY. 2021
2. Installation

4. Advance Settings

2.4m
www.MyLumens.com

3. One button for Auto-Tracking

3.1 Turn on the VC-TR1 camera.
3.2 Let a person stand 4-15 meters in front of the camera.
3.3 Press the remote "F1"button to start auto-tracking.
4. Advance Settings
4.1 Before setting up, please first press the F2 button on the remote control
to turn off the auto-tracking.
4.2 Start Lumens CMS software.
4.3 Wait for 5-7 seconds. The VC-TR1 will appear on the device list
-> Twice click on the device, you will see the live view instantly.
*Manually Add devices : Go to the device list. Click the Device Manager
and follow steps 1 to 5.
n
j
l
k
m
