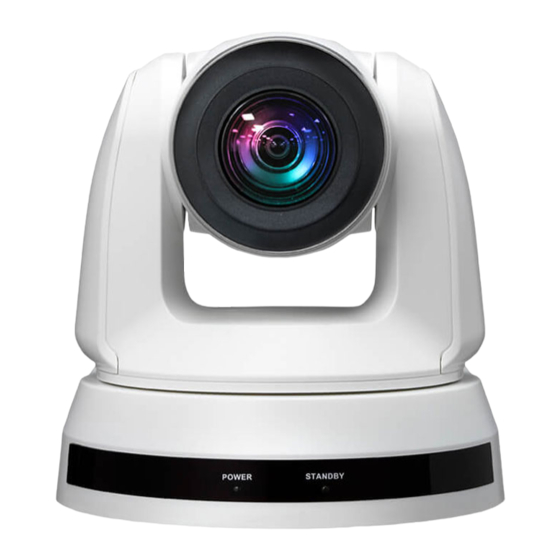

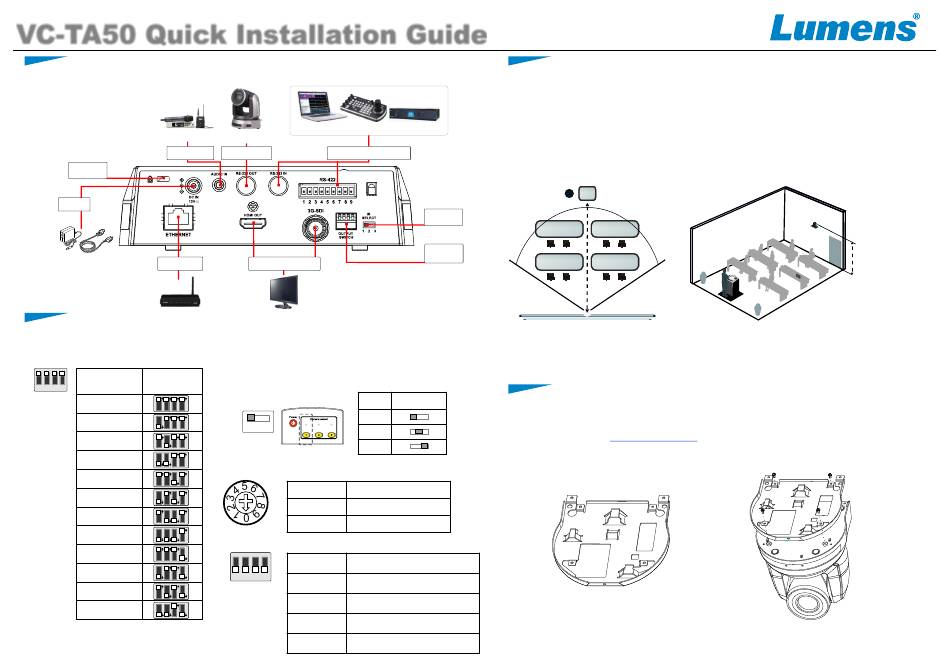

Lumens VC-TA50 Quick Installation Manual

VC-TA50 Quick Installation Guide

1. Connections

Microphone
Audio Input
Kensington
Lock Port
DC Input
LAN Port
Switch/ Router

2. SWITCH Settings

2.1 OUTPUT SWITCH

Off
Setting
Output Mode
On
1 2 3 4
1920x1080/60p
1920x1080/50p
1920x1080/30p
1920x1080/25p
1920x1080/60i
1920x1080/50i
1280x720/60p
1280x720/50p
1080/59.94p
1080/59.94i
1080/29.97p
720/59.94p
5100460-51 AUG. 2022
Controller
Camera (Serial
connection)
RS-232 Output RS-232/ RS-422 Input
HDMI/ 3G-SDI Output
Monitor

2.2 IR SELECT

Configure IR SELECT to control 3 cameras
using the remote controller
ID
1
1 2 3
2
3

2.3 Camera Address Selector

Setting Function Descriptions
0~7 ID 0~7
8~9 Reserved

2.4 System Switch

On
Setting Function Descriptions
Off
1 2 3 4
RS-232C/RS-422 selector
DIP 1
OFF: RS-232C
Infrared signal output switch
DIP 2
OFF: Off / ON : On
Communication baud rate selector
DIP 3
OFF: 9600
DIP 4 Reserved

3. Precautions for Installation

3.1 Use the provided DC 12V power cord or a PoE router or hub to
supply power via a network cable.
* VC-TA50 supports PoE+ (IEEE802.3at)
3.2 Tracking distance range: 4m-15m. Optimal tracking distance 8m.
3.3 Vertical mounting height: 2m-3m, Optimal installation height: 2.4m.
IR
Select
Output
Switch
* For best tracking results, avoid placing images of people on posters or screens
behind the subject.
Setting

4. Ceiling Installation

4.1 Please adjust the resolution on SWITCH prior to installation.

(Please refer to
4.2 Fix base plate A to the camera with 4x silver colored M3 screws
/ ON : RS-422
Base plate A
/ ON : 38400
www.MyLumens.com
8m
)
2. SWITCH Settings
Copyright © Lumens Digital Optics Inc. All rights reserved.
2.4m
.
