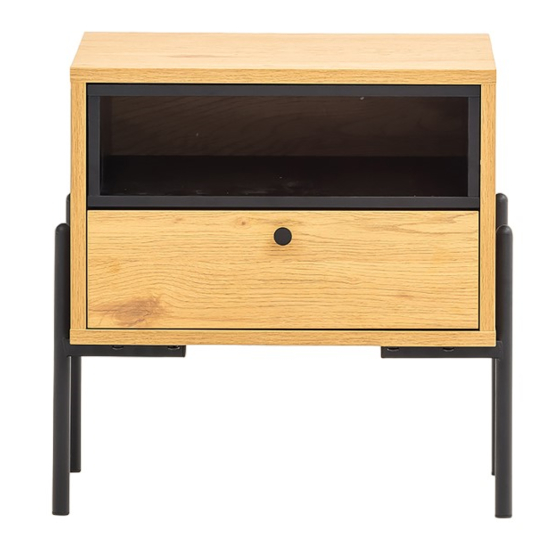

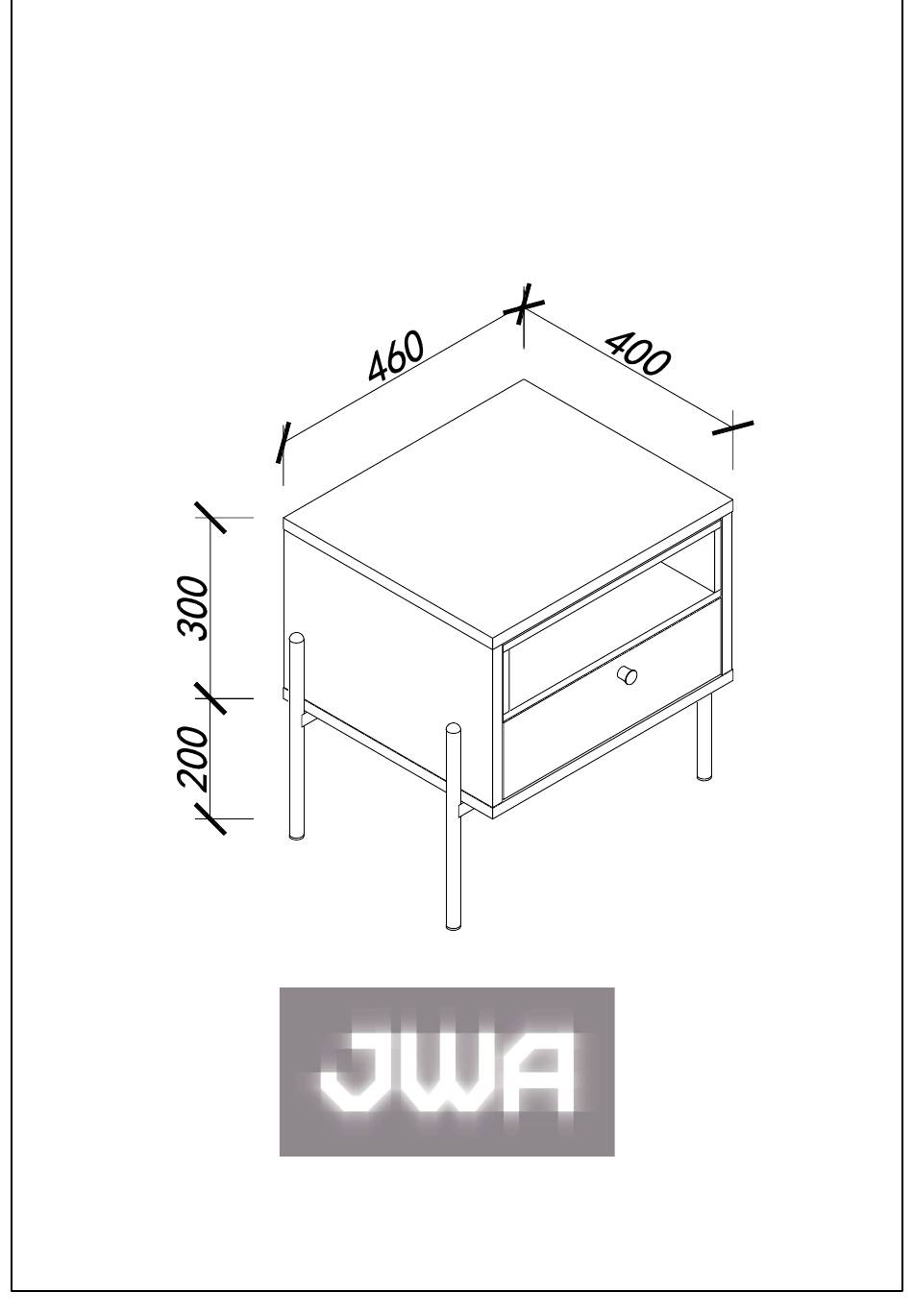

- Page 1 ASSEMBLY INSTRUCTION FOWLER BEDSIDE ITEM CODE 74686 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 12p cs 12p cs 12p cs 4p cs 1 pc M6x34mm M6x16mm 4pcs 8pcs 16pcs 1p cs Ø12x10.5 mm M3.5x12 16pcs 8pcs 8pcs 8pcs 16pcs... - Page 6 STEP 1: Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4). A=12 B=12...
- Page 7 STEP 2: Fix rails (N-1) to panel (3) (4) with screw (V1) . N-1 =2 V1=4 Back Front hole location...
- Page 8 STEP 3: Fix panel (3) (4) to panel (11) (12) with cam lock (C). STEP 4: Insert panel (1) (2) into hole in panel (3) (4) . Insert panel (5) into grooves between panel (1) (2) (3) (4).
- Page 9 STEP 5: Fix panel (1) (2) to panel (3) (4) with cam lock (C).
- Page 10 STEP 6: Fix metal leg (J-1) to bottom panel (2) with bolt (G1), lock washer (Z1), washer (Z2). Using allen key (H) to fix 100%, as shown. G1=16 Z2=16 Z1=16 G1=16...
- Page 11 STEP 7-1:Fix cam pin (O) to panel (6) (7) (8) (9). STEP 7-2: Fix panel (8) (9) to panel (7) with cam lock (P). Insert panel (10) into grooves between panel (6) (7) (8) (9). Fix panel (8) (9) to panel (6) with cam lock (P). STEP 7-3:Fix rails (N-2) to panel (8) (9) with screw (V1).
- Page 12 STEP 8: Adjust to proper position.
- Page 13 STEP 9: Fix panel (13) to panel (14) with screw (Q). STEP 10:Put the box into the bedside.
- Page 14 STEP 11:Insert the back panel hook (E) into the back and using screw to fix , as shown.
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 16 ASSEMBLY COMPLETE...
- Page 17 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
