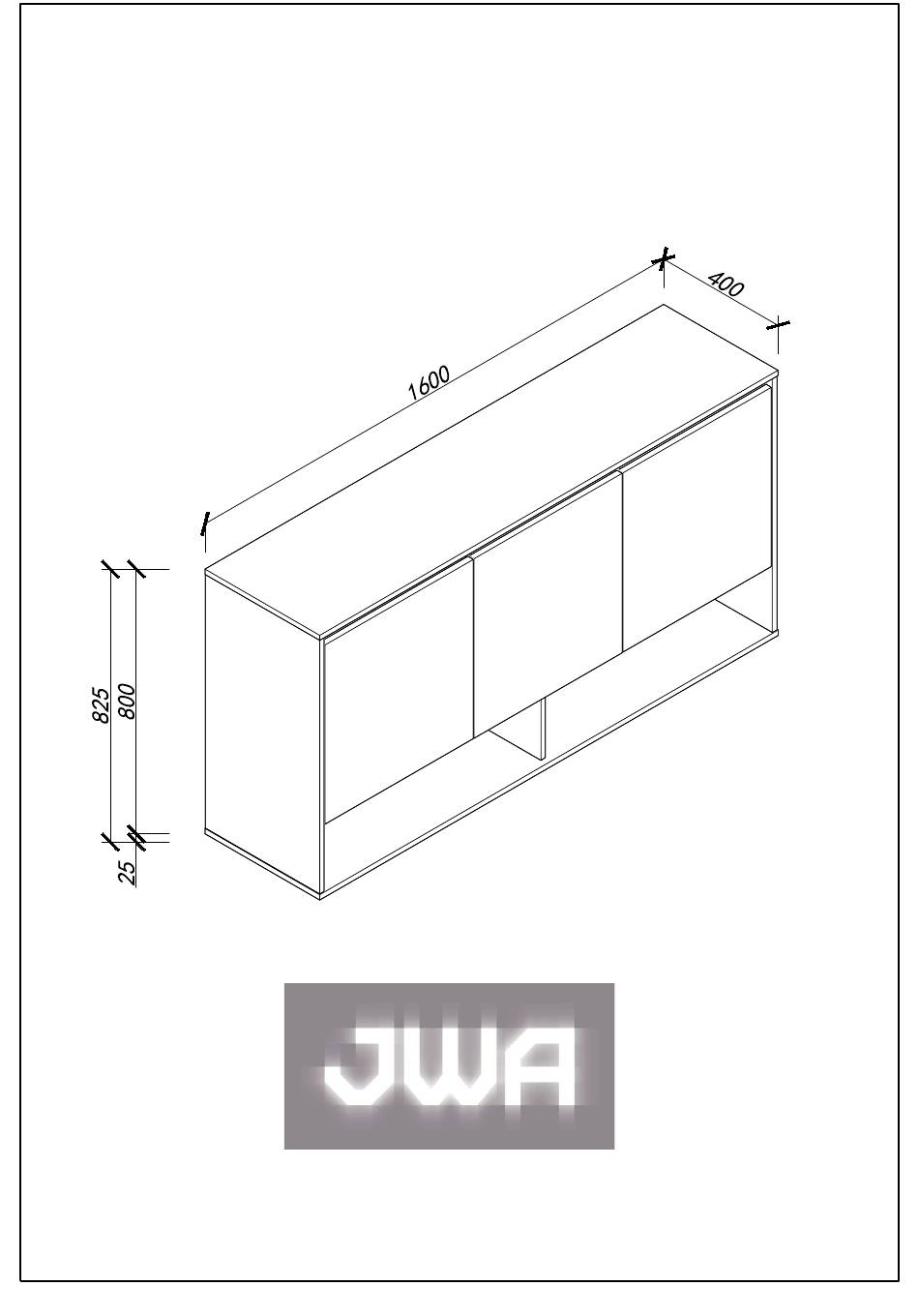

- Page 1 ASSEMBLY INSTRUCTION HARMON BUFFET ITEM CODE 74690 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 30p cs 30p cs 12pcs 30p cs 1 pc M7x50 I3=4pcs V2=24pcs 6pcs 12pcs V2=12pcs I2=2pcs M4x35 14pcs... - Page 6 STEP 1:Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4) (5) (6) (8). A=30...
- Page 7 STEP 2: Fix panel (5) (6) to panel (10) with cam lock (C). STEP 3: Fix panel (5) (6) to panel (8) with cam lock (C).
- Page 8 STEP 4: Fix panel (9) to panel(3) (4) (5) (6) with cam lock (C). Fix panel (3) (4) (7) to panel (8) with cam lock (C). STEP 5: Insert panel (13) (14) into grooves between panel (1) (3) (4) (5) (6) (8). Fix panel (1) to panel (3) (4) (5) (6) (9) (10) with cam lock (C).
- Page 9 STEP 6: Fix panel (2) to panel (3) (4) (7) with screw (Q). STEP 7: Fix panel (16) (17) (18) to panel (2) with screw (V3). V3=14...
- Page 10 STEP 8:Insert the shelf support (L) into the panel (3) (4) (5) (6), as shown. L=12 STEP 9:Put the panel (11) (12) on the shelf support.
- Page 11 STEP 10: Attach hinge (I2) to panel (15B) with screw (V2).Attach hinge (I3) to panel (15A) with screw (V2). I2=2 I3=4...
- Page 12 STEP 11:Fix door panel (15A) to panel (3) (4) with screw (V2). Fix door panel (15B) to panel (5) with screw (V2).
- Page 13 STEP 12: Adjust to proper position.
- Page 14 STEP 13:Insert the back panel hook (E) into the back and using screw to fix , as shown. E=12...
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 16 ASSEMBLY COMPLETE...
