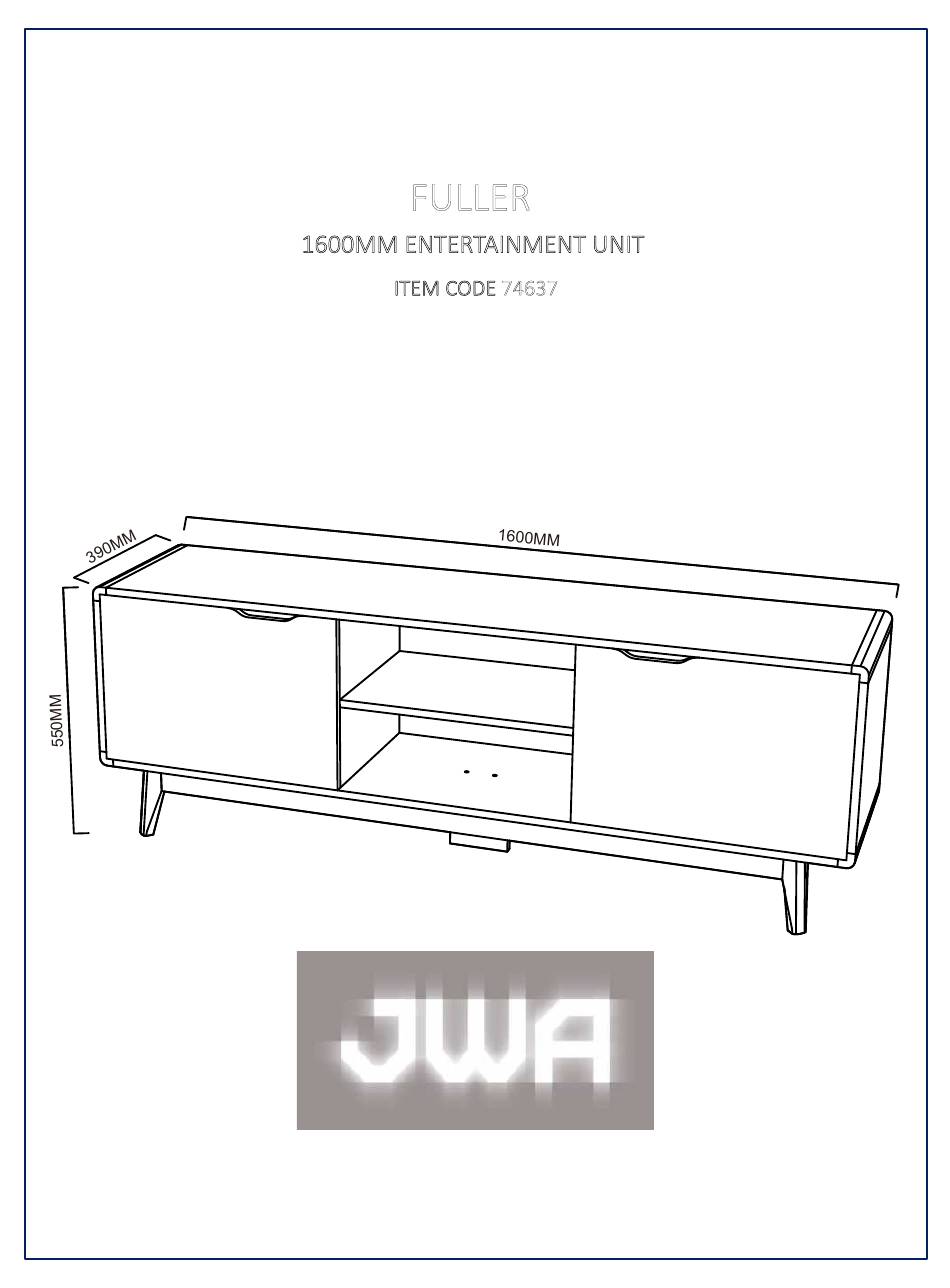

- Page 1 ASSEMBLY INSTRUCTION FULLER 1600MM ENTERTAINMENT UNIT ITEM CODE 74637 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST ITEM QTY NO. ITEM 28PCS 24PCS Φ6*35 Φ4*14 4PCS 28PCS Φ15*10 2PCS 36PCS Φ8*30 8PCS Φ6*60 16PCS 8PCS Φ4*50 10PCS 8PCS Φ3*16 10PCS 16PCS Φ4*25 ITEM QTY NO. ITEM TOP PANEL 1 PC 1 PC LEFT DOOR PANEL 1 PC 1 PC LEFT SIDE PANEL...
- Page 5 STEP 1: STEP 2:...
- Page 6 STEP 3: STEP 4:...
- Page 7 STEP 5: STEP 6:...
- Page 8 STEP 7: STEP 8:...
- Page 9 STEP 9: STEP 10:...
- Page 10 STEP 11: STEP 12:...
- Page 11 STEP 13: STEP 14:...
- Page 12 STEP 15: STEP 16:...
- Page 13 STEP 17: STEP 18: WALL...
- Page 14 ASSEMBLY IS COMPLETE CAUTION：Always Lift Your 1600mm Entertainment Unit When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break.
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 16 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
