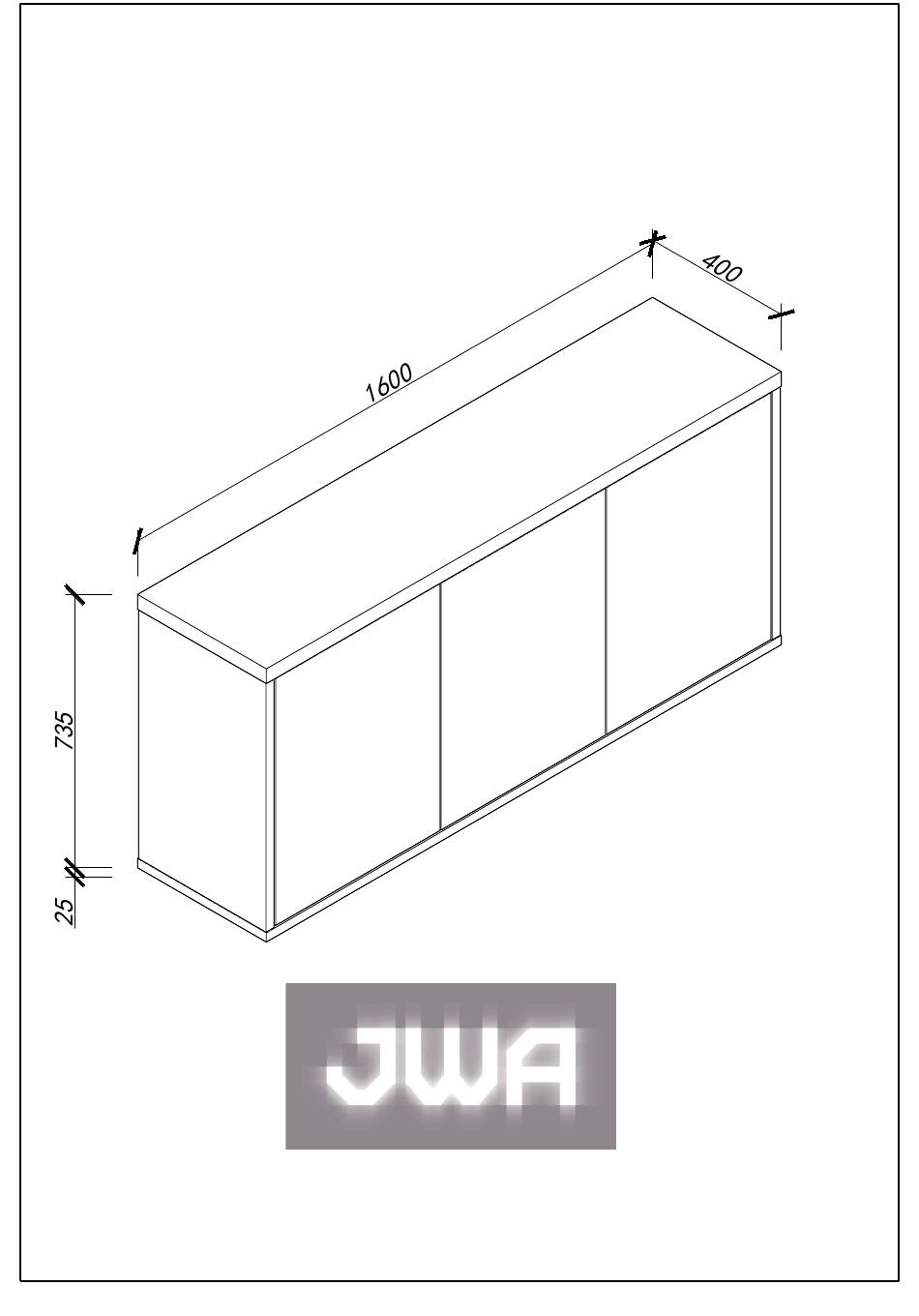

- Page 1 ASSEMBLY INSTRUCTION FARRELL 3 DOORS BUFFET ITEM CODE 74682 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 16p cs 16p cs 16p cs 12p c s 1 pc V2=24pcs I3=4pcs 12pcs 3pcs M4*40 V3=14pcs V2=12pcs I2=2pcs... - Page 6 STEP 1: Fix dowel (B) and cam pin (A) to panel (1) (2) . B=16 A=16 STEP 2: Insert panel (1) (2) into hole in panel (3) (4) (5) . Insert panel (8) (9) into grooves between panel (3) (4) (5)
- Page 7 STEP 3: Fix panel (1) (2) to panel (3) (4) (5) with cam lock (C). C=16 STEP 4: Fix panel (12) (13) (14) to panel (2) with screw (V3). V3=14...
- Page 8 STEP 5:Attach rebound device (K-1) to panel (1) with screw. K-1=3 STEP 6:Insert the shelf support (L) into the panel (3) (4) (5),as shown. L=12...
- Page 9 STEP 7:Put the panel (6) (7) on the shelf support. STEP 8: Attach hinge (I2) to panel (10B) with screw (V2).Attach hinge (I3) to panel (10A) (11) with screw (V2). Attach round steel sheet (K-2) to panel (10A) (10B) (11) with screw.
- Page 10 STEP 9:Fix door panel (10A) (10B) (11) to panel (3) (4) with screw (V2).
- Page 11 STEP 10: Adjust to proper position.
- Page 12 STEP 11:Insert the back panel hook (E) into the back and using screw to fix , as shown. E=12...
- Page 13 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 14 ASSEMBLY COMPLETE...
- Page 15 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
