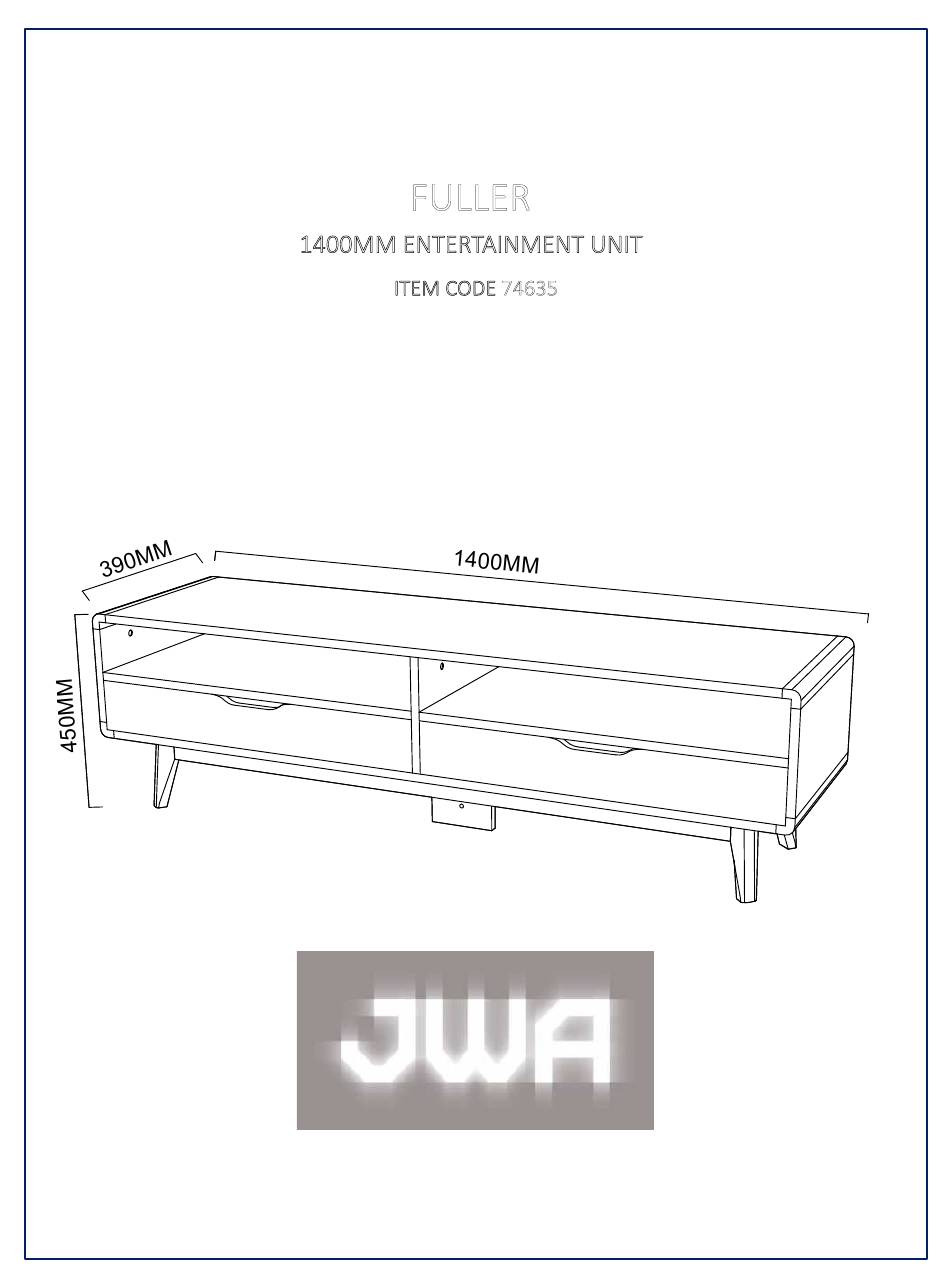

- Page 1 ASSEMBLY INSTRUCTION FULLER 1400MM ENTERTAINMENT UNIT ITEM CODE 74635 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST 11 11... - Page 4 PARTS LIST ITEM QTY NO. ITEM 34PCS 2PCS Φ6*35 2PCS 38PCS Φ15*10 2PCS 40PCS Φ8*30 2PCS 22PCS 16PCS Φ3*12 Φ4*50 10PCS 2PCS Φ4*30 8PCS 16PCS Φ6*60 Φ3*16 16PCS 8PCS 8PCS 16PCS Φ4*25 2PCS Φ6*68...
- Page 5 PARTS LIST ITEM QTY NO. ITEM TOP PANEL 1 PC 1 PC BOTTOM SUPPORT PANEL 1 PC LEFT SIDE PANEL 1 PC BOTTOM SUPPORT PANEL 1 PC 2 PCE RIGHT SIDE PANEL DRAWER FRONT PANEL 2 PCE 1 PC DRAWER LEFT SIDE PANEL SUPPORT PANEL 2 PCE 2 PCE...
- Page 6 STEP 1: STEP 2:...
- Page 7 STEP 3: STEP 4:...
- Page 8 STEP 5: STEP 6:...
- Page 9 STEP 7: STEP 8:...
- Page 10 STEP 9: STEP 10:...
- Page 11 STEP 11: STEP 12:...
- Page 12 STEP 13: STEP 14:...
- Page 13 STEP 15: STEP 16:...
- Page 14 STEP 17: STEP 18:...
- Page 15 STEP 19: STEP 20:...
- Page 16 STEP 21: WALL ASSEMBLY IS COMPLETE CAUTION：Always Lift Your 1400mm Entertainment Unit When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break.
- Page 17 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 18 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
