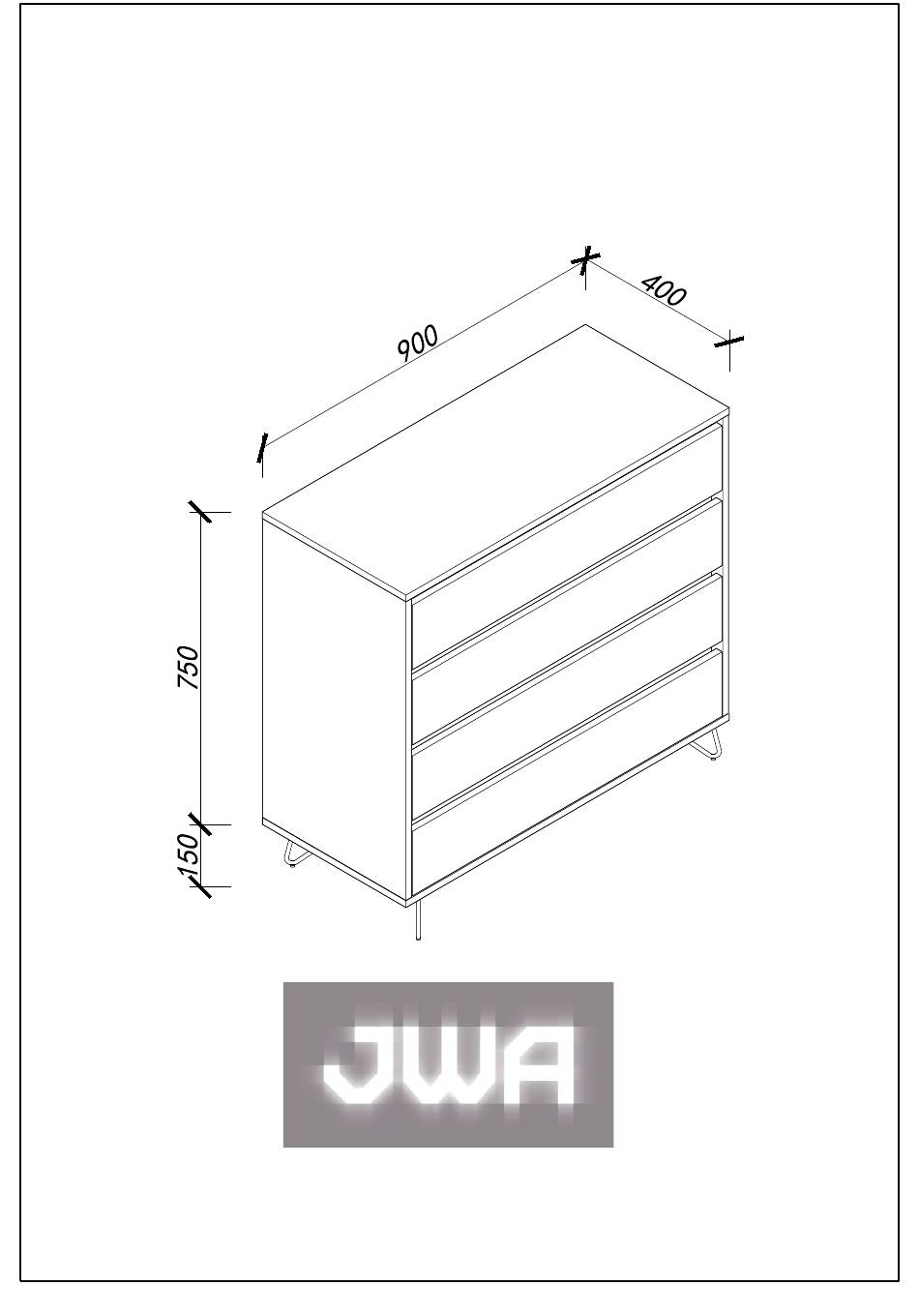

- Page 1 ASSEMBLY INSTRUCTION JARV IS 4 Drawer Tall Chest ITEM CODE 74675 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 21p cs 21p cs 8p cs 16p cs 1 pc M6x15mm M6x34mm 16p cs 40pcs 4pcs 4p cs M3.5x12 Ø12x10.5 mm 16p cs 48pcs 16p cs 40p cs... - Page 6 STEP 1: Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4).
- Page 7 STEP 2: Fix rails (N-1) to panel (3) (4) with screw (V1) . N-1=8...
- Page 8 STEP 3: Fix panel (5) (7) (8) to panel (3) (4) with cam lock (C)
- Page 9 STEP 4: Insert panel (6) into grooves between panel (1) (2) (3) (4) (5).
- Page 10 STEP 5: Fix panel (1) (2) to panel (3) (4) with cam lock (C) .
- Page 11 STEP 6: Fix metal leg (J) to bottom panel (2) with bolt (G) , lock washer (Z1), washer (Z2). Using allen key ( ) to fix 100% as shown.
- Page 12 STEP 7-1:Fix cam pin (O) to panel (9) (10) (12) (13). STEP 7-2: Fix panel (11) (12) (13) to panel (10) with cam lock (P). Insert panel (14) into grooves between panel (9) (10) (12) (13). Fix panel (11) (12) (13) to panel (9) with cam lock (P). STEP 7-3:Fix rails (N-2) to panel (12) (13) with screw (V1)
- Page 13 STEP 8: Adjust to proper position.
- Page 14 STEP 9:Insert the back panel hook (E) into the back and using screw to fix , as shown.
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 16 ASSEMBLY COMPLETE...
