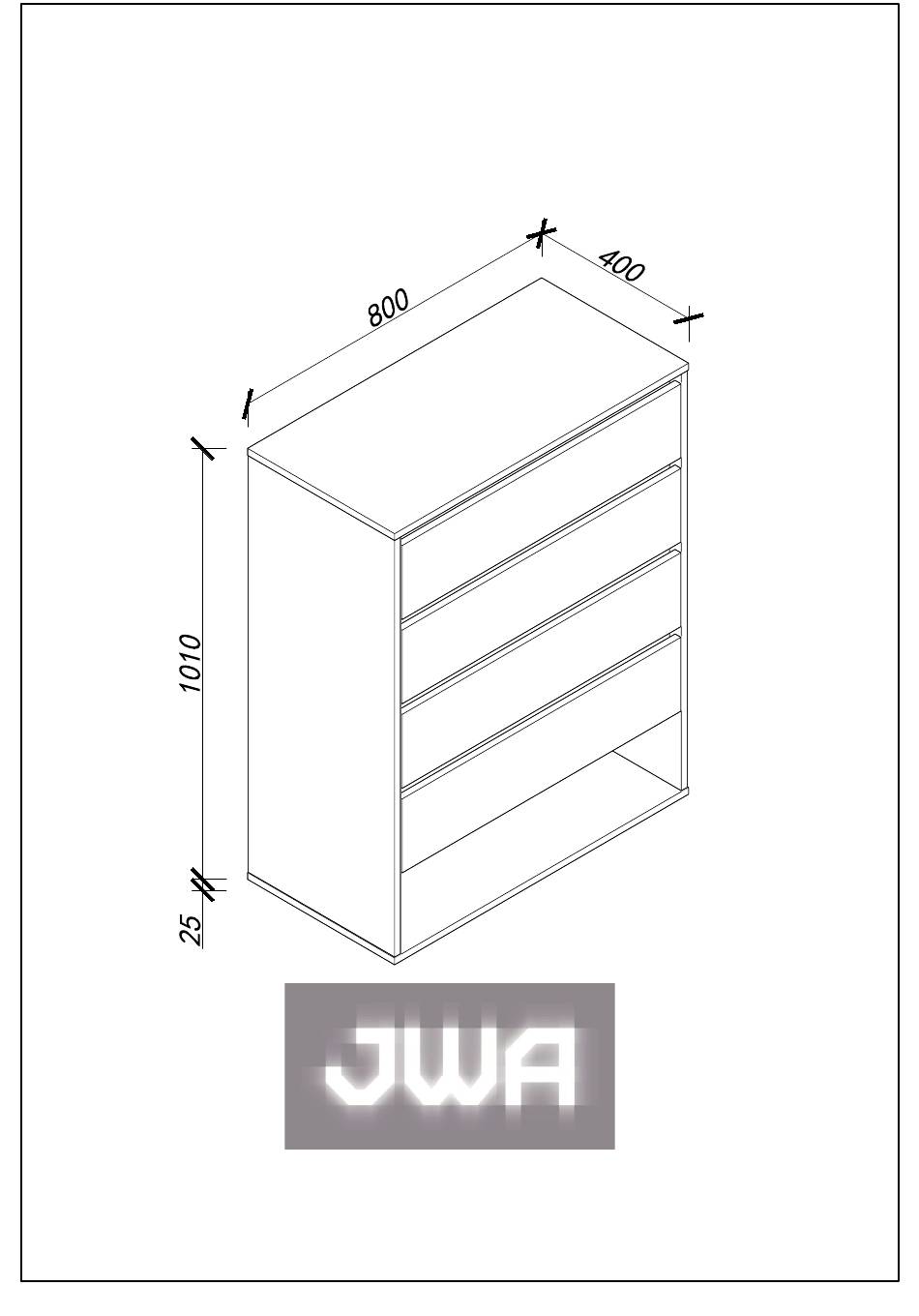

- Page 1 ASSEMBLY INSTRUCTION HARMON 4 DRAWER TALL CHEST ITEM CODE 74688 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 12pcs 21p cs 20p cs 21p cs 1 pc M7x50 Ø12x10.5 mm M6x34mm 4pcs 4pcs 40pcs 40pcs M4x35 M3.5x12 12pcs 32pcs... - Page 6 STEP 1: Fix rails (N-1) to panel (3) (4) with screw (V1) . N-1=8 V1=16 hole location...
- Page 7 STEP 2:Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4) (5) A=21...
- Page 8 STEP 3: Fix panel (5) (6) (7) to panel (3) (4) with cam lock (C).
- Page 9 STEP 4: Fix panel (8) to panel (5) with cam lock (C). Insert panel (9) into grooves between panel (3) (4) (5) (8) Fix panel (1) to panel (3) (4) (6) (8) with cam lock (C).
- Page 10 STEP 5: Fix panel (2) to panel (3) (4) with screw (Q).
- Page 11 STEP 6: Fix panel (16) (17) to panel (2) with screw (V3). V3=12...
- Page 12 STEP 7-1:Fix cam pin (O) to panel (10) (11) (13) (14). 0=10 STEP 7-2: Fix panel (12) (13) (14) to panel (11) with cam lock (P). Insert panel (15) into grooves between panel (10) (11) (13) (14). Fix panel (12) (13) (14) to panel (10) with cam lock (P). P=10 STEP 7-3:Fix rails (N-2) to panel (13) (14) with screw (V1) N-2=2...
- Page 13 STEP 8: Adjust to proper position.
- Page 14 STEP 9:Insert the back panel hook (E) into the back and using screw to fix , as shown.
- Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 16 ASSEMBLY COMPLETE...
