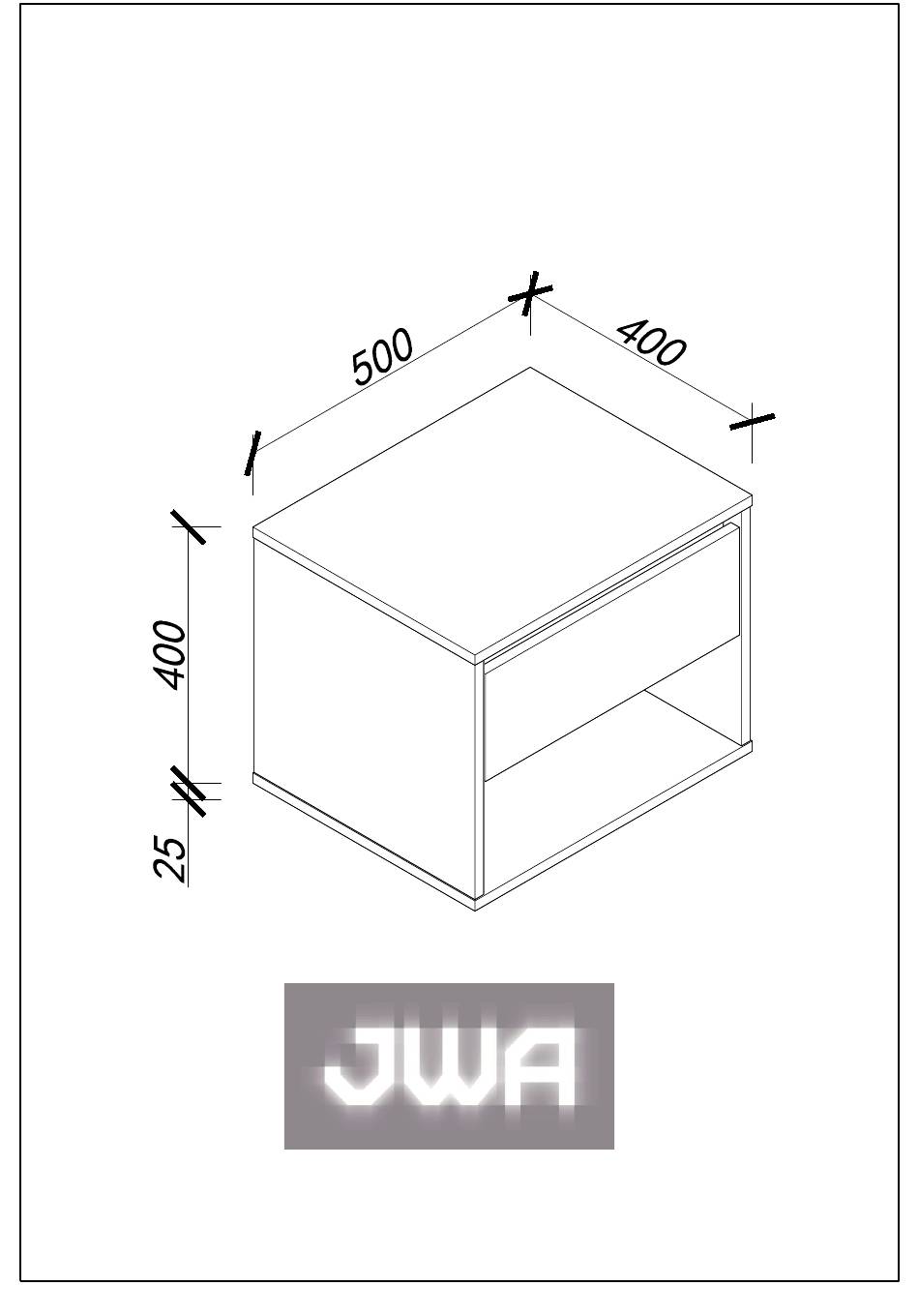

- Page 1 ASSEMBLY INSTRUCTION HARMON BEDSIDE ITEM CODE 74687 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 4: Parts List
PARTS LIST Ø15x12mm M6x40mm 8x30mm 4p cs 11p cs 12p cs 11p cs 1 pc Ø12x10.5 mm M7x50 M6x34mm 4pcs 1pcs 8pcs 8pcs M3.5x12 M4x35 8pcs 8pcs... - Page 6 STEP 1: Fix rails (N-1) to panel (3) (4) with screw (V1) . N-1=2 V1=4 hole location...
- Page 7 STEP 2:Fix dowel (B) and cam pin (A) to panel (1) (2) (3) (4). A=11...
- Page 8 STEP 3: Fix panel (3) (4) to panel (5) (6) with cam lock (C). STEP 4: Insert panel (7) into grooves between panel (1) (3) (4) (5) Fix panel (1) to panel (3) (4) (6) with cam lock (C).
- Page 9 STEP 5: Fix panel (2) to panel (3) (4) with screw (Q). STEP 6: Fix panel (13) (14) to panel (2) with screw (V3). V3=8...
- Page 10 STEP 7-1:Fix cam pin (O) to panel (8) (9) (10) (11). STEP 7-2: Fix panel (9) to panel (10) (11) with cam lock (P). Insert panel (12) into grooves between panel (8) (9) (10) (11). Fix panel (10) (11) to panel (8) with cam lock (P). STEP 7-3:Fix rails (N-2) to panel (10) (11) with screw (V1) N-2=2 V1=4...
- Page 11 STEP 8: Adjust to proper position.
- Page 12 STEP 9:Insert the back panel hook (E) into the back and using screw to fix , as shown.
- Page 13 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 14 ASSEMBLY COMPLETE...
- Page 15 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
