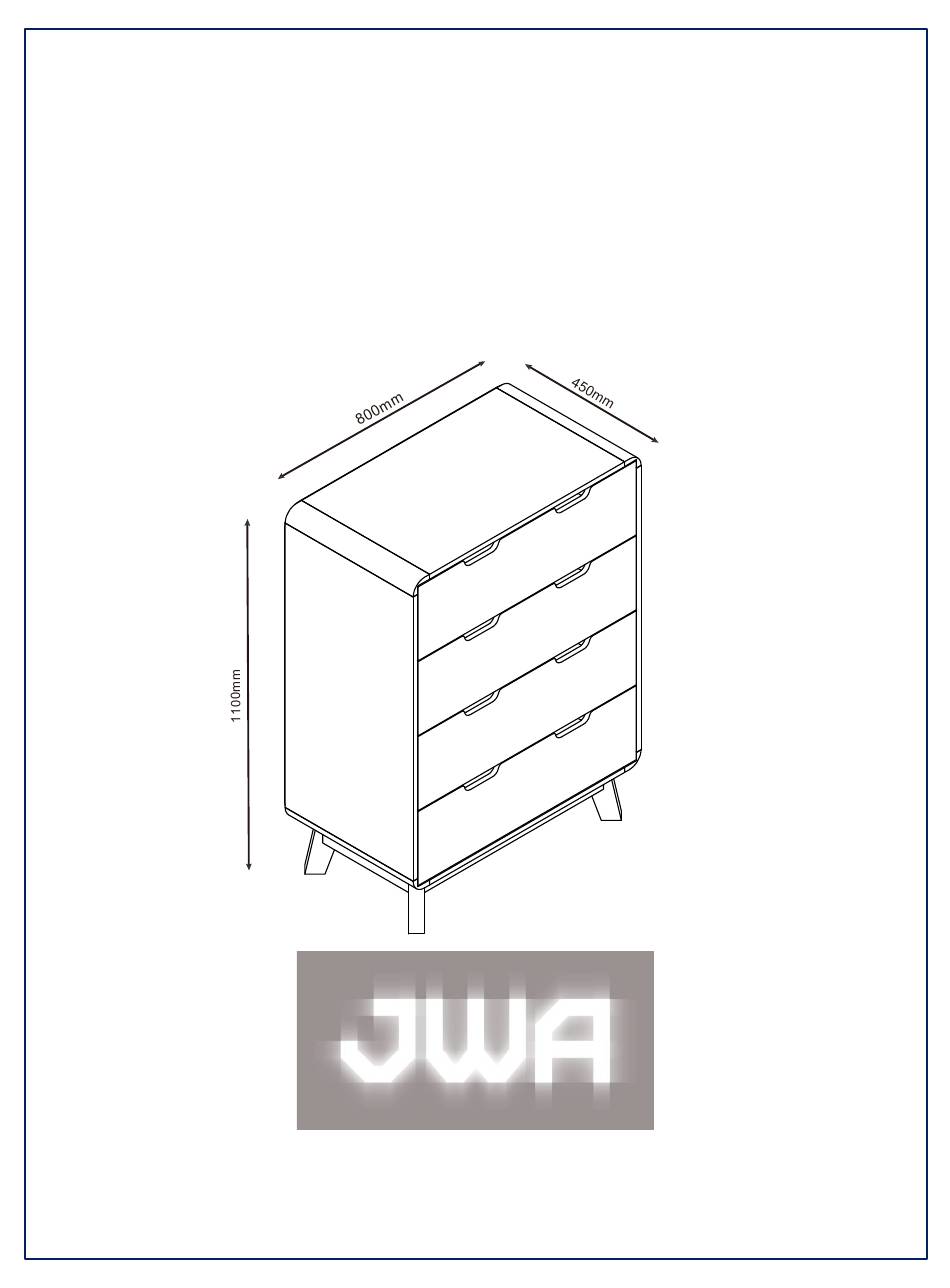

- Page 1 ASSEMBLY INSTRUCTION FULLER 4 DRAWER TALL CHEST ITEM CODE 74631 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Before You Start
PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when li�ing. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instruc�ons carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST... - Page 4 PARTS LIST ITEM ITEM 2PCS 46PCS Φ6*35 46PCS 8PCS Φ15*10 16PCS 30PCS Φ8*30 Φ4*20 20PCS 12PCS Φ4*50 Φ4*35 8PCS 4PCS Φ6*60 4PCS 8PCS 4PCS 8PCS 4PCS 48PCS Φ3*12 ITEM QTY NO. ITEM DRAWER LEFT TOP PANEL 1 PC 4 PCS PANEL DRAWER RIGHT 1 PC...
- Page 5 STEP 1: 24xI 4xCL 4xCR STEP 2:...
- Page 6 STEP 3: STEP 4: 16xA...
- Page 7 STEP 5: STEP 6:...
- Page 8 STEP 7: STEP 8:...
- Page 9 STEP 9: STEP 10: 12xD...
- Page 10 STEP 16xM STEP 12: E F G...
- Page 11 STEP 13: STEP 14: WALL...
- Page 12 STEP 15: 20xA 20xB STEP 20xN...
- Page 13 STEP 17: 24xI 4xDL 4xDR STEP 18: ASSEMBLY IS COMPLETE Always Lift Your 4 Drawer Tall Chest When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break.
- Page 14 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
