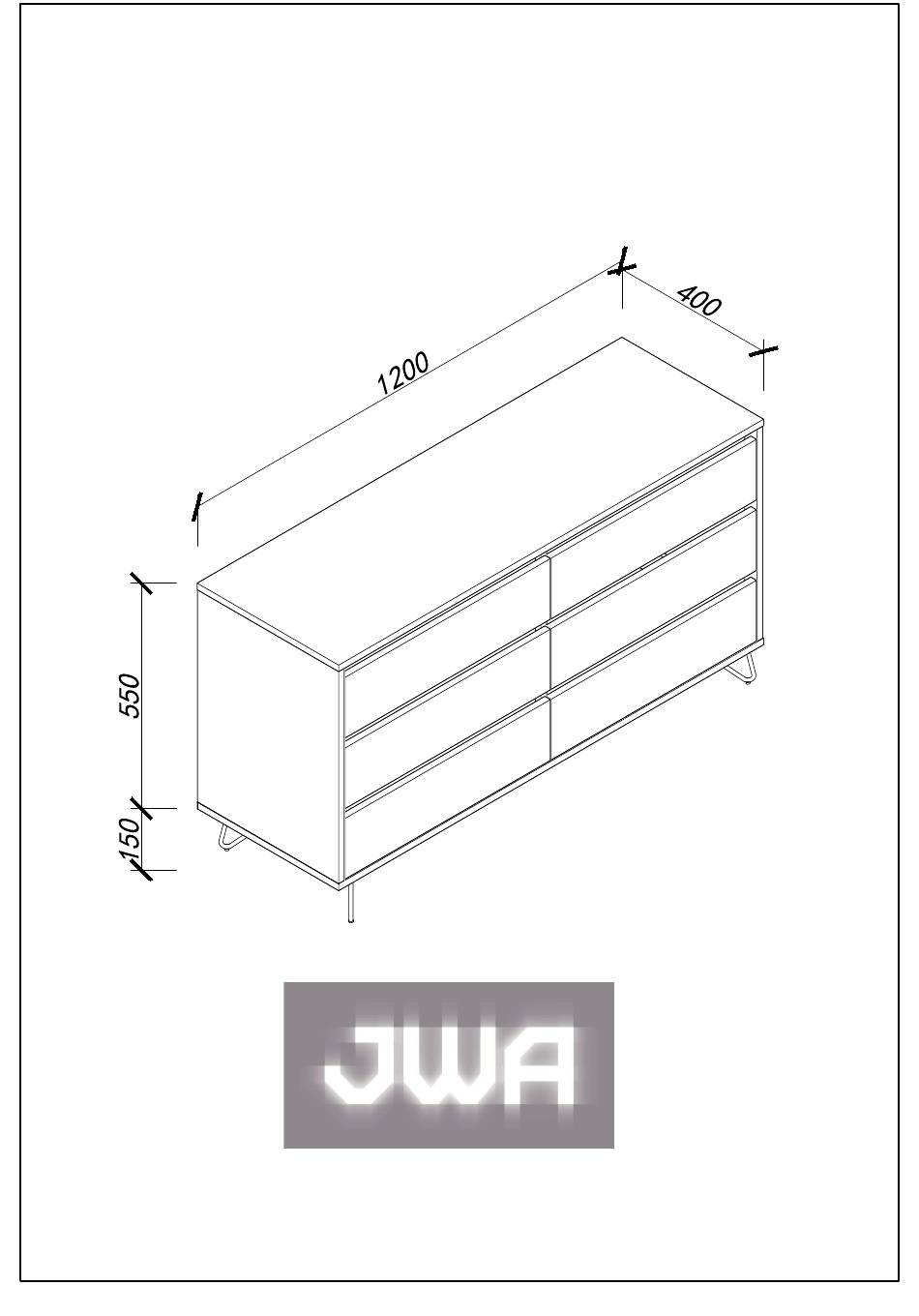

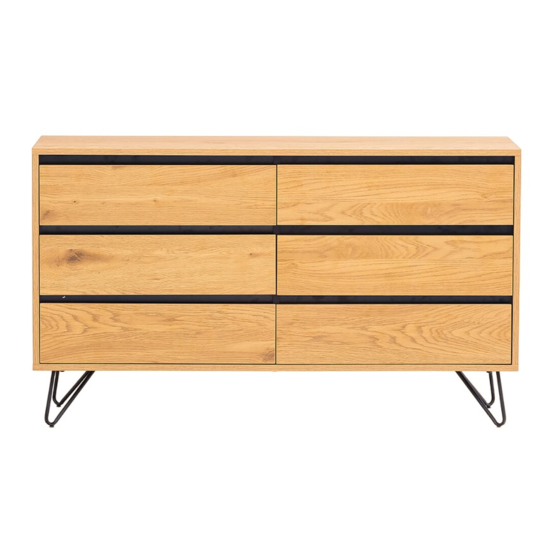

ASSEMBLY INSTRUCTION
JARV IS 6 Drawer Dresser
ITEM CODE 74674
Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JARVIS 74674 and is the answer not in the manual?

Questions and answers

Related Manuals for JWA JARVIS 74674

Summary of Contents for JWA JARVIS 74674

  • Page 1 ASSEMBLY INSTRUCTION JARV IS 6 Drawer Dresser ITEM CODE 74674 Imported by JWA Furniture Pty Ltd, Brisbane Qld, Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 4: Parts List

    PARTS LIST Ø15x12mm M6x40mm 8x30mm 27p cs 27p cs 18p cs 16p c s 1 pc M6x15mm 20p cs 4pcs 6p cs Ø12x10.5 mm M3.5x12 M6x34mm 57pcs 72pcs 20p cs 57p cs 20p cs...
  • Page 6 STEP 1: Fix cam pin (A) to panel (1) (2) (3) (4) (5). Fix dowel (B) to panel (1) (2) (3) (4). Fix cam pin (O) to panel (5).
  • Page 7 STEP 2: Fix rails (N-1) to panel (3) (4) (5) with screw (V1) . N-1=12...
  • Page 8 STEP 3: Fix panel (13) (14) (15) (16) to panel (5) with cam lock (P). Fix panel (13) (14) (15) (16) (17) (18) to panel (3) (4) (5) with cam lock (C).
  • Page 9 STEP 4: Insert panel (6) into grooves between panel (1) (2) (3) (4) (5) (17) (18).
  • Page 10 STEP 5: Fix panel (1) (2) to panel (3) (4) (5) with cam lock (C) .
  • Page 11 STEP 6: Fix metal leg (J-1) (J-2) to bottom panel (2) with bolt (G) , lock washer (Z1), washer (Z2). Using allen key ( ) to fix 100% as shown.
  • Page 12 STEP 7-1:Fix cam pin (O) to panel (7) (8) (9) (10) (11). STEP 7-2: Fix panel (9) to panel (10) (11) with cam lock (P). Insert panel (12) into grooves between panel (9) (10) (11) (12). Fix panel (10) (11) to panel (7) / (8) with cam lock (P). STEP 7-3:Fix rails (N-2) to panel (10) (11) with screw (V1)
  • Page 13 STEP 8: Adjust to proper position.
  • Page 14 STEP 9:Insert the back panel hook (E) into the back and using screw to fix , as shown.
  • Page 15 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
  • Page 16 ASSEMBLY COMPLETE...
  • Page 17 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
