Summary of Contents for jbc HM245

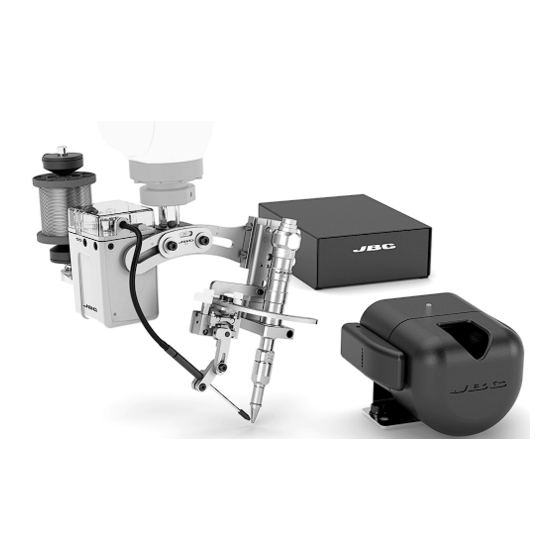

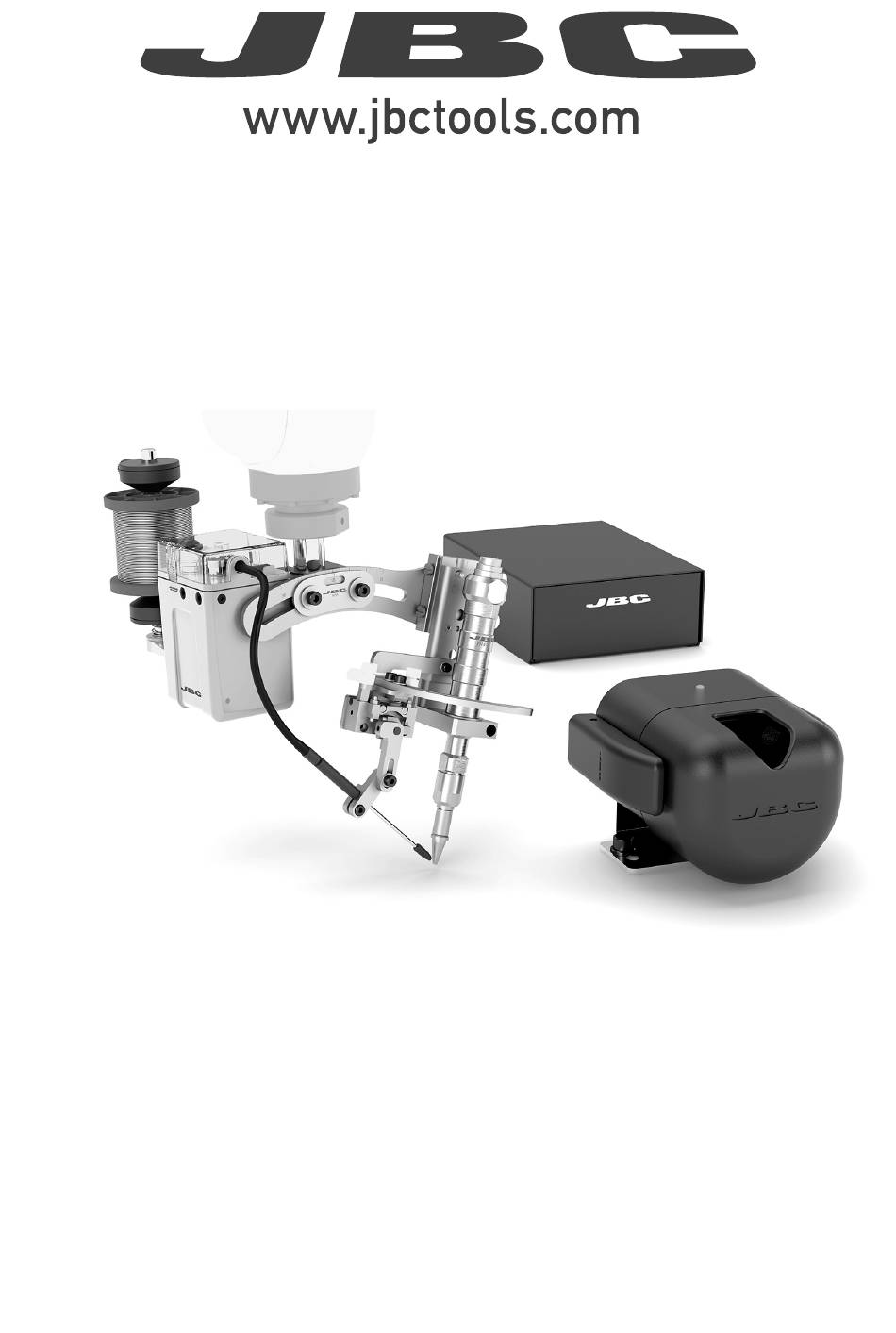

- Page 1 INSTRUCTION MANUAL HM245 / HM470 General / Heavy Duty Soldering Set for Robot...
- Page 2 This manual corresponds to the following references: - HM245-5A - HM470-5A works with R245 cartridges works with R470 cartridges Packing List Either one or the other item are included according purchased reference: UCR245 General Control Unit UCR470 Heavy Duty Control Unit for Robot .............
- Page 3 w w w.jbctools.com Connections PLC / Robot GSFR not included Compressed Air CLRP Connections: RS 232 Comunication Air Tube 100-240 V AC Further information can be found in the instruction manuals for the individual products, which are contained in the respective product box. For SFR download the Robot Communication Protocol at www.jbctools.com/jbcsoftware.html Different Guide Kits GSFR, with and without solder wire perforation, are available at www.jbctools.com...
- Page 4 (L x W x H) 21.46 x 13.58 x 10.83 in / 13.23 lb Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
