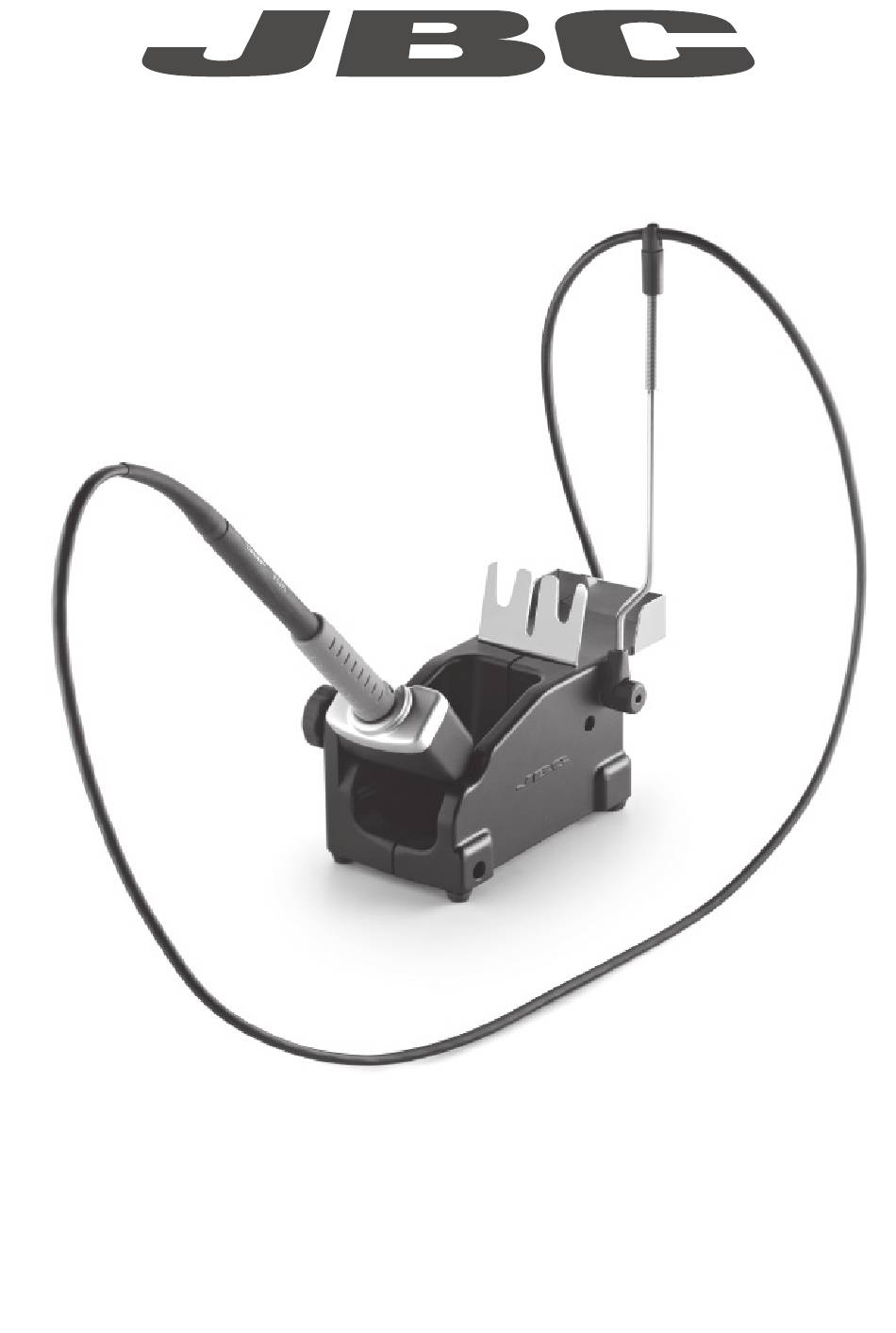

- Page 1 INSTRUCTION MANUAL Stands for HD Handles and Tweezers Ref. HD-SE / HDT-SD...
- Page 2 Packing List Stand ..........1 unit Stand ..........1 unit Ref. HD-SE Ref. HDT-SE Includes: Cable flange (Ref.0010546) The following items should be included in each stand: Stand cable 1m ....... 2 units Manual..........1 unit Ref. 0011283 Ref: 0021657 w w w.jbctools.com INSTRUCTION MANUAL Stands for HD Handles and Tweezers...
- Page 3 www.jbctools.com Features Stand Ref. HD-SE To HDE Control Unit using the Stand Cable To T470 Handles The HDT-SE Stand requires two Heavy Duty stations (HDE) to manage the C470 cartridges individually thereby optimizing their thermal performance. Stand Ref. HDT-SE To HDE Control Unit To HD470 To HDE Control Unit Thermal Tweezers...
- Page 4 Cartridge Extractor Follow these steps once you have loosened the handpiece screw. 1. Remove the cartridges using the extractor. Follow the ”Placing cartridges” guidelines. Handpiece screw Make sure the cartridges have cooled down before replacing them. 2. You can also use the extractor to insert the cartridges and align them. Handpiece screw Tighten the screws for a correct use.
- Page 5 www.jbctools.com Assembly of Cable Collector and Adjustable Tool Holder Assembly for HD-SE. Assembly for HDT-SE. Cable holder Ref. 0010546...
- Page 6 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stands for any purpose other than soldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 7 - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. Accessories Stand extension cable Ref.
-
Page 8: Specifications
342 x 155 x 120 mm (13.46 x 6.10 x 4.72 in) Complies with CE standards ESD protected Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
