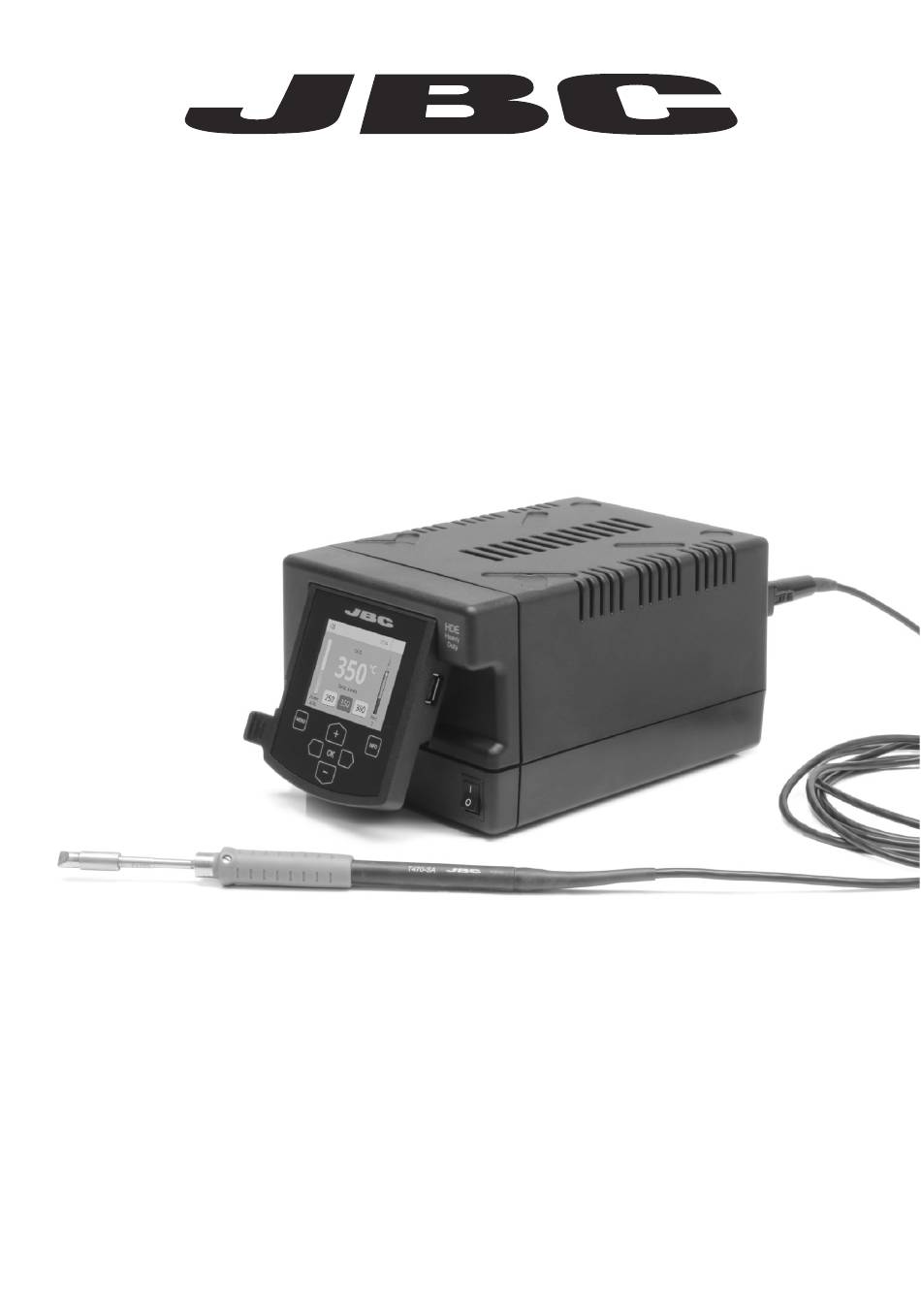

- Page 1 www.jbctools.com English HDE-A Robot station Ref. HDRE-A...
-
Page 2: Packing List
Packing List The following items should be included: General purpose HD Handle HDE Control Unit ..........1 unit with 3m cable ........1 unit Ref. HDE-1A (120V) Ref. T470-SA HDE-2A (230V) HDE-9A (100V) Converter ......1 unit Power cord ......1 unit Manual ......1 unit Ref. - Page 3 w w w.jbctools.com Features USB-A connector 2.8” Color TFT screen with capacitive keyboard Tilt the display for easy reading Working with Robots Manage and monitor the station using a Robotic system. 1. Connect the tool to the station port by means of the Converter. 2.
- Page 4 Compatible Soldering Iron Handles JBC offers a wide range of handles and grips to choose from. T470: Handles for Heavy Duty Use C470 Cartridge range For intensive soldering jobs requiring continued high thermal power. They feature a non-slip-grip with a good thermal insulation and a screw which fixes the cartridge and prevents rotation.
-
Page 5: Compatible Cartridges
w w w.jbctools.com Changing and fixing the cartridges Before changing the cartridge, be sure that the tip is cold. Once the cartridge is properly inserted we recommend tightening the screw to prevent moving. *Important: It is essential to insert the cartridges as far as the mark for a good connection. Mark Compatible Cartridges The HDRE-A works with C470 cartridges and T470 Handles. -
Page 6: Work Screen
Work Screen The HDE-A offers an intuitive user interface which provides quick access to the station parameters. Status Bar 17:14 Tool T470 connected ºC Power Temp. Levels indicator Power Port Displayed if temperature levels are Station activated MENU INFO Information Change port Menu Options... -
Page 7: Process Analysis
w w w.jbctools.com Process analysis By pressing Graphics in the main MENU, temperature and power responses in real time are displayed for each port. This helps you decide which the proper tip is for every soldering job and the quality of the solder joint. Graphics 17:14 Power (%) - Page 8 Soldering Net Remotely manage and monitor as many stations as your Windows PC can handle. 1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html 2. Connect the stations via USB-B connector and the PC will automatically detect them.
-
Page 9: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 11: Exploded View
w w w.jbctools.com Exploded View... -
Page 12: Specifications
- RJ12 connector for Robot Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
