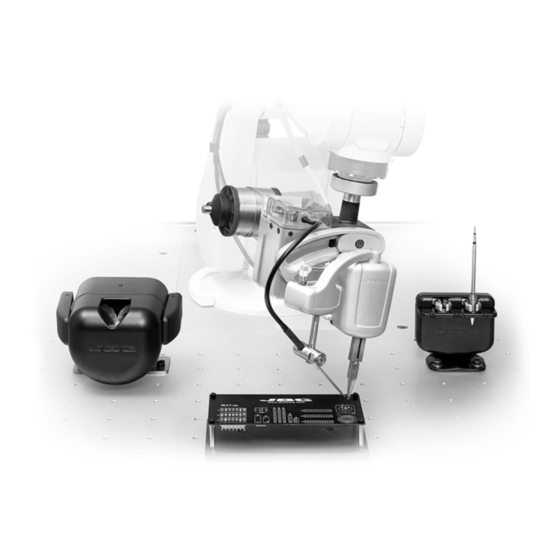

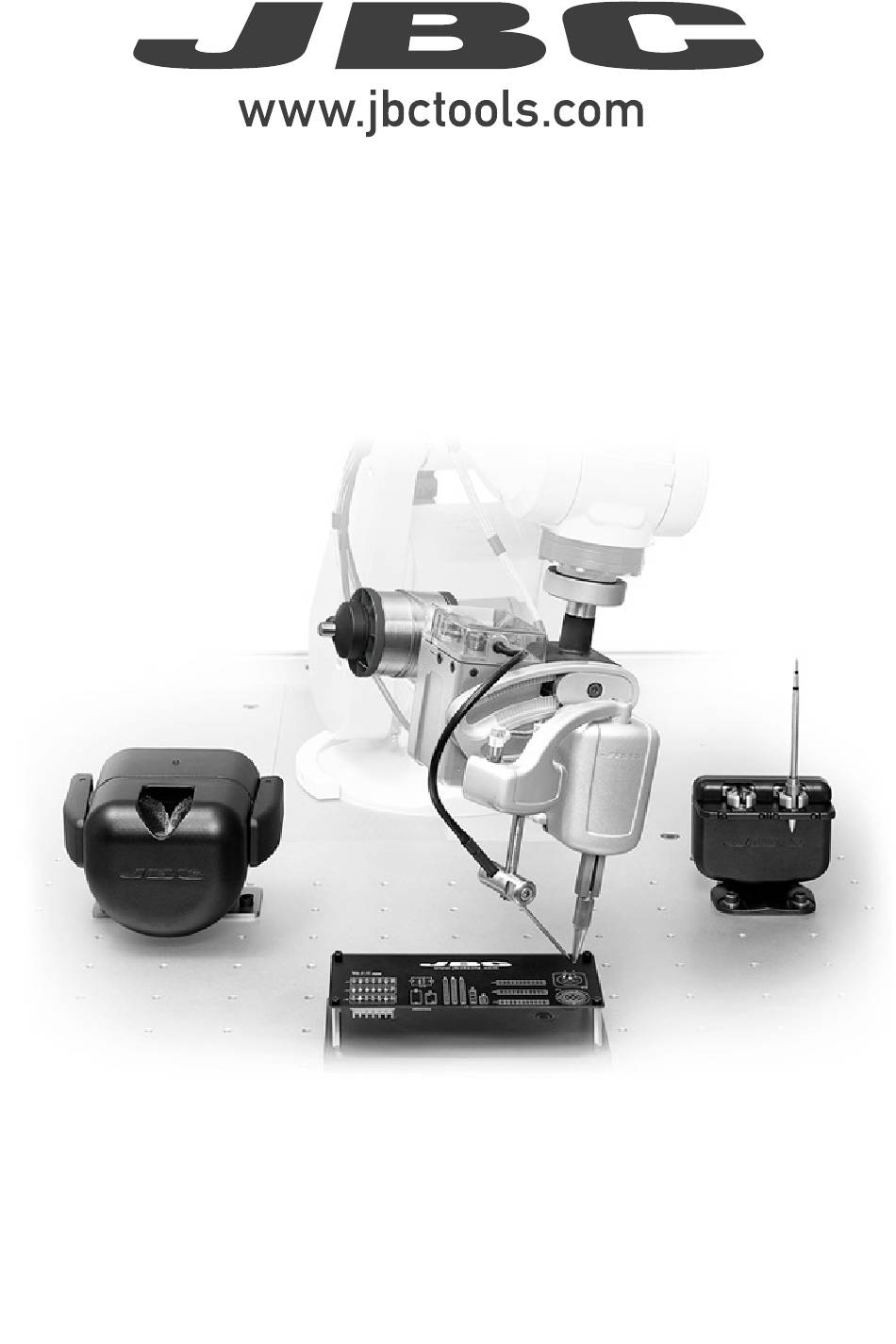

- Page 1 INSTRUCTION MANUAL Soldering Unit for Robot...
-
Page 2: Packing List
This manual corresponds to the following references: - HA245A-5B works with R245 cartridges - HA470A-5B works with R470 cartridges GSFR* *not included, sold separately Packing List Either Ref. TRA245-B or Ref. TRA470-B is included in TRA box. Automatic Soldering Iron for Robot ..1 unit Manual ............ - Page 3 w w w.jbctools.com The following items are included in SFR box (Ref. SFR-B): Solder Feeder for Communications Robot ......1 unit Reel Support ....1 unit Cable 3 m......1 unit Ref. 0024561 Ref. 0024563 Allen Key 1,5 mm ..1 unit Allen Key 2,5 mm ..
- Page 4 Either Ref. UCR245-5A or Ref. UCR470-5A is included in UCR box: Control Box for Robot ........................... 1 unit Power Cord 1.5m ..1 unit Tool Cable 3m ....1 unit Communications Ref. 0023714 (230 V) Ref. 0027924 Cable 3m ......1 unit Ref.
- Page 5 w w w.jbctools.com Either Ref. CS2R245-B or Ref. CS2R470-B is included in CSR box: Screw ............2 unit DIN 912 M6x20 Ref. 0842925 Cartridge Stand for Robot ..... 1 unit Washer ............2 unit DIN 125 Ø6.4 mm INOX Ref. 0919480 Upper Center Jig ........
- Page 6 The following items are included in the CLR box (Ref. CLMR-A) Tip Cleaner for Robot ..........................1 unit Metal Brushes ..........1 unit Connector Cable (3m) ......1 unit Ref. CLMU-A8 Ref. 0024563 (2 brushes) Manual .................................. 1 unit Ref. 0027878...
-
Page 7: Features And Connections
w w w.jbctools.com Features and Connections PLC / Robot Connections: Compressed Air RS 232 Comunication Air Tube 100-240 V AC Further information can be found in the instruction manuals for the individual products, which are contained in the respective product box. For SFR download the Robot Communication Protocol at www.jbctools.com/jbcsoftware.html Maintenance and Safety Follow the instructions in the individual instruction manuals, included in each product box. - Page 8 Notes...
- Page 9 w w w.jbctools.com Notes...
-
Page 10: Specifications
Specifications Soldering Unit for Robot Ref.: HA245A-5B Ref.: HA470A-5B HA245A-5B - Total Package Dimensions/Weight: 490 x 485 x 278 mm / 10.33 kg (L x W x H) 19.29 x 19.09 x 10.94 in / 22.77 lb HA470A-5B - Total Package Dimensions/Weight: 490 x 485 x 278 mm / 10.52 kg (L x W x H) 19.29 x 19.09 x 10.94 in / 23.18 lb... - Page 11 w w w.jbctools.com TRA245-A - Total Net Weight: 700 g / 1.54 lb - Package Dimensions/Weight: 221 x 136 x 126 mm / 909 g (L x W x H) 8.70 x 5.35 x 4.96 in / 2.00 lb TRA470-A - Total Net Weight: 716 g / 1,58 lb - Package Dimensions/Weight:...
- Page 12 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
