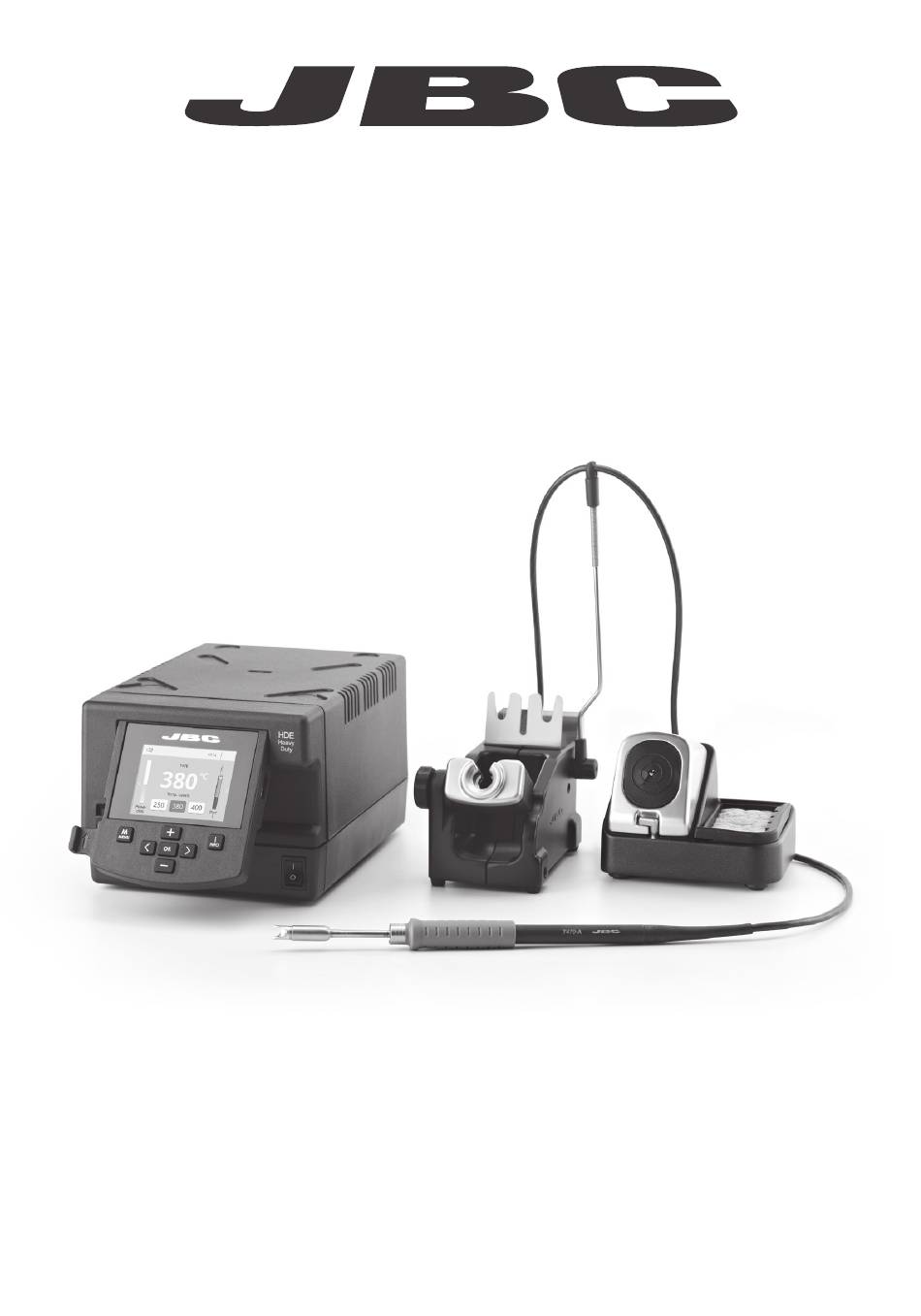

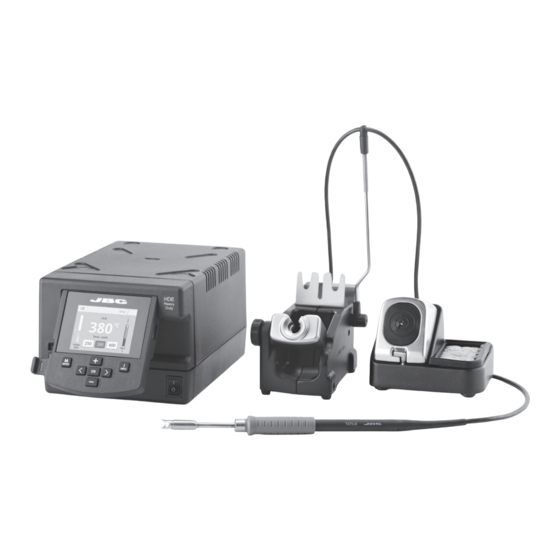

- Page 1 www.jbctools.com INSTRUCTION MANUAL Heavy Duty station Ref. HDE-B...
-
Page 3: Packing List
w w w.jbctools.com Packing List The following items should be included: HDE Control Unit ........1 unit Stand ............1 unit Ref. HDE-1B (120V) Ref. HD-SE HDE-2B (230V) HDE-9B (100V) HD Purpose ESD Tip Cleaner ... 1 unit Sponge ......1 unit Handle ...... - Page 4 Features & Connections HDE Control Unit Equipotential connection USB-B connector Power Socket RJ12 connector Peripheral connector for Robot system for joining modules and pedals Stand cable C470 cartridges Required but not supplied Ref. 0011283 HD Purpose Handle Ref. T470-FA Stand Ref.
- Page 5 w w w.jbctools.com 2.8” Color TFT screen USB-A connector Tilt the display for easy reading Peripherals Join the station port with 1 module and 1 pedal. See the compatible peripherals below: Nitrogen Flow Fume Regulator Extractor Switch Ref. MNE-A Ref. FSE-A Pedal Pedal Ref.
-
Page 6: Maintenance
If necessary use a tool to lever it off. and return it to the station. Fuse - Replace any defective or damaged pieces. Only use original JBC spare parts. - Repairs should only be performed by a JBC authorized technical service. - Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 8 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
-
Page 9: Specifications
w w w.jbctools.com Specifications HDE-1B 120V 50/60Hz. Input fuse: 4A. Output: 42V. HDE-2B 230V 50/60Hz. Input fuse: 2A. Output: 42V. HDE-9B 100V 50/60Hz. Input fuse: 5A. Output: 42V. - Weight: 4,9 kg (10.8 lb) - Dimensions: 145 x 120 x 225 mm (3.54 x 4.13 x 7.09 in) - Output Peak Power: 250W - Temperature Range:... -
Page 10: Exploded View
Exploded View... - Page 11 w w w.jbctools.com...
- Page 12 Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
