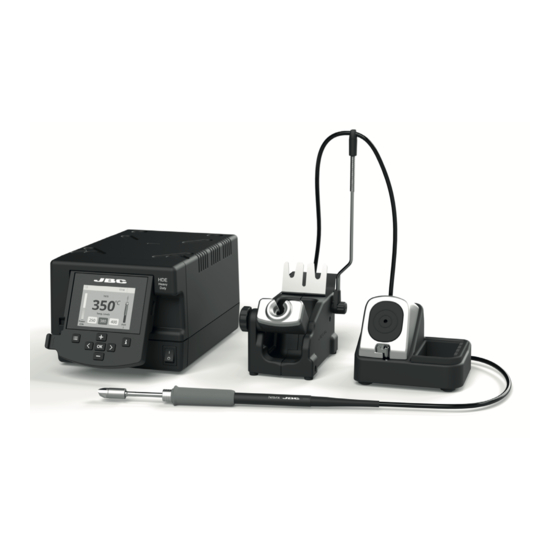

jbc HDE-D Instruction Manual

Heavy duty station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com

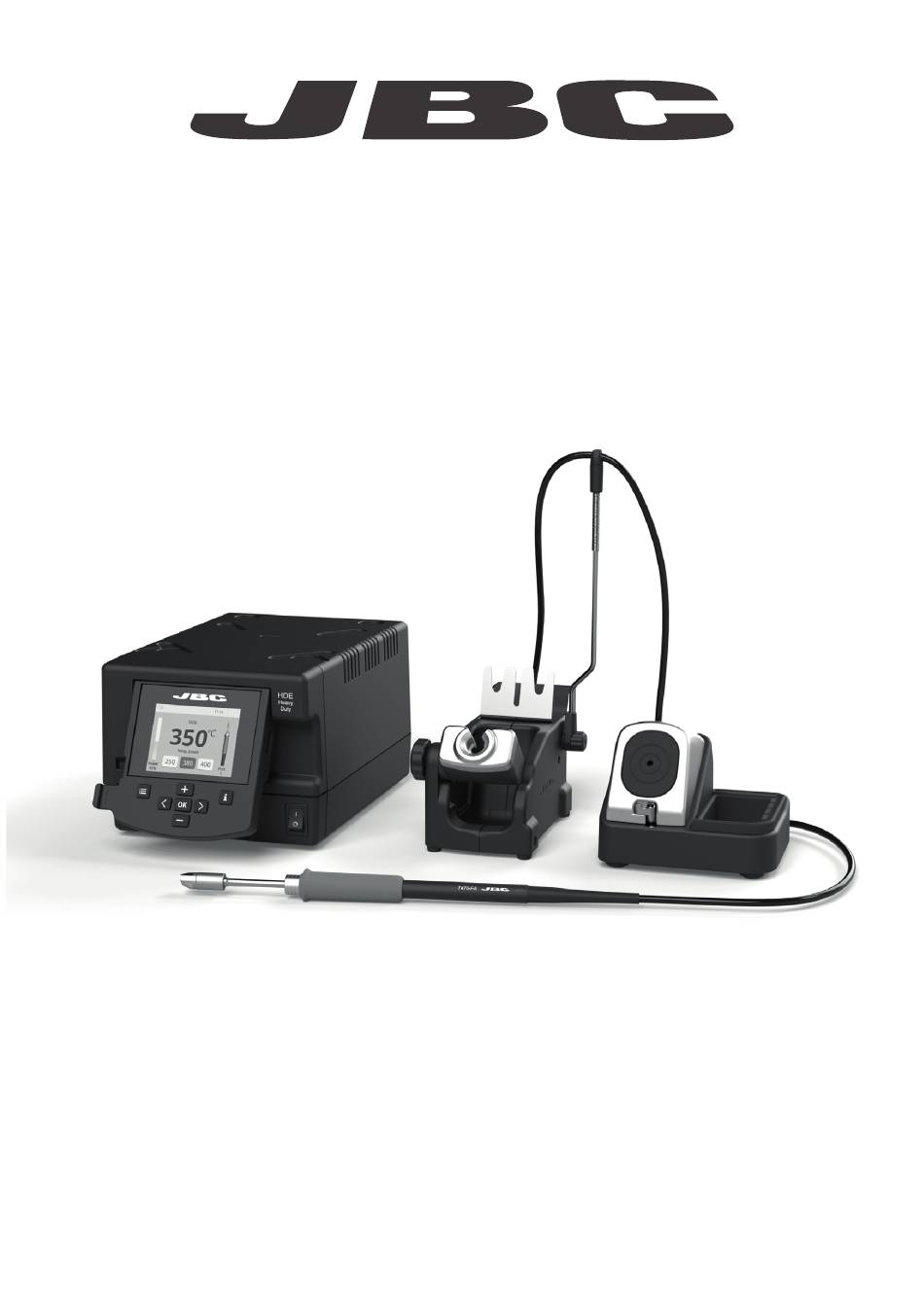

INSTRUCTION MANUAL
Heavy Duty station
Ref. HDE-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDE-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc HDE-D

Summary of Contents for jbc HDE-D

  • Page 1 INSTRUCTION MANUAL Heavy Duty station Ref. HDE-D...

  • Page 2: Packing List

    Cartridge holder..... 1 unit Ref. CL8499 Ref. S0354 Ref. SCH-A Stand cable ....1 unit Power Cord ....1 unit Manual ......1 unit Ref. 0011283 Ref. 0010569 (230V) Ref. 0020641 0013671 (100/120V) w w w.jbctools.com INSTRUCTION MANUAL Heavy Duty station Ref. HDE-D...
  • Page 3 w w w.jbctools.com Connections HDE Control Unit Stand cable Ref. 0011283 Equipotential connection USB-B connector Power Socket Peripheral connector for joining modules RJ12 connector and pedals for Robot system C470 cartridges Required but not supplied HD Purpose Handle Ref. T470-FA Stand Ref.
  • Page 4 Features 2.8” Color TFT screen USB-A connector Tilt the display for easy reading Main Switch Peripherals Join the station port with 1 module and 1 pedal. See the compatible peripherals below: Nitrogen Flow Fume Regulator Extractor Switch Ref. MNE-A Ref. FSE-A Pedal Pedal Ref.

  • Page 5: Work Screen

    w w w.jbctools.com Work Screen The HDE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Status bar 17:14 17:14 Tool T470 T470 in use ºC ºC Power Temp. Levels Temp. Levels indicator Power Power Port Port...

  • Page 6: Advanced Functionalities

    Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the Update file downloadedto the station. System notifications The following icons will be displayed on the screen’s status bar.
  • Page 7 Soldering Net Remotely manage and monitor as many stations as your Windows PC can handle. 1. Download the JBC Software Manager and the user manual from jbcnet.solutions 2. Connect the stations via USB-B connector and the PC will automatically detect them.

  • Page 8: Operation

    Operation The JBC Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.

  • Page 9: Changing Cartridges

    w w w.jbctools.com Stand Changing Cartridges 1. Removing 2. Inserting Screw Loosen the screw. Place the Soldering Iron in Insert the cartridge and press slightly to the the extractor and remove the cartridge. mark*. 3. Fixing *Mark Once the cartridge is properly inserted we recommend tightening the screw to prevent it turning. Important: It is essential to insert the cartridges as far as the mark for a proper connection.
  • Page 10 Only used with a DN-SE stand. Nozzles Ref. B6193 B6194 B6195 HD Thermal Tweezers Ref. HT470-A Only used with two HDE-D control units and a HDT-SD stand. Use C470 Cartridge range. Find the model that best suits your soldering needs in www.jbctools.com...

  • Page 11: Tip Cleaner

    w w w.jbctools.com Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Ref. CL6210 Sponge Very effective cleaning Ref. S0354 method. It leaves a small layer of solder on the tip to The least harmful prevent oxidation between cleaning method.

  • Page 12: Maintenance

    If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 13 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
  • Page 14 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...

  • Page 15: Specifications

    w w w.jbctools.com Specifications HDE-1D 120V 50/60Hz. Input fuse: 4A. Output: 42V. HDE-2D 230V 50/60Hz. Input fuse: 2A. Output: 42V. HDE-9D 100V 50/60Hz. Input fuse: 4A. Output: 42V. - Temperature Range: 90 - 500 °C (190 - 932 °F) (±5%) - Idle Temp.
  • Page 16 Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In case of any manufacturing defect, the equipment must be returned, postage paid, to the dealer where it was purchased.

This manual is also suitable for:

Hde-1udHde-2udHde-9ud
