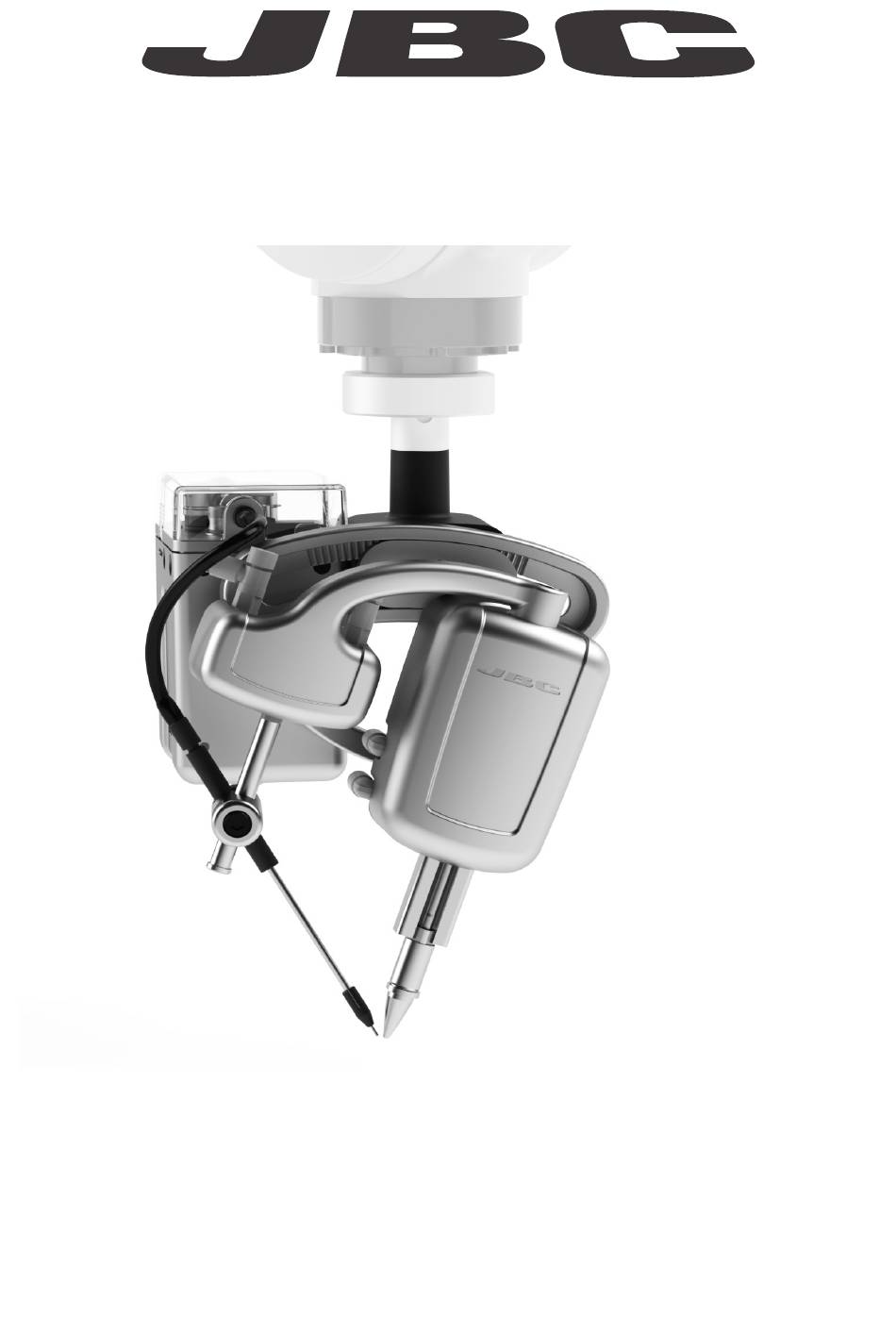

- Page 1 INSTRUCTION MANUAL Soldering Unit Ref. HA245A-5B / HA470A-5B...
-
Page 2: Packing List

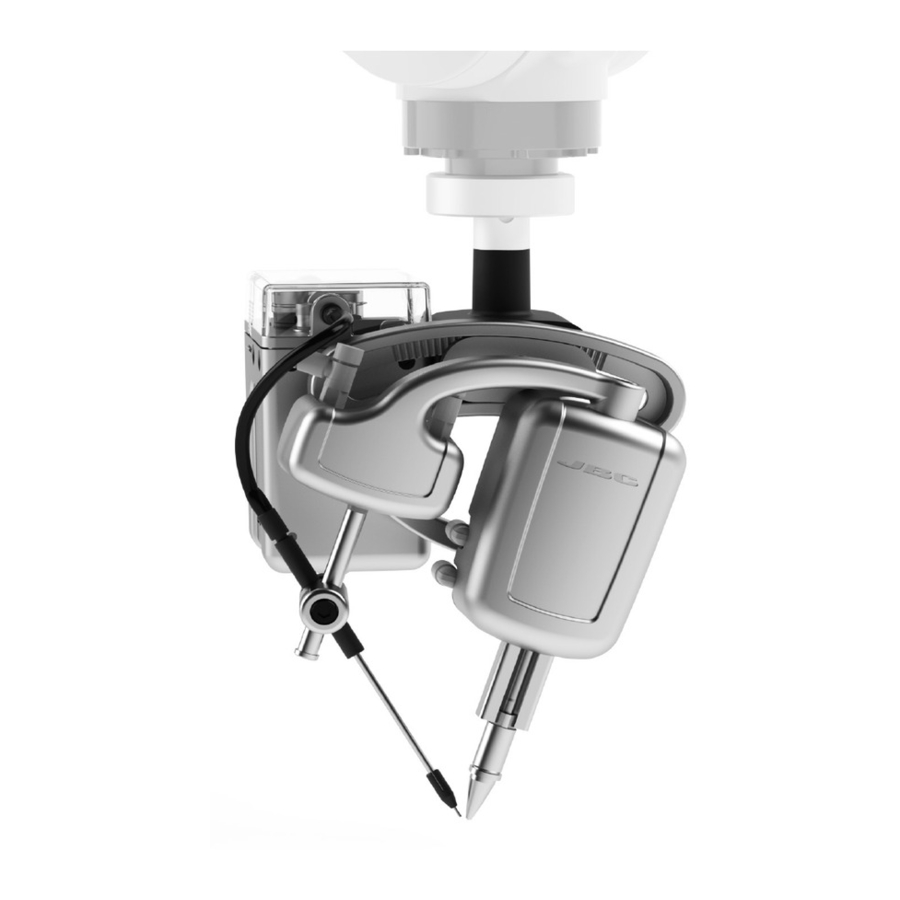

Packing List Either TRA245 or TRA470 are included. Soldering Iron for Automation ....1 unit Ref. TRA245-B: Works with R245 cartridges Ref. TRA470-B: Works with R470 cartridges M a n u a l ......1 u n i t Ref. 0024884... - Page 3 w w w.jbctools.com The following items are included in SFR-A box: Solder Feeder for Reel Support ....1 unit Communications Automation ....1 unit Ref. 0024561 Cable 3 m......1 unit Ref. SFR-A Ref. 0024563 Allen Key 1,5 mm ..1 unit Allen Key 2,5 mm ..
- Page 4 The following items are included in UCR245-5A/UCR470-5A box: Control Box for Automation ....1 unit Ref. UCR245-5A UCR470-5A Power Cord 1.5m ..1 unit Tool Cable 3m ....1 Communications Ref. 0009401 unit Cable 3m ......1 unit Ref. 0021403 Ref.
- Page 5 w w w.jbctools.com The following items are included in CS2R245-A/CS2R470-A box: Cartridge Stand for Automation ..1 unit Ref. CS2R245-A CS2R470-A Washer ......1 unit Screw ............1 unit DIN 125 Ø6.4 mm DIN 912 M6x20 Ref. 0842925 Ref. 0842925 Manual .............
- Page 6 The following items should be included in CLMR-A box: Tip Cleaner for Automation ..1 unit Ref. CLMR-A Metal Brushes .... 1 unit Connector Cable (3m)..1 unit Ref. CLMU-A8 Ref. 0020261 (2 brushes) Manual ....1 unit Ref. 0020354 w w w.jbctools.com Tip Cleaner for Automation...
-
Page 7: Specifications
w w w.jbctools.com Specifications UCR245-5A 85 - 265V 50/60Hz. Input fuse: 2A. Output: 22V. UCR470-5A 85 - 265V 50/60Hz. Input fuse: 4A. Output: 42V. - Net Weight: 2.20 kg (4.9 lb) - Dimensions: 210 x 162 x 75 mm (8.3 x 6.4 x 3.0 in) - Output Peak Power (on UCR245-5A): 160W - Output Peak Power (on UCR470-5A):... -
Page 8: Warranty
Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
