  • Page 1 www.jbctools.com English HDE-A Robot station Ref. HDRE-A...

  • Page 2: Packing List

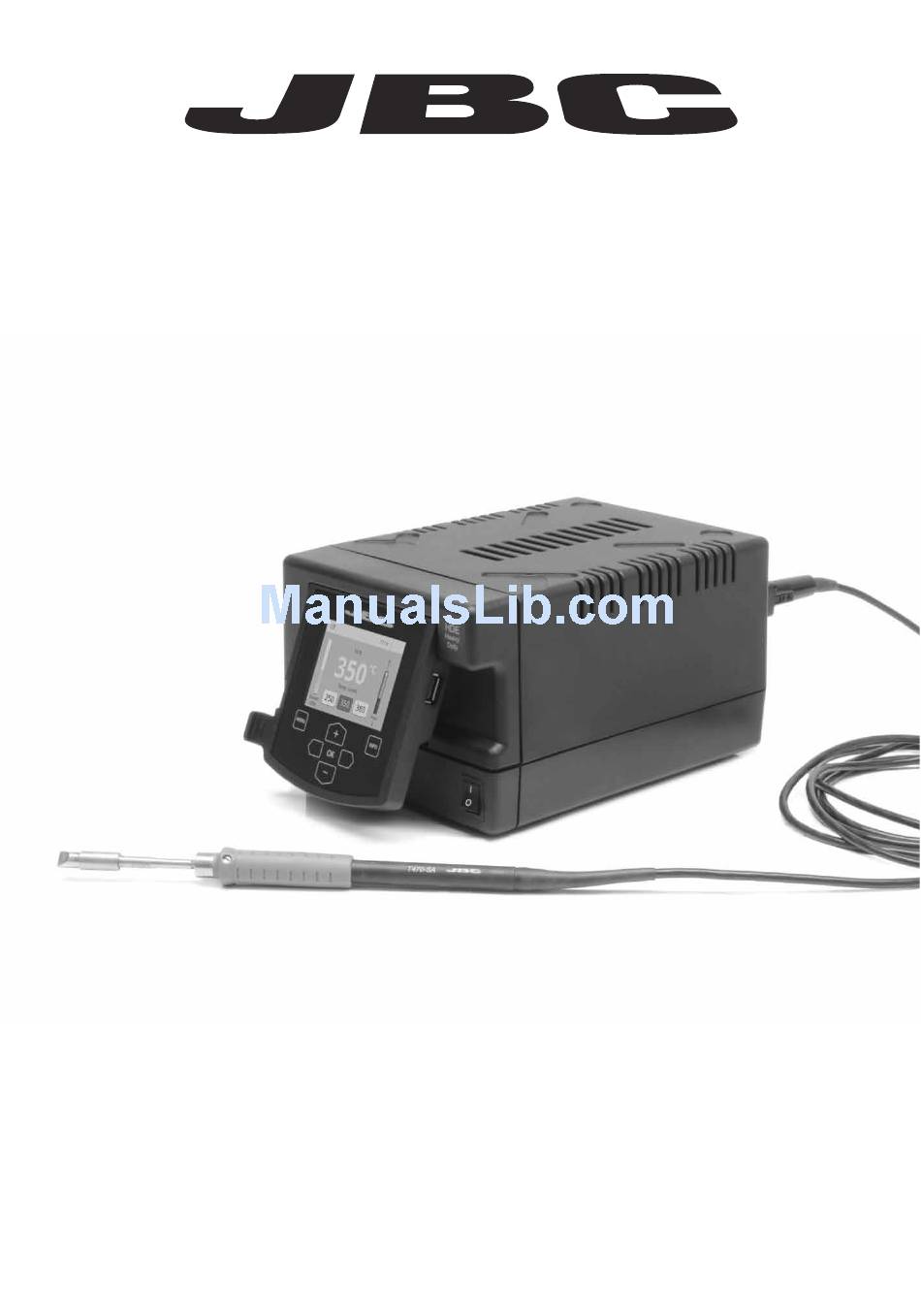

    The following items should be included: 2.8” Color TFT screen with capacitive keyboard General purpose HD Handle HDE Control Unit ..........1 unit with 3m cable ........1 unit Ref. HDE-1A (120V) Ref. T470-SA HDE-2A (230V) HDE-9A (100V) Tilt the display for easy reading Working with Robots Manage and monitor the station using a Robotic system.

  • Page 3: Compatible Cartridges

    Compatible Soldering Iron Handles Changing and fixing the cartridges JBC offers a wide range of handles and grips to choose from. Before changing the cartridge, be sure that the tip is cold. T470: Handles for Heavy Duty Once the cartridge is properly inserted we recommend tightening the screw to prevent moving.

  • Page 4: Work Screen

    w w w.jbctools.com Work Screen Process analysis The HDE-A offers an intuitive user interface which provides quick access to the station parameters. By pressing Graphics in the main MENU, temperature and power responses in real time are displayed for each port. This helps you decide which the proper tip is for every soldering job and the quality of the solder joint.

  • Page 5: Maintenance

    If necessary use a tool to lever it off. and replace it in the station. Update File - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.

  • Page 6: Exploded View

    w w w.jbctools.com Safety Exploded View It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases.

  • Page 7: Specifications

    Specifications HDE-1A 120V 50/60Hz. Input fuse: 4A. Output: 47V HDE-2A 230V 50/60Hz. Input fuse: 2A. Output: 47V HDE-9A 100V 50/60Hz. Input fuse: 4A. Output: 47V - Weight: 5.9 Kg (13.1 lb) - Dimensions: 145 x 120 x 225 mm - Output Peak Power: 250W - Temperature Range: 90-500 ºC (190-932 ºF)
