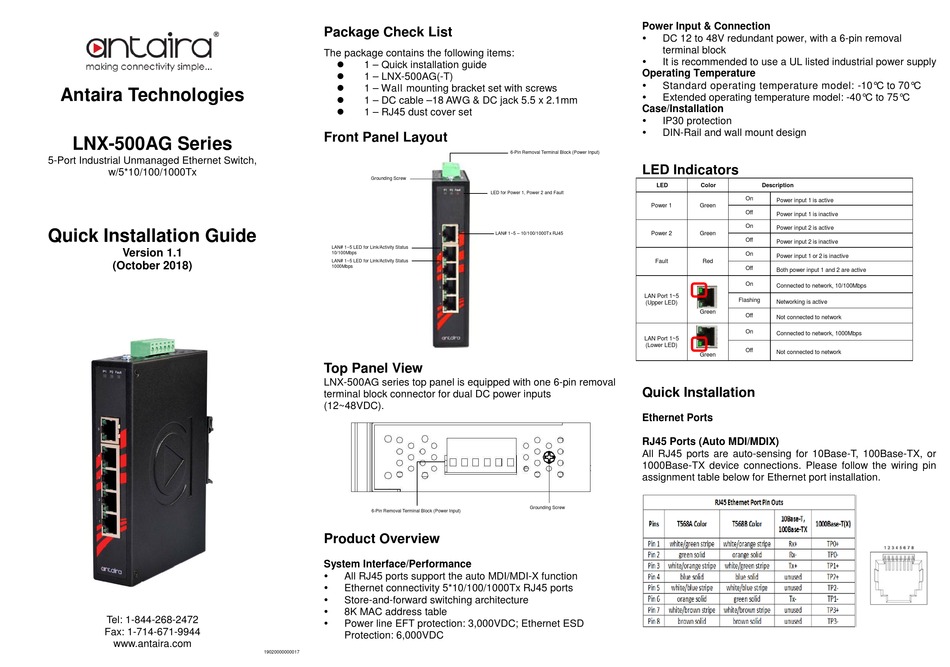

ANTAIRA LNX-500AG Series Quick Installation Manual

Antaira Technologies

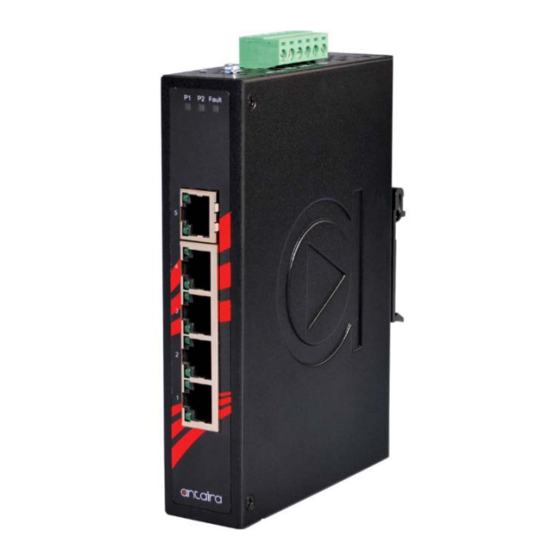

LNX-500AG Series
5-Port Industrial Unmanaged Ethernet Switch,
w/5*10/100/1000Tx
Quick Installation Guide
Version 1.1
(October 2018)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:

1 – Quick installation guide

1 – LNX-500AG(-T)

1 – Wall mounting bracket set with screws

1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm

1 – RJ45 dust cover set
Front Panel Layout
Grounding Screw
LAN# 1~5 LED for Link/Activity Status
10/100Mbps
LAN# 1~5 LED for Link/Activity Status
1000Mbps
Top Panel View
LNX-500AG series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 5*10/100/1000Tx RJ45 ports

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 3,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000017
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)
LED Indicators
LED
LED for Power 1, Power 2 and Fault
Power 1
Power 2
LAN# 1~5 – 10/100/1000Tx RJ45
Fault
LAN Port 1~5
(Upper LED)
LAN Port 1~5
(Lower LED)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-TX device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Grounding Screw
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 1000Mbps
Off
Not connected to network
Green
