Summary of Contents for ANTAIRA LNX-800A-E Series

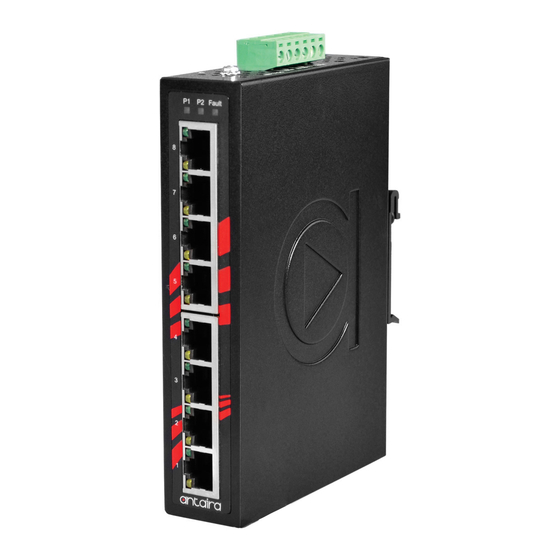

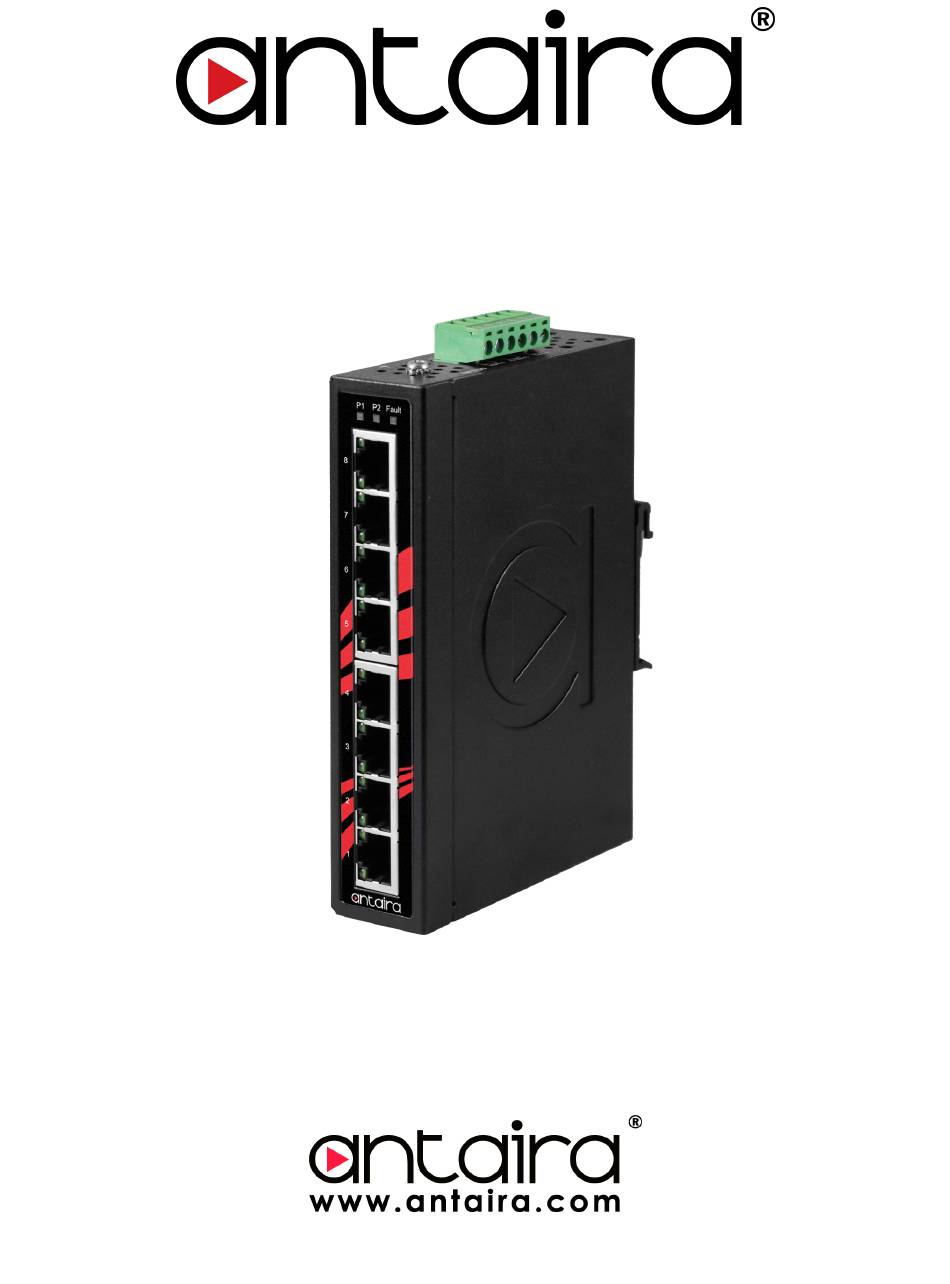

- Page 1 LNX-800A-E Series 8-Port Industrial Unmanaged Ethernet Switch, with 8*10/100Tx Ports, 12~48VDC Power Input, E-mark Version Hardware Manual Version 1.0 (September 2021)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Hardware Manual Version 1.0 (September 2021) The manual supports the following models: ● LNX-800A-E ● LNX-800A-E-T This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview
This assures that data is properly transmitted. The LNX-800A-E series supports 12~48VDC dual power inputs, and also offers two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It supports IEEE 802.3/802.3u/802.3ab/802.3x with 10/100Tx for full or half duplex data transmission. -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 1.2 Package Contents LNX-800A-E(-T) Quick Installation Guide Wall mounting bracket set with screws DC cable - 18AWG & DC jack 5.5 x 2.1mm **Wire: White (+) / Black (-) Dust cover set 1.3 Safety Precaution... -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x H x D) is 30mm x 140mm x 95mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 10: Top View Panel
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series: Figure 2.3 - Top View Panel 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 2.5 Ethernet Ports ● RJ45 Ports RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX connections. Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Figure 2.7 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 lbs. The wire gauge for the terminal block should range between 18~20 AWG. -
Page 14: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 16: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 17 Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 18: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 19: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 20: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet Standards IEEE 802.3u 100Base-TX Fast Ethernet Switch Properties Switch Architecture Back-Plane (Switching Fabric): 1.6Gbps... - Page 21 Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 Power Connection 1 removable 6-contact terminal block Relay Contact 24VDC, 1A resistive Overload Current Protection Present Reverse Polarity Protection Present System Power Consumption 5 Watts Environmental Limits STD: -10°C to 70°C...
- Page 22 Antaira Technologies - Industrial Ethernet Switches LNX-800A-E Series - Hardware Manual - v1.0 www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
