  • Page 2 • RIGOL products are covered by P.R.C. and foreign patents, issued and pending. • RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. • Information in this publication replaces all previously released materials.

  • Page 3: Safety Requirement

    Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death. CAUTION Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 4: Measurement Category

    Measurement category III is for measurements performed in the building installation. Examples are measurements on distribution boards, circuit-breakers, wiring (including cables, bus-bars, junction boxes, switches and socket-outlets) in the fixed installation, and equipment for industrial use and some other Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 5: Ventilation Requirement

    Below +60℃: ≤90% RH (without condensation) WARNING To avoid short circuit inside the instrument or electric shock, never operate the instrument in a humid environment. Altitude • Operating: below 3 km • Non-operating: below 15 km Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 6: Care And Cleaning

    For example, outdoor areas. Safety Class Class 1 – Grounded Product Care and Cleaning Care Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 7: Environmental Considerations

    Please contact your local authorities for disposal or recycling information. https://int.rigol.com/services/services/declaration You can click on the following link to download the latest version of the RoHS&WEEE certification file. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 8: Document Overview

    This manual gives you a quick overview of the front and rear panel, user interface as well as basic operation methods of HDO1000 series. http:// For the newest version of this manual, download it from RIGOL official website ( www.rigol.com Publication Number...
  • Page 9 Document Overview Model Max. Analog Bandwidth Analog Channels HDO1072 70 MHz HDO1074 70 MHz HDO1102 100 MHz HDO1104 100 MHz HDO1202 200 MHz HDO1204 200 MHz Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 10: General Inspection

    The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument. 2. Inspect the instrument In case of any mechanical damage, missing parts, or failure in passing the electrical and mechanical tests, contact your RIGOL sales representative.

  • Page 11: Product Overview

    Product Overview Product Overview HDO1000 series digital oscilloscope is designed to meet the requirements for the design, debug, and test of the mainstream oscilloscope market. Adopting the brand- new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform...

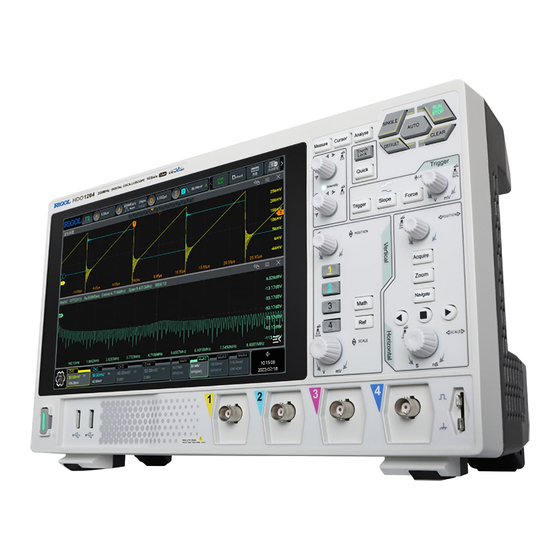

  • Page 12 Horizontal Controls Cursor Key Probe Compensation Signal Output Terminal/Ground Terminal Analyse Key Analog Channel Input Terminals Touch Lock Key USB HOST Port Common Tools Keys Power Switch Quick Action Key (Self-defined function) Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 13: Rear Panel Overview

    Trigger Output Connector External Trigger Input Connector 10 MHz Reference Clock Input Connector 10 MHz Reference Clock Output Connector HDMI Connector USB DEVICE Port LAN Port AC Power Cord Connector Fuse Security Lock Hole Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 14: User Interface Overview

    Result Sidebar Run State Label Notification Area Horizontal Timebase Label Split-screen Display Sample Rate & Memory Depth Math Labels Label Horizontal Delay Label Channel Labels Trigger Label Function Navigation Icon Function Toolbar Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 15: To Prepare For Use

    The power requirements of the oscilloscope are 100-240 V, 45-440 Hz. Please use the power cord provided in the accessories to connect the oscilloscope to the AC power source, as shown in the figure below. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 16: Turn-On Checkout

    "Are you sure to shutdown?" is displayed. Click or tap OK to shut down the instrument. Press twice to directly shut down the instrument. Press for three seconds to directly shut down the instrument. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 17: Setting The System Language

    > Utility > Setup > Language to select the system language. Connecting Probes RIGOL provides passive probes for HDO1000 series. For specific probe models, please refer to HDO1000 series Data Sheet . For detailed technical information of the probes, please refer to the corresponding Probe User Guide.

  • Page 18: Function Inspection

    Figure 5.5 Square Waveform Signal 6. Test the other channels in the same way. If you see the waveform, but the square wave is not shaped correctly as shown above, perform the procedure described in Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 19: Probe Compensation

    3. Use the probe compensation adjustment tool provided in the accessories to adjust the low-frequency compensation adjustment hole on the probe until the displayed waveform is consistent with the "Perfectly compensated" waveform shown in the figure above. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 20: Touchscreen Gestures

    Use one finger to select the object, and then drag the object to a destination place, as shown in the figure below. With the drag gesture, you can perform the following operation: Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 21 • Pinching&stretching in the horizontal direction can adjust the horizontal time base of the waveform. • Pinching&stretching in the vertical direction can adjust the vertical scale of the waveform. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 22 Touch Screen Gestures Figure 6.3 Pinch&Stretch Gesture Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 23 Click or tap > Help to access the "Help" menu. After that, you can get its help information by clicking on or tapping the link for the desired item. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 24: Parameter Setting Method

    At this time, the unit of the parameter is the default unit. In the numeric keypad, you can perform the following operations: • Delete the parameter value that has been input; Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
  • Page 25 Parameter Setting Method • Set the parameter value to a maximum or minimum value; • Set the parameter to a default value. • Clear the parameter input field. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 26: Replacing The Fuse

    To avoid electric shock, please make sure that the instrument is powered off and disconnected from the power before replacing the fuse. Also, please make sure the fuse is consistent with the required fuse rating. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.

  • Page 27: Remote Control

    When you first log in to the Web Control, the user name is "admin" and password is "rigol". This instrument can be connected to the PC via the USB, LAN, or GPIB interface to set up communication and realize remote control through the PC.

  • Page 28: More Product Information

    For details, refer to descriptions in this series User Guide. For more information about the instrument, refer to the relevant manuals by logging in to the official website of RIGOL ( http://www.rigol.com ) to download them.

This manual is also suitable for:

Hdo1072Hdo1074Hdo1102Hdo1104Hdo1202Hdo1204
