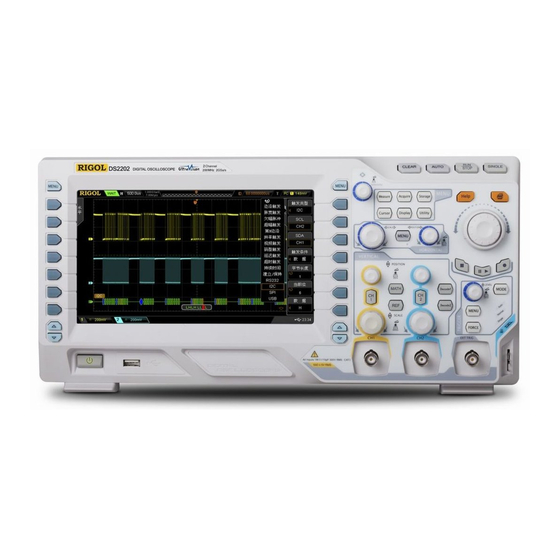

Page 1 RIGOL User’s Guide DS2000 Series Digital Oscilloscope May 2012 RIGOL Technologies, Inc.
Page 3 Notices RIGOL products are protected by patent law in and outside of P.R.C.  RIGOL reserves the right to modify or change parts of or all the specifications  and pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material.
Page 4: Safety Requirement
RIGOL Safety Requirement General Safety Summary Please review the following safety precautions carefully before putting the instrument into operation so as to avoid any personal injuries or damages to the instrument and any product connected to it. To prevent potential hazards, please use the instrument only specified by this manual.
Page 5 Do Not Operate With Suspected Failures. If you suspect damage occurs to the instrument, have it inspected by qualified service personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. Keep Well Ventilation.
Page 6: Safety Terms And Symbols
RIGOL Safety Terms and Symbols Terms in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property.
Page 7: Measurement Category
RIGOL Measurement Category Measurement Category DS2000 series digital oscilloscopes can make measurements in Measurement Category I. WARNING This oscilloscope can only be used for measurements within its specified measurement categories. Measurement Category Definitions Measurement category I is for measurements performed on circuits not directly connected to MAINS.
Page 8: Ventilation Requirement
RIGOL Ventilation Requirement This oscilloscope uses fan to force cooling. Please make sure that the air intake and exhaust areas are free from obstructions and have free air. When using the oscilloscope in a bench-top or rack setting, provide at least 10 cm clearance beside, above and behind the instrument for adequate ventilation.
Page 9: Working Environment
RIGOL Working Environment Temperature Operating: 0℃ to +50℃ Non-operating: -20℃ to +70℃ Humidity Under +35℃: ≤90％ relative humidity +35℃ to +40℃: ≤60％ relative humidity WARNING To avoid short circuit inside the instrument or electric shock, please do not operate in humid environment.
Page 10: Pollution Degree
RIGOL Pollution Degree Degree 2 Pollution Degree Definitions Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The pollution has no influence. For example: a clean room or air-conditioned office environment. Pollution degree 2: Normally only dry, non-conductive pollution occurs. Occasionally a temporary conductivity caused by condensation may occur.
Page 11: General Care And Cleaning
RIGOL General Care and Cleaning General Care: Do not store or leave the instrument at places where the instrument will be exposed to direct sunlight for long periods of time. Cleaning: Clean the instrument regularly according to its operating conditions. To clean the exterior surface: Disconnect the instrument from all power sources.
Page 12: Environmental Considerations
RIGOL Environmental Considerations The following symbol indicates that this product complies with the applicable European Union requirements according to Directives 2002/96/EC on waste electrical and electronic equipment (WEEE). Product End-of-Life Handling The equipment may contain substances that could be harmful to the environment or human health.
Page 13: Ds2000 Series Overview
RIGOL DS2000 Series Overview DS2000 is a high-performance and low bandwidth digital oscilloscope developed on the basis of the Ultra Vision technique. DS2000, featuring rather deep memory depth, ultra-wide dynamic range, superb waveform capture rate and all-round trigger functions as well as hardware waveform record function and good display effect, is...
Page 14 RIGOL Conform to LXI-C instrument standards. Enable quick, economic and efficient  creation and reconfiguration of test system. Support remote command control.  Embedded help enables easier information access.  Support multiple languages and Chinese/English input.  Novel and delicate industrial design and easier operation.
Page 15: Document Overview
RIGOL Document Overview 1 Quick Start Provide information about preparations before using the instrument and a brief introduction of the instrument. 2 To Set the Vertical System Introduce the functions of the vertical system of the oscilloscope. 3 To Set the Horizontal System Introduce the functions of the horizontal system of the oscilloscope.
Page 16 RIGOL Format Conventions in this Manual: Front panel key: denoted by the format of “Text Box + Button Name (Bold)”, for example, Storage. Menu softkey: denoted by the format of “Character Shading + Menu Word (Bold)”, for example, Storage. Operation steps: denoted by the arrow “”, for example, Storage  Storage.
Page 17: Table Of Contents
RIGOL Contents Guaranty and Declaration ................I Safety Requirement ................. II General Safety Summary ................II Safety Terms and Symbols ................. IV Measurement Category ................V Ventilation Requirement ................VI Working Environment ................VII General Care and Cleaning ................. IX Environmental Considerations..............
Page 18 RIGOL Navigation Knob ................1-18 MENU .................... 1-19 Record ................... 1-20 Print ....................1-20 User Interface ..................1-21 To Use the Security Lock ................ 1-25 To Use the Built-in Help System .............. 1-26 2 To Set the Vertical System ..............2-1 To Enable the Channel ................
Page 19 RIGOL 5 To Trigger the Oscilloscope ..............5-1 Trigger Source..................5-2 Trigger Mode ................... 5-3 Trigger Coupling ..................5-5 Trigger Holdoff ..................5-6 Noise Rejection ..................5-7 Trigger Type .................... 5-8 Edge Trigger ..................5-9 Pulse Trigger .................. 5-11 Runt Trigger ................... 5-13 Windows Trigger ................
Page 20 RIGOL Measurement Setting ..............6-22 To Clear the Measurement ............... 6-24 All Measurement ................6-25 Statistic Function ................6-26 Measurement History ..............6-27 Cursor Measurement ................6-28 Manual Mode .................. 6-29 Track Mode ..................6-32 Auto Mode ..................6-35 7 Protocol Decoding ................7-1 Parallel Decoding ..................
Page 21 RIGOL Analysis Based on Pass/Fail Mask ........... 10-13 11 Display Control ................11-1 To Select the Display Type ..............11-2 To Set the Persistence Time ..............11-3 To Set the Waveform Intensity ............... 11-5 To Set the Screen Grid ................11-5 To Set the Grid Brightness ..............
Page 22 RIGOL 14 Remote Control ................14-1 Remote Control via USB ................. 14-2 Remote Control via LAN ................. 14-6 Remote Control via GPIB ................ 14-9 15 Troubleshooting ................15-1 16 Specifications ................. 16-1 17 Appendix ..................17-1 Appendix A: Accessories and Options ............17-1 Appendix B: Warranty ................
Page 23: Quick Start
RIGOL 1 Quick Start 1 Quick Start This chapter introduces the preparations when using the oscilloscope for the first time, the front panel, rear panel and user interface of the oscilloscope as well as the using method of the built-in help system.
Page 24: General Inspection
RIGOL would not be responsible for free maintenance/rework or replacement of the unit. Inspect the instrument. In case of any damage, or defect, or failure, notify your RIGOL sales representative. Check the Accessories Please check the accessories according to the packing lists. If the accessories are incomplete or damaged, please contact your RIGOL sales representative.
Page 25: Appearance And Dimensions
RIGOL 1 Quick Start Appearance and Dimensions Figure 1-1 Front View Unit: mm Figure 1-2 Side View Unit: mm DS2000 User’s Guide...
Page 26: To Prepare The Oscilloscope For Use
RIGOL 1 Quick Start To Prepare the Oscilloscope for Use To Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation.
Page 27: To Connect To Power Supply
RIGOL 1 Quick Start To Connect to Power Supply The power requirements of DS2000 are 100-240 V, 45-440 Hz. Please use the power cord supplied with the accessories to connect the oscilloscope to the power source. At this point, the power key at the lower-left corner of the front panel is in breathing state.
Page 28: Power-On Inspection
RIGOL 1 Quick Start Power-on Inspection When the oscilloscope is energized, press the power key at the lower-left corner of the front panel to start the oscilloscope. During the start-up process, the oscilloscope performs a series of self-tests and you can hear the sound of relay switching.
Page 29: To Connect The Probe
1 Quick Start To Connect the Probe RIGOL provides passive probes for the DS2000 series oscilloscopes. For detailed technical information of the probes, please refer to the corresponding Probe User’s Guide. The following are the probes recommended for this oscilloscope.
Page 30: Function Inspection
RIGOL 1 Quick Start Function Inspection Press Storage  Default to restore the instrument to its default configuration. Connect the ground alligator clip of the probe to the “Ground Terminal” under the probe compensation signal output terminal. Use the probe to connect the input terminal of CH1 of the oscilloscope and the “Compensation Signal Output Terminal”...
Page 31 RIGOL 1 Quick Start The signal output from the probe compensation connector can only be used for probe compensation adjustment and can not be used for calibration. DS2000 User’s Guide...
Page 32: Probe Compensation
RIGOL 1 Quick Start Probe Compensation When the probes are used for the first time, you should compensate the probes to match the input channels of the oscilloscope. Non-compensated or poorly compensated probes may cause measurement inaccuracy or error. The probe compensation procedures are as follows.
Page 33: Front Panel Overview
RIGOL 1 Quick Start Front Panel Overview Figure 1-9 Front Panel Overview Table 1-1 Front Panel Description Description Description Menu Power Key USB HOST Multi-function Knob HORIZONTAL Function Menu Keys Function Setting Menu Softkeys Navigation Knob VERTICAL CLEAR Analog Channel Input Area...
Page 34: Rear Panel Overview
RIGOL 1 Quick Start Rear Panel Overview Figure 1-10 Rear Panel Overview Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. Connect the instrument to the network via this interface for remote control. This oscilloscope conforms to the LXI-C class instrument standards and can quickly build test system with other instruments.
Page 35 RIGOL 1 Quick Start oscilloscope at each trigger via this interface. Lock Hole You can lock the instrument to a fixed location using the security lock (please buy it yourself) via the lock hole. AC Power Socket AC power input terminal. The power requirements of this oscilloscope are 100-240 V, 45-440 Hz, CAT II.
Page 36: Front Panel Function Overview
RIGOL 1 Quick Start Front Panel Function Overview VERTICAL CH1, CH2: analog input channels. The 2 channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Press any key to open the corresponding channel menu and press again to turn off the channel.
Page 37: Horizontal
RIGOL 1 Quick Start Decode1, Decode2: decoding function keys. Press the corresponding key to open the decoding function menu. DS2000 supports parallel decoding and protocol decodings. HORIZONTAL MENU: press this key to open the horizontal control menu under which to turn on or off the delayed sweep...
Page 38: Trigger
RIGOL 1 Quick Start TRIGGER MODE: press this key to switch the trigger mode to Auto, Normal or Single and the corresponding state backlight of the current trigger mode would be illuminated. TRIGGER LEVEL: modify the trigger level. Turn clockwise to increase the level and turn counterclockwise to reduce the level.
Page 39: Single
RIGOL 1 Quick Start SINGLE Press this key to set the trigger mode to “Single”. In single trigger mode, press FORCE to generate a trigger signal immediately. AUTO Press this key to enable the waveform auto setting function. The oscilloscope will automatically adjust the...
Page 40: Knob
RIGOL 1 Quick Start Knob Adjust waveform brightness: In non-menu-operation mode (menu is hidden), turn this knob to adjust the brightness of waveform display. The adjustable range is from 0% to 100%. Turn clockwise to increase the brightness and counterclockwise to reduce.
Page 41: Menu
RIGOL 1 Quick Start MENU Measure: press this key to open the measurement setting menu. You can set the measurement setting, all measure, statistic function etc. Press MENU at the left of the screen to open the measurement menus of 24 waveform parameters. Then, press down the corresponding menu softkey to quickly realize one-key measurement and the measurement result will be displayed at the bottom of the screen.
Page 42: Record
RIGOL 1 Quick Start Record Stop Play/Pause Record Record: press this key to start recording the waveform. The backlight is illuminated in red. Besides, when record constant on (Open) is enabled, the backlight will also be illuminated. Play/Pause: in stop or pause state, press this key to play back the waveform and press again to pause the play.
Page 43: User Interface
RIGOL 1 Quick Start User Interface DS2000 provides 8.0 inches, WVGA (800*480) 160,000 color TFT LCD. What is worth mentioning is that the 14-grid ultra-wide screen enables you to view “longer” waveform. 10 11 12.CH1 垂直档位 13.CH2 垂直档位 14.消息框 15.通知区域...
Page 44 RIGOL 1 Quick Start Channel Label/Waveform Different channels are marked by different colors and the color of the waveform complies with the color of the channel. Status Available states include RUN, STOP, T’D (triggered), WAIT and AUTO. Horizontal Time Base Represent the time per grid on the horizontal axis on the screen.
Page 45 RIGOL 1 Quick Start Note: in slope trigger, runt trigger and windows trigger, there are two trigger level labels ( 12. CH1 Vertical Scale Display the voltage value per grid of CH1 waveform vertically.  Use VIRTICAL SCALE to modify this parameter.
Page 46 RIGOL 1 Quick Start Denote that the current menu has a lower level menu. Press this key to return to the previous menu. Note: the following direction keys might appear in the grid at the lower-left corner of the menu bar: Denote that you can open the next page menu.
Page 47: To Use The Security Lock
RIGOL 1 Quick Start To Use the Security Lock If needed, you can use the security lock (please buy it yourself) to lock the oscilloscope to a fixed location. The method is as follows, align the lock with the lock hole and plug it into the lock hole vertically, turn the key clockwise to lock the oscilloscope and then pull the key out.
Page 48: To Use The Built-In Help System
RIGOL 1 Quick Start To Use the Built-in Help System The help system of this oscilloscope provides instructions for all the function keys (including menu keys) at the front panel. Press Help to open the help interface and press again to close the interface. The help interface mainly consists of two parts.
Page 49: To Set The Vertical System
RIGOL 2 To Set the Vertical System 2 To Set the Vertical System The contents of this chapter: To Enable the Channel  Channel Coupling  Bandwidth Limit  Probe Ratio  Waveform Invert  Vertical Scale  Vertical Expansion ...
Page 50: To Enable The Channel
RIGOL 2 To Set the Vertical System To Enable the Channel DS2000 provides 2 analog input channels (CH1 and CH2) and provides independent vertical control system for each channel. As the vertical system setting methods of the 2 channels are completely the same, this chapter takes CH1 as an example to introduce the setting method of the vertical system.
Page 51: Channel Coupling
RIGOL 2 To Set the Vertical System Channel Coupling Set the coupling mode to filter out the undesired signals. For example, the signal under test is a square waveform with DC offset. When the coupling mode is “DC”: the DC and AC components of the signal under ...
Page 52: Probe Ratio
RIGOL 2 To Set the Vertical System Probe Ratio You can set the probe attenuation ratio manually. The probe ratio values available are as shown in the table below. Table 2-1 Probe Attenuation Coefficient Menu Attenuation coefficient 0.01X 1:100 0.02X 1:50 0.05X...
Page 53: Waveform Invert
RIGOL 2 To Set the Vertical System Waveform Invert When waveform invert is enabled, the waveform display rotates 180 degree relative to the ground potential. When waveform invert is disabled, the waveform display is normal. Press CH1  Invert to enable or disable waveform invert.
Page 54: Vertical Expansion
RIGOL 2 To Set the Vertical System Vertical Expansion When using VERTICAL SCALE to change the vertical scale of the analog channel, you can choose to expand or compress the signal vertically around the center of the screen or the ground point of the signal.
Page 55: Channel Label
RIGOL 2 To Set the Vertical System Channel Label You can modify the labels used to mark the analog channels (CH1 and CH2) at the left side of the screen. The label is the number of the channel (such as ) by default and the length of the label can not exceed 4 characters.
Page 56: Delay Calibration
RIGOL 2 To Set the Vertical System Delay Calibration When using an oscilloscope for actual measurement, the transmission delay of the probe cable may bring relatively greater error (zero offset). DS2000 allows users to set a delay time to calibrate the zero offset of the corresponding channel. Zero offset is defined as the offset of the crossing point of the waveform and trigger level line relative to the trigger position, as shown below.
Page 57: To Set The Horizontal System
RIGOL 3 To Set the Horizontal System 3 To Set the Horizontal System The contents of this chapter: Delayed Sweep  Time Base Mode  Horizontal Scale  Horizontal Reference  DS2000 User’s Guide...
Page 58: Delayed Sweep
RIGOL 3 To Set the Horizontal System Delayed Sweep Delayed sweep can be used to enlarge a length of waveform horizontally to view the waveform details. MENU Press MENU in the horizontal control area (HORIZONTAL) at the front panel and press Delayed to enable or disable delayed sweep.
Page 59 RIGOL 3 To Set the Horizontal System In delayed sweep mode, the screen is divided into two display areas as shown in the figure below. The waveform before The waveform before enlargement enlargement Main time base Delayed Sweep Time Base...
Page 60: Time Base Mode
RIGOL 3 To Set the Horizontal System Time Base Mode Press MENU in the horizontal control area (HORIZONTAL) at the front panel and then press Time Base to select the time base mode of the oscilloscope and the default is Y-T.
Page 61: X-Y Mode
RIGOL 3 To Set the Horizontal System X-Y Mode In this mode, the oscilloscope changes the two channels from voltage-time display mode to voltage-voltage display mode. Wherein, the X axis and Y axis tracks the voltages of CH2 and CH1 respectively. The phase deviation between two signals with the same frequency can be easily measured via Lissajous method.
Page 62 RIGOL 3 To Set the Horizontal System monitor the input and output signals of the circuit. Application example: measure the phase deviation of the input signals of two channels. Method 1: Use Lissajous method Connect a sine signal to CH1 and then connect a sine signal with the same frequency and amplitude but a 90°...
Page 63 RIGOL 3 To Set the Horizontal System Note: In Y-T mode, the oscilloscope could use any sample rate (within the guaranteed  range) to capture waveform. The maximum sample rate of X-Y mode is 1.0 GSa/s. Generally, reducing the sample rate properly could improve the display effect of Lissajous figure.
Page 64: Roll Mode
RIGOL 3 To Set the Horizontal System Roll Mode In this mode, the waveform scrolls from the right to the left to update the display and the waveform horizontal position and trigger control are not available. The range of horizontal scale adjustment is from 200.0 ms to 1.000 ks.
Page 65: Horizontal Scale
RIGOL 3 To Set the Horizontal System Horizontal Scale Being similar to “Vertical Scale”, the horizontal scale can be adjusted in “Coarse” or “Fine” mode. Press MENU  ScaleAdjust in the horizontal control area (HORIZONTAL) at the front panel to select the desired mode. Turn HORIZONTAL SCALE to adjust the horizontal scale.
Page 66: Horizontal Reference
RIGOL 3 To Set the Horizontal System Horizontal Reference Horizontal reference is the reference position according to which the screen waveform expands or compresses horizontally when adjusting HORIZONTAL SCALE. In Y-T mode (this function is not available in X-Y mode and Roll mode), press MENU ...
Page 67 RIGOL 3 To Set the Horizontal System DS2000 User’s Guide 3-11...
Page 69: To Set The Sample System
RIGOL 4 To Set the Sample System 4 To Set the Sample System The contents of this chapter: Acquisition Mode  Sample Mode  Sample Rate  Memory Depth  Antialiasing  DS2000 User’s Guide...
Page 70: Acquisition Mode
RIGOL 4 To Set the Sample System Acquisition Mode The acquisition mode is used to control how to generate waveform points from sample points. Press Acquire  Acquisition in the function menu at the front panel and use to select the desired acquisition mode (the default is normal), then press down the knob to select this mode.
Page 71 RIGOL 4 To Set the Sample System number of averages as the power function of 2. The Waveform before Average: The Waveform after 256 Averages: DS2000 User’s Guide...
Page 72: Peak Detect
RIGOL 4 To Set the Sample System Peak Detect In this mode, the oscilloscope acquires the maximum and minimum values of the signal within the sample interval to get the envelope of the signal or the narrow pulse of the signal that might be lost. In this mode, signal confusion can be prevented but the noise displayed would be larger.
Page 73: Sample Mode
RIGOL 4 To Set the Sample System Sample Mode This oscilloscope only supports real-time sample. In this mode, the oscilloscope samples and displays waveform within a trigger event. The maximum real-time sample rate of DS2000 is 2 GSa/s and the current sample rate is displayed under the Sa Rate menu.
Page 74: Sample Rate
RIGOL 4 To Set the Sample System Sample Rate The sample rate of this oscilloscope is up to 2 GSa/s. Note that the sample rate is displayed in the status bar at the upper side of the screen and in the Sa Rate menu...
Page 75 RIGOL 4 To Set the Sample System Waveform Leakage: when the sample rate is too low, the waveform rebuilt from the sample data does not reflect all the actual signal information. Pulse disappeared DS2000 User’s Guide...
Page 76: Memory Depth
RIGOL 4 To Set the Sample System Memory Depth Memory depth refers to the number of waveform points that the oscilloscope can store in a single trigger sample and it reflects the storage ability of the sample memory. DS2000 provides up to 56 Mpts memory depth (option) and 14 Mpts standard memory depth.
Page 77: Antialiasing
RIGOL 4 To Set the Sample System Antialiasing At slower sweep speed, the sample rate is reduced and a dedicated display algorithm is used to minimize the possibility of aliasing. Press Acquire  Anti_Aliasing to enable or disable the antialiasing function. By default, antialiasing is disabled.
Page 79: To Trigger The Oscilloscope
RIGOL 5 To Trigger the Oscilloscope 5 To Trigger the Oscilloscope For trigger, you set certain trigger condition according to the requirement and when a waveform in the waveform stream meets this condition, the oscilloscope captures this waveform as well as the neighbouring part and displays them on the screen. For digital oscilloscope, it displays waveform continuously no matter whether it is stably triggered, but only stable trigger can ensures stable display.
Page 80: Trigger Source
RIGOL 5 To Trigger the Oscilloscope Trigger Source Press MENU  Source in the trigger control area (TRIGGER) at the front panel to select the desired trigger source. Siganls input from CH1/CH2 and the [EXT TRIG] connector as well as the AC Line can all be used as trigger source.
Page 81: Trigger Mode
RIGOL 5 To Trigger the Oscilloscope Trigger Mode Trigger mode affects the way in which the oscilloscope searches for the trigger. The following is the schematic diagram of the acquisition memory. As shown in the figure below, the position of the trigger event is determined by the reference time point and the delay setting.
Page 82 RIGOL 5 To Trigger the Oscilloscope Auto: No matter whether the trigger condition is met, there is always waveform display. A horizontal line is displayed when no signal is input. In this mode, the oscilloscope operates by first filling the pre-trigger buffer. It starts searching for a trigger after the pre-trigger buffer is filled and continues to flow data through this buffer while it searches for the trigger.
Page 83: Trigger Coupling
RIGOL 5 To Trigger the Oscilloscope Trigger Coupling Trigger coupling decides which kind of components will be transmitted to the trigger circuit. Please distinguish it with “Channel Coupling”. DC: allow DC and AC components into the trigger path.  AC: block all the DC components and attenuate signals lower than 8 Hz.
Page 84: Trigger Holdoff
RIGOL 5 To Trigger the Oscilloscope Trigger Holdoff Trigger holdoff can be used to stably trigger the complex waveforms (such as pulse series). Holdoff time is the amount of time that the oscilloscope waits before re-arming the trigger circuitry. The oscilloscope will not trigger until the holdoff time expires.
Page 85: Noise Rejection
RIGOL 5 To Trigger the Oscilloscope Noise Rejection Noise Rejection adds additional hysteresis to the trigger circuitry. Noise rejection reduces the possibility of noise trigger but also reduces the trigger sensitivity; therefore, a larger signal is required to trigger the oscilloscope.
Page 86: Trigger Type
RIGOL 5 To Trigger the Oscilloscope Trigger Type DS2000 provides various trigger functions, including various serial bus triggers. Edge Trigger  Pulse Trigger  Runt Trigger  Windows Trigger  Nth Edge Trigger  Slope Trigger  Video Trigger ...
Page 87: Edge Trigger
RIGOL 5 To Trigger the Oscilloscope Edge Trigger Trigger on the trigger threshold of the specified edge of the input signal. Trigger Type: Press Type to select “Edge”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 88 RIGOL 5 To Trigger the Oscilloscope turning the knob, the trigger level line and the trigger mark disappear in about 2 s. 5-10 DS2000 User’s Guide...
Page 89: Pulse Trigger
RIGOL 5 To Trigger the Oscilloscope Pulse Trigger Trigger on the positive or negative pulse with a specified width. Trigger Type: Press Type to select “Pulse”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 90 RIGOL 5 To Trigger the Oscilloscope Trigger level Positive pulse width When the Pulse Condition is set to , press  Setting and use to input the desired value. The range available is from 2 ns to 4 s. When the Pulse Condition is set to , press Upper Limit and ...
Page 91: Runt Trigger
RIGOL 5 To Trigger the Oscilloscope Runt Trigger This trigger mode is used to trigger pulses that pass through one trigger level but fails to pass through the other trigger level as shown in the figure below. Trigger Type: Press Type to select “Runt”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 92: Vertical Window
RIGOL 5 To Trigger the Oscilloscope <: trigger when the runt pulse width is lower than the upper limit of pulse width.  Press Upper Limit to set the maximum pulse width of runt trigger. The range available is from 2 ns to 4 s.
Page 93 RIGOL 5 To Trigger the Oscilloscope Trigger Setting: Press Setting to set the trigger parameters (trigger holdoff and noise rejection) under this trigger type. DS2000 User’s Guide 5-15...
Page 94: Windows Trigger
RIGOL 5 To Trigger the Oscilloscope Windows Trigger Windows trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level. Trigger Type: Press Type to select “Windows”.
Page 95 RIGOL 5 To Trigger the Oscilloscope Vertical Window: Press Vertical to select the desired vertical window type. For detailed operation, referto “Vertical Window” on page 5-14. Trigger Mode: Press Sweep to select the Trigger Mode (page 5-3) under this trigger type as auto, normal or single.
Page 96: Nth Edge Trigger
RIGOL 5 To Trigger the Oscilloscope Nth Edge Trigger Trigger on the nth edge that appears after the specified idle time, as shown in the figure below. Edge Type= Edge Num=2 P1/P2/P3<Idle Time<M Trigger Type: Press Type to select “Nth Edge”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 97 RIGOL 5 To Trigger the Oscilloscope Edge Number: Press Edge to set the value of “N” in Nth edge trigger and the range available is from 1 to 65535. Trigger Mode: Press Sweep to select the Trigger Mode (page 5-3) under this trigger type as auto, normal or single.
Page 98: Slope Trigger
RIGOL 5 To Trigger the Oscilloscope Slope Trigger Trigger on the positive or negative slope of specified time. Trigger Type: Press Type to select “Slope”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 99 RIGOL 5 To Trigger the Oscilloscope The upper limit of trigger level (Up Level) The lower limit of trigger level (Low Level) Positive Slope time When the Slope Condition is set to  press Time and use to input the desired value. The range available is from 10 ns to 1 s.
Page 100 RIGOL 5 To Trigger the Oscilloscope is selected. : only adjust the upper limit of the trigger level. During the adjustment,  “UP Level” and “Slew Rate” change accordingly but “Low Level” remains unchanged. : only adjust the lower limit of the trigger level. During the adjustment, ...
Page 101: Video Trigger
RIGOL 5 To Trigger the Oscilloscope Video Trigger Trigger on the standard video signal field or line of NTSC (National Television Standards Committee), PAL (Phase Alternating Line), SECAM (sequential color with memory) or HDTV (High Definition Television). Trigger Type: Press Type to select “Video”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 102 RIGOL 5 To Trigger the Oscilloscope PAL: the frame frequency is 25 frames per second. The TV sweep line is 625  with the odd field goes first and the even field follows behind. SECAM: the frame frequency is 25 frames per second. The sweep line is 625 ...
Page 103: Pattern Trigger
RIGOL 5 To Trigger the Oscilloscope Pattern Trigger Identify a trigger condition by looking for a specified pattern. This pattern is a logical “AND” combination of the two channels. Each channel can have a value of high (H), low (L) or don’t care (X). A rising or falling edge can be specified for one channel included in the pattern.
Page 104 RIGOL 5 To Trigger the Oscilloscope : set the pattern to the rising or falling edge of the channel selected.  Note: only one rising or falling edge can be specified in the pattern. If one edge item is currently defined and then another edge item is defined in another channel in the pattern, the former edge item defined will be replaced by X.
Page 105: Delay Trigger
RIGOL 5 To Trigger the Oscilloscope Delay Trigger Trigger when the time difference (△T) between the specified edges of source A and source B meets the preset time limit, as shown in the figure below. Note that edge A and edge B must be neighbouring edges.
Page 106 RIGOL 5 To Trigger the Oscilloscope Delay Type: Press DelayType to set the time limit condition of delay trigger. >: trigger when the time difference (△T) between the specified edges of source  A and source B is greater than the preset time limit. Press Time to set the delay time in delay trigger and the range is from 2 ns to 4 s.
Page 107: Timeout Trigger
RIGOL 5 To Trigger the Oscilloscope TimeOut Trigger Trigger when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the neighbouring falling edge (or rising edge) passes through the trigger level is greater than the timeout time set, as shown in the figure below.
Page 108 RIGOL 5 To Trigger the Oscilloscope Timeout Time: Press TimeOut to set the timeout time of timeout trigger and the range is from 16 ns to 4 s. Trigger Mode: Press Sweep to select the Trigger Mode (page 5-3) under this trigger type as auto, normal or single.
Page 109: Duration Trigger
RIGOL 5 To Trigger the Oscilloscope Duration Trigger Identify a trigger condition by looking for the duration of a specified pattern. This pattern is a logical “AND” combination of the two channels. Each channel can have a value of high (H), low (L) or don’t care (X). The instrument triggers when the duration (△T) of this pattern meets the preset time, as shown in the figure below.
Page 110 RIGOL 5 To Trigger the Oscilloscope Trigger Condition: Press When to select the desired trigger condition. >: trigger when the duration of the pattern is greater than the preset time.  Press Time to set the duration of duration trigger and the range is from 2 ns to 4 s.
Page 111: Setup/Hold Trigger
RIGOL 5 To Trigger the Oscilloscope Setup/Hold Trigger Trigger when the internal state of the setup or hold time relative to the clock edge is changed by the logic data input, namely trigger when the setup time (△T1) is less than the preset setup time or when the hold time (△T2) is less than the preset hold...
Page 112 RIGOL 5 To Trigger the Oscilloscope Setup Type: Press SetupType to select the desired setup type. Setup: set the time that the data stays stable and constant before the clock  edge appears. Press Setup to set the setup time and the range is from 2 ns to 1 Hold: set the time that the data stays stable and constant after the clock edge ...
Page 113: Rs232 Trigger
RIGOL 5 To Trigger the Oscilloscope RS232 Trigger Trigger according to the start frame, error frame, check error or data. Below is the explanatory figure of RS232 protocol. Trigger Type: Press Type to select “RS232”. At this point, the trigger setting information as shown in the figure below is displayed at the upper right corner of the screen.
Page 114 RIGOL 5 To Trigger the Oscilloscope --press Data and input the data value according to the setting in Data Bits and the upper limits are 31, 63, 127 and 255 respectively. Baud Rate: Set the baud rate of data transmmision (equal to specifying a clock frequency). Press Baud to set the desired baud rate to 2400 bps, 4800 bps, 9600 bps (default), 19200 bps, 38400 bps, 57600 bps, 115200 bps and user-defined.
Page 115: I2C Trigger
RIGOL 5 To Trigger the Oscilloscope I2C Trigger Trigger on the start condition, restart, stop, missing acknowledgement or on the read/write frame with specific device address and data value. In I2C trigger, you need to specify the SCL and SDA data sources. The figure below shows the complete data transmission of I2C bus.
Page 116 RIGOL 5 To Trigger the Oscilloscope behind the preset address (Write, Read or R/W direction). After this trigger condition is selected: --press AddrBits to select “7 bit” or “10 bit”; --press Address to set the address value according to the setting in AddrBits and the ranges are from 0 to 127 and from 0 to 1023 respectively;...
Page 117 RIGOL 5 To Trigger the Oscilloscope Trigger Level: Use TRIGGER LEVEL to modify the trigger level of SCL or SDA channel. For details, please refer to the description of “Trigger Level” on page 5-9. DS2000 User’s Guide 5-39...
Page 118: Spi Trigger
RIGOL 5 To Trigger the Oscilloscope SPI Trigger Trigger on the data pattern on the specified edge. When using SPI trigger, you need to specify the SCL and SDA data sources. Below is the sequence chart of SPI bus data transmission.
Page 119 RIGOL 5 To Trigger the Oscilloscope can be set to any integer between 4 and 32. Press CurrentBit to set the number of the data bit and the range is from 0 to  (value sepecified in Data Bits – 1).
Page 120: Usb Trigger
RIGOL 5 To Trigger the Oscilloscope USB Trigger Trigger on the SOP, EOP, RC, Suspend and Exit Suspend of the data packet on the differential USB data cable (D+ and D-). This trigger supports USB Low Speed and Full Speed. The figure below shows the USB data transmission protocol.
Page 121 RIGOL 5 To Trigger the Oscilloscope normal or single. The corresponding status light of the current trigger mode turns on. Trigger Setting: Press Setting to set the trigger parameter (noise rejection) under this trigger type. Trigger Level: Use TRIGGER LEVEL to modify the level. For details, please refer to the description of “Trigger Level”...
Page 122: Trigger Output Connector
RIGOL 5 To Trigger the Oscilloscope Trigger Output Connector The trigger output connector at the rear panel can output trigger signals determined by the current setting. Trigger Output Connector Press Utility  AuxOutput to select “TrigOut”. When the oscilloscope is triggered, it will output a trigger signal determined by the current trigger setting through the [Trigger Out] connector.
Page 123: To Make Measurements
RIGOL 6 To Make Measurements 6 To Make Measurements DS2000 can make math operation, cursor measurement and auto measurement on sampled and displayed data. The contents of this chapter: Math Operation  Auto Measurement  Cursor Measurement  DS2000 User’s Guide...
Page 124: Math Operation
RIGOL 6 To Make Measurements Math Operation DS2000 can realize various math operations (including: addition (A+B), subtraction (A-B), multiplication (AxB), division (A÷B), FFT, logic operation and advanced operation) of waveforms between channels. The results of math operation also allows further measurement (for details, please refer to “Cursor Measurement”).
Page 125: Substraction
RIGOL 6 To Make Measurements Substraction Subtract the waveform voltage values of signal source B from that of source A point by point and display the results. Press MATH  Operate to select “A-B”: Press Source A and Source B to select the desired channels (CH1 or CH2).
Page 126: Division
RIGOL 6 To Make Measurements Division Divide the waveform voltage values of signal source A by that of source B point by point and display the results. It can be used to analyze the multiple relationships of waveforms in two channels. Note that when the voltage value of channel B is 0, the result of the division is treated as 0.
Page 127: Fft
RIGOL 6 To Make Measurements FFT is used to quickly perform Fourier transform on specified signals and transform time domain signals to frequency domain signals. FFT operation can facilitate the following works: Measure harmonic components and distortion in the system ...
Page 128 RIGOL 6 To Make Measurements characteristics. Press Window to select the desired window function and the default is “Rectangle”. Table 6-1 Window Functions Waveforms Suitable for Window Characteristics Measurement The best frequency Transient or short pulse, the signal Rectangle resolution;...
Page 129 RIGOL 6 To Make Measurements Set the Vertical Scale In FFT measurement, the unit of the horizontal axis changes from time to frequency. Use HORIZONTAL SCALE and HORIZONTAL POSITION to set the scale and position of the horizontal axis respectively.
Page 130: Logic Operation
RIGOL 6 To Make Measurements Logic Operation Perform logic operation on the waveform voltage values of the specified sources point by point and display the results. In operation, when the voltage value of the source channel is greater than the threshold of the corresponding channel, it is regarded as logic “1”;...
Page 131 RIGOL 6 To Make Measurements Press MATH  Operate to select “Logic”: Press Log.Formula to select the desired operation expression and the default is  “AND”. Press Source A and Source B to select the desired channels (CH1 or CH2).
Page 132: Advanced Operation
RIGOL 6 To Make Measurements Advanced Operation DS2000 provides advanced operation function that allows users to define operation functions. Press MATH  Operate  “Advanced”  Expression  “ON” and the editing window as shown in the figure below is displayed.
Page 133 RIGOL 6 To Make Measurements Channel You can select any channel (CH1 or CH2). Function Please refer to the following table to get the functions of each function. Note that the left brackets “(” here are only used to facilitate your entry and they are not a part of the function names.
Page 134 RIGOL 6 To Make Measurements with 10 as the bottom number in the variables. The range is from -9 to 9. For example, Variable1 is set to 6.1074×10 via the following settings. Variable: Variable1 Mantissa: 6.1074 Exponent: Operator Please refer to the following table to get the functions of each operator.
Page 135: Auto Measurement
RIGOL 6 To Make Measurements Auto Measurement DS2000 provides auto measurements of 24 waveform parameters and the statistics and analysis of the measurement results. What’s more, you can also use the frequency counter to realize more precise frequency measurement. MENU...
Page 136 RIGOL 6 To Make Measurements this softkey is pressed, the quick parameter measurement items might not be displayed in the pop-up menu. 6-14 DS2000 User’s Guide...
Page 137: One-Key Measurement Of 24 Parameters
RIGOL 6 To Make Measurements One-key Measurement of 24 Parameters Press MENU at the left of the screen to turn on the measurement menu of the 24 parameters and then press the corresponding menu softkey to quickly realize “One-key” measurement. The measurement result will be displayed at the bottom of the screen.
Page 138 RIGOL 6 To Make Measurements Time Parameters RiseTime FallTime +Width -Width Period Period: defined as the time between the middle threshold points of two consecutive, like-polarity edges. Frequency: defined as the reciprocal of period. Rise Time: the time for the signal amplitude to rise from 10% to 90%.
Page 139 RIGOL 6 To Make Measurements Delay and Phase Period Source A Delay Source B Source A and source B can be CH1 or CH2. Delay A→B : the time difference between the rising edges of source A and source B. Negative delay indicates that the selected rising edge of source A occurred after the selected edge of source B.
Page 140 RIGOL 6 To Make Measurements Voltage Parameters Overshoot Vmax Vtop Vamp Vbase Vmin Preshoot Vmax: the voltage value from the highest point of the waveform to the GND. Vmin: the voltage value from the lowest point of the waveform to the GND.
Page 141 RIGOL 6 To Make Measurements the waveform to the amplitude value. 10. Preshoot: the ratio of the difference of the minimum value and base value of the waveform to the amplitude value. DS2000 User’s Guide 6-19...
Page 142: Other Parameters
RIGOL 6 To Make Measurements Other Parameters Area: the area of the whole waveform within the screen and the unit is voltage-second. The area meadured above the zero reference (namely the vertical offset) is positive and the area measured below the zero reference is negative.
Page 143: Frequency Counter Measurement
RIGOL 6 To Make Measurements Frequency Counter Measurement The hardware frequency counter supplied with this oscilloscope can make more precise measurement of the input signal frequency. Press Measure  Counter to select CH1 or CH2 as the measurement source. The measurement result is displayed at the upper right corner of the screen and you can identify the current measurement source according to the color of the icon.
Page 144: Measurement Setting
RIGOL 6 To Make Measurements Measurement Setting Source Selection Press Measure  Source to select the desired channel for measurement (CH1, CH2 or MATH). The color of the parameter icons under MENU at the left of the screen will change with the source selected.
Page 145 RIGOL 6 To Make Measurements Phase Measurement Setting Specify the source A and source B in the measurement items “Phase A→B ” and “Phase A→B ”. Press Measure  Meas.Setting  Type  “Phase” and then press SourceA and SourceB to set the two channel sources (CH1 or CH2) of phase measurement respectively.
Page 146: To Clear The Measurement
RIGOL 6 To Make Measurements To Clear the Measurement If you have currently enabled one or more items in the 24 measurement parameters, you can “Delete” or “Recover” the first five parameters or “Delete” or “Recover” all the measurement items enabled. Note that the first five parameters are determined according to the order in which you turned them on and they will not change as you delete one or more measurement items.
Page 147: All Measurement
RIGOL 6 To Make Measurements All Measurement All measurement could measure all the time and voltage parameters (each measurement source has 20 items, measurements can be performed on CH1, CH2 and MATH at the same time) of the current measurement source and display the results on the screen.
Page 148: Statistic Function
RIGOL 6 To Make Measurements Statistic Function Make statistic and display the current, average, minimum (or standard deviation) and maximum (or count) values of at most 5 measurement items that are turned on last. Press Measure  Statistic to turn the statistic function on or off. When the statistic function is enabled, press StatisSel to select “Extremum”...
Page 149: Measurement History
RIGOL 6 To Make Measurements Measurement History To view the history measurement data, press Measure MeasHistory  MeasHistory  “ON”. The history data can be displayed in two modes: Graph: display the results of the last 10 measurements of at most 5 ...
Page 150: Cursor Measurement
RIGOL 6 To Make Measurements Cursor Measurement Cursors are the horizontal and vertical marks that can be used to measure the X axis values (usually Time) and Y axis values (usually Voltage) on a selected waveform. Please connect the signal to the oscilloscope and obtain stable display before using cursor measurement.
Page 151: Manual Mode
RIGOL 6 To Make Measurements Manual Mode In this mode, a pair of cursors will appear. You can adjust the cursors manually to measure the X (or Y), X increment (or Y increment) between cursors and the reciprocal of X increment on the waveform of the selected source (CH1, CH2 or MATH).
Page 152 RIGOL 6 To Make Measurements Select X (Y) Axis Unit When the cursor type is “Time”, press Time Unit to select “s”, “Hz”, “°” or “%”. △X are in “s” and 1/△X is in “Hz”. s: when this unit is selected, in the measurement results, CurA, CurB and ...
Page 153 RIGOL 6 To Make Measurements adjust the position of cursor A and B at the same time. During the adjustment, the measurement results will change accordingly. The adjustable range is limited within the screen. Measurement Example Use manual cursor measurement to measure the period (△X) of a square waveform and the result is 1 ms equaling the result from auto measurement.
Page 154: Track Mode
RIGOL 6 To Make Measurements Track Mode In this mode, one or two pairs of cursors will appear. You can adjust the two pairs of cursors (cursor A and cursor B) to measure the X and Y values on two different sources respectively.
Page 155 RIGOL 6 To Make Measurements If needed, please refer to the following steps to modify manual cursor track measurement parameters. Select Measurement Source Press Cursor A to select the waveform of analog channels (CH1 or CH2) or math operation results (MATH) as the measurement source of cursor A (only channels enabled are available).
Page 156 RIGOL 6 To Make Measurements Cursor Track (Before Horizontal Expansion): Cursor Track (After Horizontal Expansion): 6-34 DS2000 User’s Guide...
Page 157: Auto Mode
RIGOL 6 To Make Measurements Auto Mode In this mode, one or more cursors will appear. You can use auto cursor measurement to measure any of the 24 waveform parameters. Before using this mode, you need to at least enable one auto measurement parameter and the number of cursors will change with the measurement parameter enabled.
Page 159: Protocol Decoding
RIGOL 7 Protocol Decoding 7 Protocol Decoding Protocol analysis can be used by users to discover errors, debug hardware and accelerate development easily, so as to guarantee quick and high-quality accomplishment of projects. Protocol decoding is the basis of protocol analysis. Only protocol analyses with correct protocol decoding are acceptable and only correct protocol decoding can provide more error information.
Page 160: Parallel Decoding
RIGOL 7 Protocol Decoding Parallel Decoding Parallel bus consists of clock line and data line. As shown in the figure below, CLK is the clock line, while Bit0 and Bit1 are the 0 bit and 1st bit on the data line respectively.
Page 161 RIGOL 7 Protocol Decoding example, when the bus bits is 20, the range available is 0, 1…19. Next, press Channel to specify a channel source for the bit currently selected in CurrentBit. Analog Channel Threshold Setting To judge logic “1” and logic “0” of the buses, you need to set a threshold for each analog channel (CH1 and CH2).
Page 162 RIGOL 7 Protocol Decoding Decoding Table The decoding table displays the decoded data and the corresponding line number and time in table format. It can be used to observe relatively longer decoded data to solve the problem that some data could not be seen clearly on the screen.
Page 163: Rs232 Decoding (Option)
RIGOL 7 Protocol Decoding RS232 Decoding (Option) RS232 serial bus consists of the transmitting data line (TX) and the receiving data line (RX). DeviceA DeviceB The industry standard of RS232 uses “Negative Logic”, namely high level is logic “0” and low level is logic “1”.
Page 164 RIGOL 7 Protocol Decoding Data Bit Start Bit: represent when the data starts outputting. Setting the Polarity is equivalent to specifying the “Start Bit”. Data Bits: represent the number of data bits actually contained in each frame of data. Check Bit: used to check the correctness of the data transmission.
Page 165 RIGOL 7 Protocol Decoding Data Packet Setting As mentioned before, in RS232, you need to set the start bit, data bits, check bit (optional) and stop bit of each frame of data. “Start Bit” is specified by the “Polarity Setting”. The setting methods of other parameters are as follows.
Page 166 RIGOL 7 Protocol Decoding The Error Expression during Decoding DS2000 makes full use of the resources such as color and view to express the results of the protocol decoding effectively so as to let users find the desired information quickly.
Page 167 RIGOL 7 Protocol Decoding Check Error: When check bit error is detected during the decoding, red error mark will be displayed. For example, when the transmitting terminal is set to none check and the decoder is set to odd check, the following check error occurs.
Page 168: I2C Decoding (Option)
RIGOL 7 Protocol Decoding I2C Decoding (Option) I2C serial bus consists of the clock line (SCLK) and the data line (SDA). SCLK Device Host SCLK SCLK: sample the SDA on the clock rising edge or falling edge. SDA: denote the data channel.
Page 169 RIGOL 7 Protocol Decoding Press BusStatus to turn the bus display on or off. Decoding Table The decoding table displays the decoded data, the corresponding line number, time, data direction, ID and ACK information in table format. Press Event Table  Event Table to select “ON” (note that this operation is only available when BusStatus is set to “ON”) to enter the decoding table...
Page 170 RIGOL 7 Protocol Decoding When the ACK (ACKnowledge Character) is not met, the red error marks as shown in the figure below will be displayed. ACK=1 7-12 DS2000 User’s Guide...
Page 171: Spi Decoding (Option)
RIGOL 7 Protocol Decoding SPI Decoding (Option) SPI serial bus consists of clock line (SCLK) and data line (SDA). Host Device SCLK SCLK SCLK SCLK: sample the SDA on the clock rising edge or falling edge. SDA: denote the data channel.
Page 172 RIGOL 7 Protocol Decoding Endian Setting Press Endian to select “LSB” or “MSB” and the default is “MSB”. Display-related Setting Press Format to set the display format of the bus to Hex, Decimal, Binary or ASCII. Press Offset and use to adjust the vertical display position of the bus.
Page 173 RIGOL 7 Protocol Decoding enough for 7 bits DS2000 User’s Guide 7-15...
Page 175: Reference Waveform
RIGOL 8 Reference Waveform 8 Reference Waveform In actual testing process, the waveform being tested can be compared with the reference waveform to judge the causes of failures. The contents of this chapter: To Enable REF Function  To Set the Color ...
Page 176: To Enable Ref Function
RIGOL 8 Reference Waveform To Enable REF Function Press REF in the vertical control area (VERTICAL) at the front panel to enable the REF function. Note that when the time base is in X-Y mode, REF function can not be enabled.
Page 177: To Set The Color
RIGOL 8 Reference Waveform To Set the Color DS2000 series oscilloscope provides five colors (gray, green, light blue, magenta and orange) to mark the reference waveforms of different channels in order to distinguish them. Press Current and use to select any of the reference channels (Ref1-Ref10) enabled.
Page 178: To Adjust Ref Waveform Display
RIGOL 8 Reference Waveform To Adjust REF Waveform Display To adjust the reference waveform specified in Current: Press REF to enable the REF function. Then, press and use to adjust the vertical position of the reference waveform and press and use to adjust the vertical scale of the reference waveform.
Page 179: Pass/Fail Test
RIGOL 9 Pass/Fail Test 9 Pass/Fail Test Monitor the change of the signal by judging whether the input signal is within the mask created. The test results can be displayed on the screen as well as be declared through the system sound or the pulse signal output from the [Trigger Out] connector at the rear panel.
Page 180: To Enable Pass/Fail Test
RIGOL 9 Pass/Fail Test To Enable Pass/Fail Test Press Utility  Pass/Fail  Enable Test to select “ON”. Note that when the time base is in X-Y mode, the Pass/Fail test function can not be enabled. Utility To start testing, press Enable Test and select “ON”. Then, press Operate to select “...
Page 181: Test And Ouput
RIGOL 9 Pass/Fail Test the two cursor lines respectively. Or, press CursorAB and use to adjust the positions of cursor A and curcor B at the same time. Note that you can press down continuously to switch the current cursor.
Page 182: To Save The Test Mask
RIGOL 9 Pass/Fail Test the screen (if display is turned on) and only one pulse is output from the [Trigger Out] connector (if enabled) at the rear panel. OFF: the oscilloscope will continue with the test even though failed waveforms ...
Page 183: To Load The Test Mask
RIGOL 9 Pass/Fail Test To Load the Test Mask Users can also load the test mask files (*.pf) stored in the internal Flash memory or external USB storage device to the internal memory. Press Load to enter the file recall interface. Please refer to the relative descriptions in “Store and Recall”...
Page 185: 10 Waveform Record
RIGOL 10 Waveform Record 10 Waveform Record Waveform record can record the waveforms of the input channels (CH1 and CH2). In record constant on (open) mode, the oscilloscope can record the input waveform contimuously until users press RUN/STOP. Waveform playback and analysis can provide better waveform analysis effect.
Page 186: Waveform Record
RIGOL 10 Waveform Record Waveform Record Waveforms from both the channels currently turned on will be recorded during waveform record. Utility Navigation Knob (Playback) Waveform Record Play/Pause (Playback) Stop Recording (Playback)/OFF Press Utility  Record  Mode and use to select “Record” to open the waveform record operation menu.
Page 187 RIGOL 10 Waveform Record Interval Set the time interval between the frames in waveform record and the range available is from 100 ns to 10 s. Total Frames The menu shows the maximum number of frames that can be recorded currently.
Page 188: Record Constant On
RIGOL 10 Waveform Record Record Constant On DS2000 provides record “Open” (record constant on) mode for waveform record. When this mode is enabled, the oscilloscope records the waveform continuously according to the current memory depth. The length of waveform recorded is limited by the memory depth and the waveform data recorded before will be overwritten by the waveform currently recorded.
Page 189 RIGOL 10 Waveform Record Enable record constant on mode. Press RUN/STOP to stop the record. Analyze the waveform recorded using waveform analysis and as shown in the figure below, the runt pulses are captured. DS2000 User’s Guide 10-5...
Page 190: Waveform Playback
RIGOL 10 Waveform Record Waveform Playback Waveform playback can play back the waveforms currently recorded. Press Utility  Record  Mode and use to select “Play back”. At this point, the information as shown in the figure below is displayed at the upper right corner of the screen, indicating the specific frame currently displayed on the screen.
Page 191 RIGOL 10 Waveform Record End Frame Press this softkey and use to set the end frame of the playback. The default is the total number of frames of the waveform recorded. Playback Operation Waveform playback can be realized through the menu or the shortcut buttons at the front panel.
Page 192: Waveform Analysis
RIGOL 10 Waveform Record Waveform Analysis This function is used to analyze the recorded waveform. Press Utility Record  Mode and use to select “Analyze” to open the waveform analysis menu. At this point, the screen is divided into two display areas as shown in the figure below.
Page 193 RIGOL 10 Waveform Record the progress bar is displayed and the parameters can not be modified. After the analysis finishes, the analysis results of “Error Frames”, “Current Error” and “CurFrame Diff” are displayed; at the same time, the first error frame is located as shown in the figure below.
Page 194 RIGOL 10 Waveform Record Cancel During the analysis, users can press Cancel to stop the analysis and press Start again to restart the analysis. Previous After the waveform analysis finishes, pressing Previous can locate the error frame previous to the current error frame. Pressing RUN/STOP can also perform the operation.
Page 195 RIGOL 10 Waveform Record Time Tag The time tag is used to display the absolute recording time of each frame of the waveform currently recorded. Press Time Tag to enable or disable the time tag function. When it is enabled, the time tag information is displayed at the upper right corner of the screen as shown in the figure below.
Page 196: Analysis Based On Trace
RIGOL 10 Waveform Record Analysis Based on Trace Press Analyze and select “Trace”. Then, set the templet used in analysis based on trace through the method below. Trace Press Trace to select the creation method of analysis templet. Current Frame: select the current frame as the analysis templet.
Page 197: Analysis Based On Pass/Fail Mask
RIGOL 10 Waveform Record Analysis Based on Pass/Fail Mask Press Analyze and select “Pass/Fail”. Then, set the templet used in analysis based on Pass/Fail mask through the method below. Press MaskRange to open the following setting menus. Mask Range Press this softkey to select “Screen Region” or “Cursor Region” for the analysis (the default is “Screen Region”).
Page 198 RIGOL 10 Waveform Record Create Mask Mask is the templet used in waveform analysis. Press Create Mask to immediately apply the mask (X Mask and Y Mask) currently created. Users can store the current test mask into the internal Flash memory or external USB storage device or load the test mask file (*.pf) stored in the internal Flash memory or...
Page 199: 11 Display Control
RIGOL 11 Display Control 11 Display Control You can set the type, persistence time and brightness of waveform display as well as the grid type, grid brightness of the screen display and the menu display time. The contents of this chapter: To Select the Display Type ...
Page 200: To Select The Display Type
RIGOL 11 Display Control To Select the Display Type Display Press Display  Type to set the waveform display mode to “Vectors” or “Dots”. Vectors: the sample points are connected by lines and displayed. Normally, this  mode can provide the most vivid waveform to view the steep edge of the waveform (such as square waveform).
Page 201: To Set The Persistence Time
RIGOL 11 Display Control To Set the Persistence Time Press Display  Persis.Time to set the persistence time of the oscilloscope to Min, specific values (from 50 ms to 20 s) or Infinite. In the following part, a frequency sweep signal of the sine waveform is used to demonstrate the waveform effects in different persistence times.
Page 202 RIGOL 11 Display Control Infinite In this mode, the oscilloscope displays the waveform newly acquired without clearing the waveforms acquired formerly. The waveforms acquired formerly will be displayed in relatively low-brightness color and the waveform newly acquired will be displayed in normal brightness and color. Infinite persistence can be used to measure noise and jitter and to capture incidental events.
Page 203: To Set The Waveform Intensity
RIGOL 11 Display Control To Set the Waveform Intensity Press Display  WaveIntensity or turn when the menu is hidden to adjust the waveform brightness of the analog channel. The default is 50% and the range available is from 0% to 100%.
Page 205: 12 Store And Recall
RIGOL 12 Store and Recall 12 Store and Recall Users can save the current settings, waveforms, and screen image of the oscilloscope in internal memory or external USB mass storage device (such as USB storage device) in various formats and recall the stored settings or waveforms when needed.
Page 206: Storage System
RIGOL 12 Store and Recall Storage System Press Storage to enter the store and recall setting interface. Storage Insert the USB storage device This oscilloscope provides a USB Host interface at the front panel to connect USB storage device for external storage. The USB storage device connected is marked as “Disk D”.
Page 207: Storage Type
RIGOL 12 Store and Recall Storage Type Press Storage  Storage to select the desired storage type. The default is “Traces”. The storage and recall descriptions of each type are as follows. Traces Save the waveform data in external memory in “*.trc” format. The data of all the channels turned on can be saved in the same file.
Page 208 RIGOL 12 Store and Recall Save the waveform data displayed on the screen or of the specified channels in external memory in a single “*.csv” file. You can specify the file name and the saving directory and save the corresponding parameter file (*.txt) under the same directory using the same file name.
Page 209: Internal Storage And Recall
RIGOL 12 Store and Recall Internal Storage and Recall Internal storage and recall support “Setups” in Storage. In the following part, the storage and recall method and procedures are introduced. Save the specified oscilloscope setting in internal memory. 1) Connect the signal to the oscilloscope and obtain stable display.
Page 210 RIGOL 12 Store and Recall Note: in internal storage, New File and New Folder are not available. Load the specified type of file in internal memory. 1) Press Storage  Storage to select “Setups” and then press Load to turn on the interface as shown in Figure c.
Page 211: External Storage And Recall
RIGOL 12 Store and Recall External Storage and Recall Before using external storage and recall, make sure that the USB storage device is connected correctly. External storage supports all the types of files in Storage but in recall, “Picture” and “CSV” are not supported.
Page 212 RIGOL 12 Store and Recall New File or Folder” to create a new file name. Figure g 5) Press OK to execute the saving operation. Load the specified type of file in the external USB storage device. 1) Press Storage  Storage to select “Traces” and then press Load to turn on the interface as shown in Figure h.
Page 213 RIGOL 12 Store and Recall 2) As shown in Figure i, use to select the desired file to load and then press Load to load the selected file. Figure i DS2000 User’s Guide 12-9...
Page 214: Disk Management
RIGOL 12 Store and Recall Disk Management Press Storage  Disk.Manage to turn on the disk management interface as shown in the figure below and use to select the desired disk. The disk currently selected is displayed in green and press down to open the disk selected.
Page 215: To Select File Type
RIGOL 12 Store and Recall To Select File Type Except the file types in Storage, the oscilloscope can also display, save or read some files for advanced applications such as mask file of the Pass/Fail test (*.pf), waveform record file (*.rec), upgrade file (.rgl), parameter file (*.txt) and reference waveform file (*.ref).
Page 216: To Create A New File Or Folder
RIGOL 12 Store and Recall To Create a New File or Folder This operation is only valid in external storage. Before using external disk, make sure that the USB storage device is connected correctly. First, press Storage  Disk.Manage and use to select and open the external disk (“Disk D”).
Page 217 RIGOL 12 Store and Recall English Input Method For example, create a file or folder with the name “Filename”. Press Keyboard. 1) Use to select English input method “En” and uppercase input state “ A”. to input the letter “F”. If the input is wrong, press Delete to delete 2) Use the character input.
Page 218 RIGOL 12 Store and Recall Chinese Input Method For example, create a file or folder with the name “文件名”. Press Keyboard. to select Chinese input method “中”. Note that Chinese is added in 1) Use the menu items at the right of the screen.
Page 219: To Delete A File Or Folder
RIGOL 12 Store and Recall To Delete a File or Folder Folder operation is valid only in external storage. Before using the external disk, make sure that the USB storage device is connected correctly. 1． Delete a file in internal memory.
Page 220: To Rename A File Or Folder
RIGOL 12 Store and Recall To Rename a File or Folder Rename operation is valid only in external storage. Before using the external disk, make sure that the USB storage device is connected correctly. Press Storage  Disk.Manage and use to select and open the external disk (“Disk D”).
Page 221: Factory
RIGOL 12 Store and Recall Factory Press Storage Default to return the oscilloscope to its factory state (refer to the table below). Table 12-2 Factory Parameter Factory Horizontal Setting (HORIZONTAL) Vertical Setting (VERTICAL) Acquisition Setting (Acquire) Trigger Setting (TRIGGER) Display Setting (Display)
Page 222 RIGOL 12 Store and Recall Amplitude Scale Coarse Channel Unit Acquisition Setting (Acquire) Acquisition Mode Normal Sampling Mode Real Time Memory Depth Auto Anti-Aliasing Trigger Setting (TRIGGER) Trigger Type Edge Source Slope Rising Edge Trigger Mode Auto Trigger Coupling Trigger Holdoff...
Page 223 RIGOL 12 Store and Recall Cursor B CurA -4*1 μs CurB 4*1 μs Storage Setting (Storage) Storage Type Traces Utility Function Setting (Utility) I/O Setting Network DHCP, Auto IP Configuration Mode USB Device Computer Sound Sound Pass/Fail Test Enable Test...
Page 224 RIGOL 12 Store and Recall Analyze Analysis Mode Trace Source Trace Mode Current Frame Current Frame Templet Display Time Tag System Setting Vertical Expansion Ground Screen Saver Default Screen Saver Time TrigOut Math Operation Setting (MATH->Operation) Operate Source A Source B...
Page 225 RIGOL 12 Store and Recall Source Window Function Rectangle Display Split Scale dBVrms Vertical Scale 10.0 dBVrms/div Horizontal Scale 5 MHz/div Sample Rate 100 MSa/s Logic Operation Expression Source A Source B Invert Vertical Scale Threshold A Threshold B Advanced Operation...
Page 226 RIGOL 12 Store and Recall Endian Baud 9600 bps Data Bits Stop Bit Even-Odd Check None Packet Packet End 00 (NULL) SCLK SCLK Channel SCLK Slope Rising Edge SDA Channel SDA Polarity Reference Waveform Setting (REF) Channel Setting REF1 Current Channel...
Page 227: 13 System Function Setting
RIGOL 13 System Function Setting 13 System Function Setting The contents of this chapter: Remote Interface Configuration  System-related  13-1 DS2000 User’s Guide...
Page 228: Remote Interface Configuration
Remote Interface Configuration DS2000 can communicate with PC via LAN, USB and GPIB (with the USB-GPIB interface converter provided by RIGOL) buses. Please refer to the introduction below to configure the corresponding interface before using the remote interfaces. LAN Setting Press Utility ...
Page 229 RIGOL 13 System Function Setting IP Configuration Type (DHCP) The configuration type of the IP address can be DHCP, auto IP or static IP. In different IP configuration type, the configuration mode of the network parameters (such as the IP address) is different.
Page 230 RIGOL 13 System Function Setting Set the IP Address The format of IP address is nnn.nnn.nnn.nnn; wherein, the range of the first nnn is from 0 to 223 (except 127) and the ranges of the other three nnn are from 0 to 255. You are recommended to ask your network administrator for an IP address available.
Page 231 RIGOL 13 System Function Setting Set the Domain Name Server You can set this paramter In Auto IP and Static IP mode. The address format of the domain name server is nnn.nnn.nnn.nnn; wherein, the range of the first nnn is from 0 to 223 (except 127) and the ranges of the other three nnn are from 0 to 255.
Page 232: Usb Device
RIGOL 13 System Function Setting USB Device This oscilloscope can communicate with PC or PictBridge printer via the USB Device interface at the rear panel. You need to set the oscilloscope to make it match with different device types. Press Utility  IO Setting  USB Device and use to select the desired device type.
Page 233: System-Related
RIGOL 13 System Function Setting System-related Sound When the sound is enabled, you can hear the sound of the beeper when you press a function key or a menu softkey or when the prompt message pops up. Press Utility  Sound to select (on) or (off).
Page 234: System Information
RIGOL 13 System Function Setting System Information Press Utility  System  System Info to view the version information of your oscilloscope. The system information contains the following contents as shown in the figure below. Power-off Recall You can set the system configuration to be recalled when the oscilloscope is powered on again after power-off.
Page 235: System Time
RIGOL 13 System Function Setting System Time The system time is displayed at the lower right corner of the screen in “hh:mm (hour:minute)” format. When printing or storing a waveform, the file output will contain this time information. Press Utility  System  System Time  System Time to turn on the setting interface as follows.
Page 236: Screen
Press Utility  System  Screen to open the screen saver setting menu. “Default” means using the icon RIGOL as the screen saver icon. Press Time to select the screen saver time. When “OFF” is selected, the screen saver program is disabled.
Page 237: Self-Calibration
RIGOL 13 System Function Setting Self-calibration The self-calibration program can quickly make the oscilloscope reach the best working state to get the most precise measurement values. You can perform self-calibration at any time especially when the change of the environment temperature is up to or more than 5 ℃.
Page 238: Aux Output
RIGOL 13 System Function Setting Aux Output Users can set the type of the signal output from the [Trigger Out] connector at the rear panel. Press Utility  AuxOutput to select the desired output type. TrigOut After this type is selected, the oscilloscope outputs a signal that can reflect the current capture rate of the oscilloscope at each trigger.
Page 239: Option Management
Option Management This oscilloscope provides multiple options to fulfill your measurement requirements. Please contact your RIGOL sales representative or RIGOL technical support to order the corresponding options. You can view the options currently installed on the oscilloscope or activate the newly bought option serial number through this menu.
Page 241: 14 Remote Control
Programming Guide. Use PC software provided by RIGOL or other manufacturers Users can use the PC software Ultra Sigma of RIGOL, Measurement & Automation Explorer of NI (National Instruments Corporation) or Agilent IO Libraries Suite of Agilent (Agilent Technologies, Inc.) to send commands to...
Page 242: Remote Control Via Usb
RIGOL 14 Remote Control Remote Control via USB Connect the device Connect the oscilloscope (USB DEVICE) with your PC using a USB cable. Install the USB driver This oscilloscope is a USBTMC device. Assuming that your PC has already been...
Page 243 RIGOL 14 Remote Control DS2000 User’s Guide 14-3...
Page 244 RIGOL 14 Remote Control Search device resource Start up the Ultra Sigma and the software will automatically search for the oscilloscope resources currently connected to the PC. You can also click to search the resources. During the search, the status bar of the software is as shown in the figure below.
Page 245 RIGOL 14 Remote Control View the device resource The resources found will appear under the “RIGOL Online Resource” directory and the model number and USB interface information of the instrument will also be displayed as shown in the figure below.
Page 246: Remote Control Via Lan
RIGOL 14 Remote Control Remote Control via LAN Connect the device Connect the oscilloscope to your LAN using a network cable. Configure network parameters Configure the network parameters of the oscilloscope according to the description in “LAN Setting”. Search device resource Start up the Ultra Sigma and click .
Page 247 14 Remote Control Figure (b) Figure (c) View device resource The resources found will appear under the “RIGOL Online Resource” directory as shown in the figure below. Communication test Right click the resource name “DS2202 (TCPIP::172.16.3.183::INSTR)” to select DS2000 User’s Guide...
Page 248 RIGOL 14 Remote Control “SCPI Panel Control” to turn on the remote command control panel (as shown in the figure below) through which you can send commands and read data. Load LXI webpage As this oscilloscope conforms to LXI-C standards, you can load LXI webpage through Ultra Sigma (right-click the resource name and select LXI-Web;...
Page 249: Remote Control Via Gpib
RIGOL 14 Remote Control Remote Control via GPIB Connect the device Use the USB to GPIB interface converter to extend a GPIB interface for the oscilloscope. Then connect the oscilloscope to your PC using a GPIB cable. Install the driver of GPIB card Install the driver of the GPIB card which has been connected to the PC correctly.
Page 250 14 Remote Control View device resource Click “OK” to return back to the main interface of Ultra Sigma. The resources found will appear under the “RIGOL Online Resource” directory. Communication Test Right-click the resource name “DS2202 (GPIB0::18::INSTR)” to select “SCPI Panel Control”...
Page 251: 15 Troubleshooting
The commonly encountered failures and their solutions are listed below. When you encounter those problems, please solve them following the corresponding steps. If the problem remains still, please contact RIGOL and provide your device information (Utility  System  System Info).
Page 252 RIGOL 15 Troubleshooting signal should use “Video” trigger. Only when the proper trigger type is used, can the waveform be displayed stably. (3) Change the trigger holdoff setting. No display after pressing RUN/STOP: Check whether the MODE at the trigger panel (TRIGGER) is on “Normal” or “Single”...
Page 253: 16 Specifications
RIGOL 16 Specifications 16 Specifications All the specifications are guaranteed except the parameters marked with “Typical” and the oscilloscope needs to operate for more than 30 minutes under the specified operation temperature. Sample Sample Mode Real-time Sample Real Time Sample...
Page 254 RIGOL 16 Specifications Transient Overvoltage 1000 Vpk with RP2200 10:1 probe: CAT II 300 Vrms with RP3300 10:1 probe: CAT II 300 Vrms with RP3500 10:1 probe: CAT II 300 Vrms with RP5600 10:1 probe: CAT II 300 Vrms Horizontal Timebase Scale DS2202: 2.000 ns/div to 1.000 ks/div...
Page 255 RIGOL 16 Specifications DS2102: 20 MHz DS2072: 20 MHz Low Frequency Response ≤5 Hz (on BNC) (AC Coupling, -3dB) Calculated Rise DS2202: 1.8 ns Time DS2102: 3.5 ns DS2072: 5 ns DC Gain Accuracy ±2% full scale DC Offset Accuracy ±0.1 div ±...
Page 256 RIGOL 16 Specifications Condition Pulse Polarity Positive, Negative Pulse Width Range 2 ns to 4 s Windows Trigger Windows Type Rising, Falling, Rising&Falling Trigger Position Enter, Exit, Time Windows Time 16 ns to 4 s Nth Edge Trigger Edge Type...
Page 257 RIGOL 16 Specifications Data Type H, L Setup Time 2 ns to 1 s Hold Time 2 ns to 1 s RS232/UART Trigger Polarity Negative, Positive Trigger Condition Start, Error, Check Error, Data Baud Rate 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps, 57600...
Page 258 RIGOL 16 Specifications Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay AB , Delay AB , Phase AB , Phase AB , Area, Period Area Number of Display 5 measurements at the same time.
Page 259: General Specifications
RIGOL 16 Specifications Display Color 160,000 Color (TFT) Persistence Time Min, 50ms, 100ms, 200ms, 500ms, 1 s, 2 s, 5 s, 10 s, 20 s, Infinite Display Type Dots, Vectors Real-time Clock Time and Date (user adjustable) Standard Ports USB HOST (support USB-GPIB), USB DEVICE, LAN, Aux...
Page 260: Calibration Interval
RIGOL 16 Specifications Calibration Interval The recommended calibration interval is one year. Regulatory Information Electromagnetic 2004/108/EC Compatibility Execution standard EN 61326-1:2006 EN 61326-2-1:2006 Safety UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001 Typical. Maximum value. 20ns, single-channel mode, dots display, auto memory depth.
Page 261: 17 Appendix
AT-DS2 Options trigger, timeout trigger, Options duration trigger, USB trigger RS232/UART decoding kit Decoding I2C decoding kit SD-DS2 Options SPI decoding kit Note: all the options or accessories can be ordered from you local RIGOL Office. 17-1 DS2000 User’s Guide...
Page 262: Appendix B: Warranty
To get repair service, please contact with your nearest RIGOL sales and service office. RIGOL does not provide any other warranty items except the one being provided by this summary and the warranty statement. The warranty items include but not being subjected to the hint guarantee items related to tradable characteristic and any particular purpose.
Page 263: Appendix C: Any Question Or Comment
RIGOL 17 Appendix Appendix C: Any Question or Comment? If you have any question or comment on our document, please mail to: service@rigol.com DS2000 User’s Guide 17-3...
Page 265: Index
RIGOL Index Index - Duty ........6-16 FFT ..........6-5 - Width ........6-16 Frequency ........ 6-16 + Duty ........6-16 Frequency Counter ....6-21 + Width ........6-16 Gate ......... 13-4 Acquisition Mode ......4-2 Hamming ........6-6 Addition ........6-2 Hanning ........
Page 266 RIGOL Index Rectangle ........6-6 Variable ........6-11 Rise Time ........6-16 Vavg ........6-18 Roll ..........3-8 Vbase ........6-18 RS232 Decoding ......7-5 Vectors ........11-2 Runt Trigger ......5-13 Vertical Expansion ....... 2-6 Sample Rate ....... 4-6 Vertical Scale ......2-5 Setup/Hold Trigger .....5-33...

This manual is also suitable for:

Ds2072 Ds2102 Ds2202

Rigol DS2000 Series User Manual

Safety Requirement

DS2000 Series Overview

Document Overview

1 Quick Start

2 To Set the Vertical System

3 To Set the Horizontal System

4 To Set the Sample System

5 To Trigger the Oscilloscope

6 To Make Measurements

7 Protocol Decoding

8 Reference Waveform

9 Pass/Fail Test

10 Waveform Record

11 Display Control

12 Store and Recall

13 System Function Setting

14 Remote Control

15 Troubleshooting

16 Specifications

17 Appendix

Appendix A: Accessories and Options

Appendix B: Warranty

Appendix C: any Question or Comment

Index

Quick Links

Need help?

Questions and answers

Related Manuals for Rigol DS2000 Series

Summary of Contents for Rigol DS2000 Series
