Summary of Contents for goodnature X-1 MINI PRO

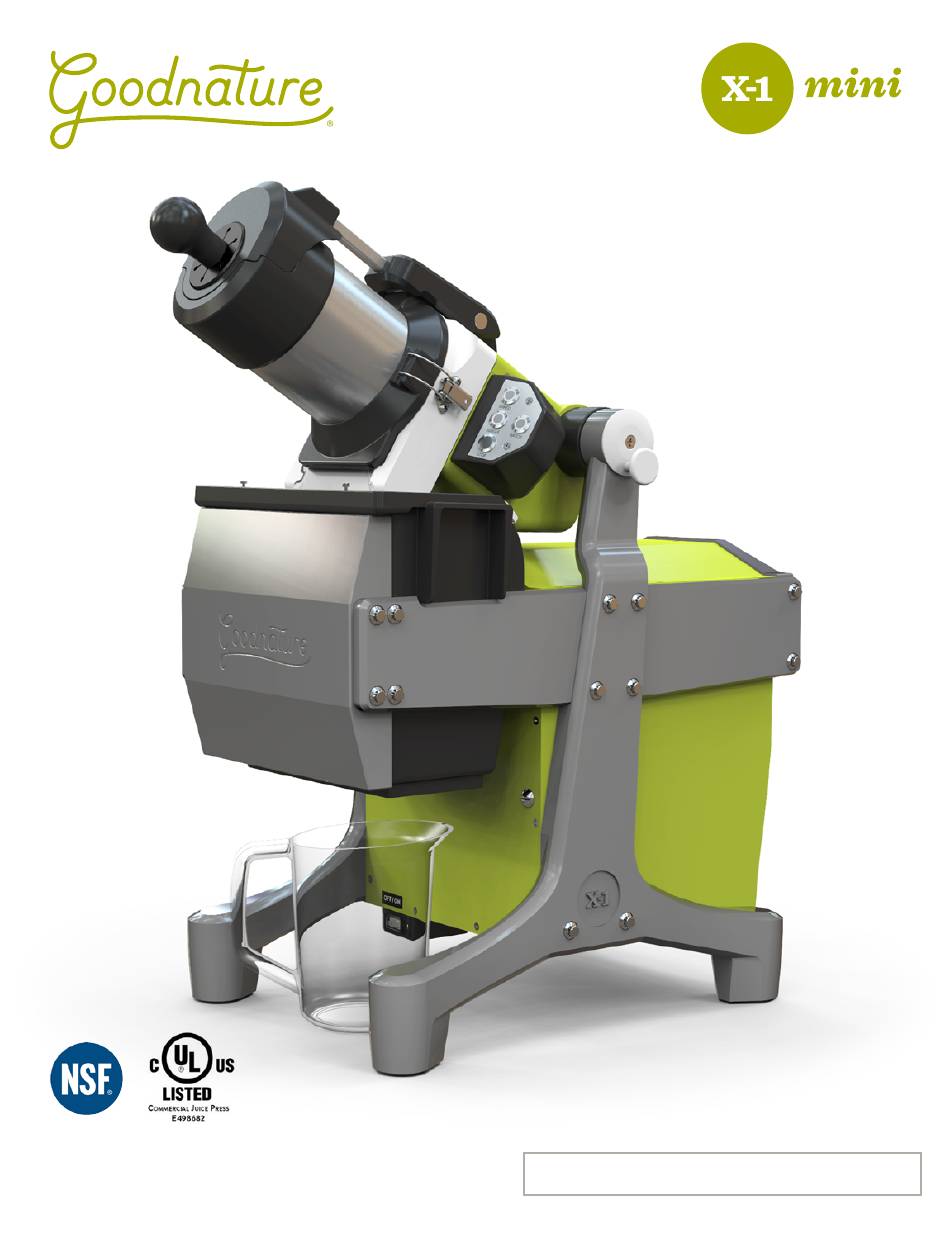

- Page 1 SERIAL # X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...

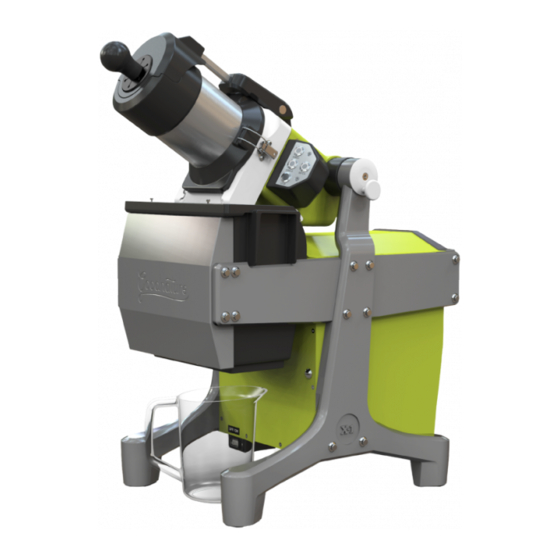

- Page 2 Weight: 150 lb APPLICATION The X-1 Mini Pro is a commercial cold-press juicer that allows you to serve your customer fresh, cold-pressed juice in minutes. The patent pending Herbivore® Grinder and Adaptive Pressing System work together in perfect harmony to bring you the world’s greatest juice.
-
Page 3: Table Of Contents
Press Operation PAGE 19 Cleaning SECTION 7 PAGE 22 Maintenance SECTION 8 PAGE 23 Warranty SECTION 9 PAGE 24 Replacement Parts SECTION 10 PAGE 24 Contact Information SECTION 11 PAGE 24 X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 4: Section 6A
WARNING: Discontinue use immediately and have machine serviced if any components are damaged or malfunctioning to avoid risk of personal injury and damage to the machine. CAUTION: Only locate or set up machine on a sturdy counter or cart with locked casters. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 5: Unpacking
Do not tip machine onto its side. Machine can be lifted onto the counter, table, or cart where it is intended to be used. After unpacking, review the X-1 Mini Pro diagrams in section 3 to become familiar with the features and components of the machine. -
Page 6: Enclosed Parts List
Hopper Door Grinder Ring Agitator Knob Grinder Disc Press Guard Press Chamber Front Press Rack Bottom Press Rack Moving Platen Vibration Pad X-1 Mini FreshFilter® Press Bags Tool Kit & Accessories X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 7: Setup
Section 4: Setup The grinder can be freely rotated to the “Up” position. To rotate “Down”, press in and hold the release button. While lowering, guide the hopper with opposite hand. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 8 Section 4: Setup PRESS SETUP X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 9 Press Chamber, with Press Chamber. Press Bag over the Bag Pins, so the the grooves facing toward the front pins are protruding through the of the press. bag. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 10 Section 4: Setup HERBIVORE® GRINDER SETUP X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 11 Insert the orange hopper seal threaded rod until snug. Do not Grinder, making sure “TOP” is at into the groove on the base of the over-tighten. the top of the grinder, facing up. hopper. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 12 Hopper Door down into the receiver so that the rear portion of the door is located as shown. You will notice there is still a gap between door and grinder housing. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 13 Door and Grinder operation. place with an audible “click”. This Housing. may take a lot of force on a new machine. The vibration pad can be placed under a container of your choosing. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 14: Produce Preparation
CAUTION: Only press produce that has been shredded. Never attempt to press unshredded produce, pits, or large seeds, as doing so can put uneven loading on the machine and cause damage. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 15: Operation
Drop CONTROLS There are four buttons on the right side of the upper housing that are used to operate the grinder and press. These buttons are “SHRED”, “SINGLE”, “BATCH” and “STOP”. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 16 If the hopper is open for more than 45 seconds, the grind cycle will cancel automatically as a safety feature. Drop When the hopper door is closed, the grinder disc will begin spinning again. Drop Solid illuminated “SHRED” button means the grinder disc is spinning. Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 17 Pressing “STOP” once during any press cycle, or while the machine is idle will relieve pressure and retract the piston rod. Drop Pressing “STOP” twice will cancel all cycles. The piston rod will not retract. Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 18: Grinder Operation
Open the hopper door again and repeat the process, grinding produce until the desired amount is in the press chamber. Once you have finished grinding the desired amount of produce for one press cycle, press the “SHRED” button again to turn off the grinder. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 19: Press Operation
Pull the press bag off of the pins and remove from the press chamber. You have now completed one full shred and press cycle. When you are finished, turn the power switch to the “OFF” position. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 20: Cleaning
Drop Grinder Disc Bottom Press Rack Press Guard Drop Drop Drop Juice Pitcher Pusher Drop Drop Vibration Pad Hopper Seal Drop Drop Splash Guard Press Chamber Drop Drop Press Racks Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 21 Wipe any remaining produce out of the grinder base. Drop Lower the shredder base to the “Down” position. Rinse the grinder base with water, it should collect in the pitcher. Drop Remove pitcher and wipe down machine. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 22 Rinse surface with clean water. Drop Sanitize surface using a sanitizing solution mixed at a concentration specified on the manufacturer’s label. Drop Place wet items in a manner to allow air drying. Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 23: Maintenance
If the machine is not functioning as described in this manual, please discontinue use immediately and contact Drop technical support. For up-to-date support information go to www.goodnature.com/support. MONTHLY MAINTENANCE Apply food grade oil to the press rod while extended during cleaning. -
Page 24: Warranty
Warranty Warranty information was provided during the purchase of the equipment, and is part of the Purchase and Sale agreement. If you need a replacement copy please contact Goodnature Products, Inc. or your sales representative regarding warranty information. Altering the machinery in any way not described in this manual will void the warranty. Failure to follow the operating instructions defined in this manual will void the warranty. - Page 25 COMMERCIAL COLD PRESSED JUICER 7234_R20 3/8/2022...
