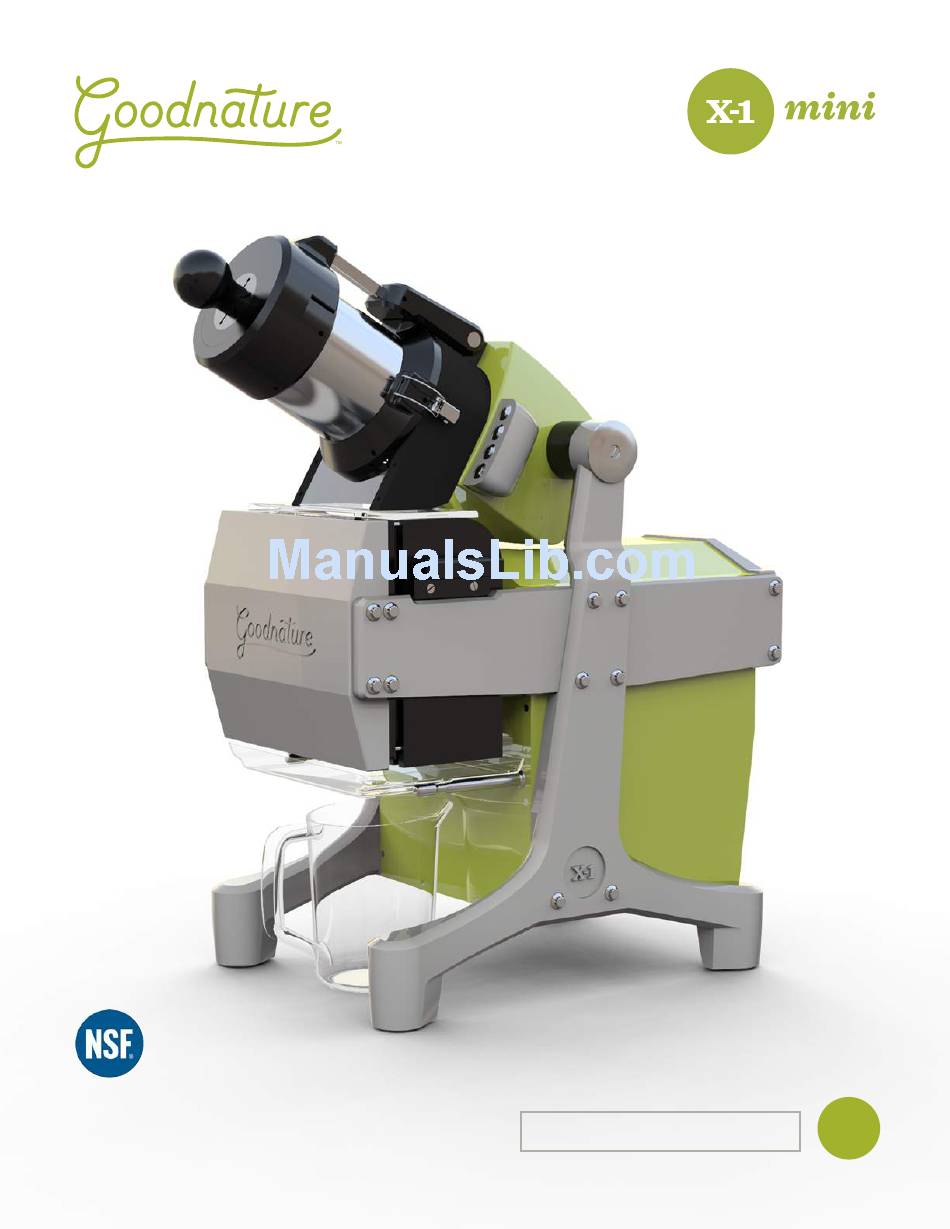

- Page 1 MANUAL VERSION SERIAL # X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 2 Weight: 169 lbs APPLICATION The X-1 Mini Pro is a commercial cold-press juicer that allows you to serve your customer fresh, cold-pressed juice in minutes. The patent pending Herbivore Grinder™ and Adaptive Pressing System™ work together in perfect harmony to bring you the world’s greatest juice.
-
Page 3: Table Of Contents
Press Operation PAGE 22 Cleaning SECTION 7 PAGE 23 Maintenance SECTION 8 PAGE 26 Warranty SECTION 9 PAGE 27 Replacement Parts SECTION 10 PAGE 27 Contact Information SECTION 11 PAGE 27 X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 4: Section 6A
WARNING: Discontinue use immediately and have machine serviced if any components are damaged or malfunctioning to avoid risk of personal injury and damage to the machine. CAUTION: Only locate or set up machine on a sturdy counter or cart with locked casters. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 5: Unpacking
Machine can be lifted onto the counter, table, or cart where it is intended to be used. Drop After unpacking, review the X-1 Mini Pro diagrams in section 3 to become familiar with the features and components of the machine. -
Page 6: Enclosed Parts List
Agitator Knob Grinder Ring Press Guard Assembly Hopper Hopper Door Splash Guard Pusher Press Chamber Bottom Drain Front Drain Screen Moving Platen Screen Cleaning Brush Juice Catch Tray Vibration Pad Juice Pitcher X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 7: Assembly
“down” position by pressing the release lever on the right side of the grinder and lowering the grinder by hand. PRESS ASSEMBLY COMB AND PLATEN INSTALLATION SCALE .5 PRESS CHAMBER INSTALLATION SCALE .5 X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 8 (non-concave) side facing the front of the chamber away from you. Place the chamber into the press so the front of the chamber sits snugly against the press plate. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 9 Firmly push each side of the bag over the bag pins, piercing the material at least 0.5 inch from the edge of the bag. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 10 Section 4: Assembly GRINDER ASSEMBLY SHREDDER ASSEMB SCALE .5 SHREDDER ASSEMBLY SCALE .5 With the grinder in the “up” position, attach the clear press guard. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 11 Place the grinder disc into the grinder as shown. Attach the agitator knob by screwing it onto the threaded rod, turning it clockwise until it is snug. No need to over-tighten. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 12 Attach the hopper to the grinder by aligning the pin on the hopper with the black hook on the grinder, and push down. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 13 Clamp the hopper in place using the clips on each side. If the rubber splash guard has been removed for cleaning, insert it into the hopper door as shown. Push handle of the pusher through the hopper door. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 14 Firmly push the pin of the hopper door into top of the grinder as shown. Use force if necessary. Finally, lower the hopper door and pusher into place, ready for operation. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 15 Section 4: Assembly JUICE COLLECTION Place juice catch tray under the press as shown. The vibration pad can be placed under a container of your choosing. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 16: Produce Preparation
CAUTION: Only press produce that has been shredded. Never attempt to press unshredded produce, pits, or large seeds, as doing so can put uneven loading on the machine and cause damage. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 17: Operation
Drop CONTROLS There are four buttons on the right side of the upper housing that are used to operate the grinder and press. Thes buttons are “SHRED”, “SINGLE”, “BATCH” and “STOP”. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 18 If the hopper is open for more than 45 seconds, the grind cycle will cancel automatically as a safety feature. Drop Solid lighted “Shred” button means that the disc is spinning. Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 19 Pressing “Stop” once during any press cycle, or while the machine is idle will relieve pressure and retract the piston rod. Drop Pressing “Stop” twice will cancel all cycles and relieve all pressure. The piston rod will not retract. Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 20: Grinder Operation
Open the hopper door using the pusher handle and resting the pusher head on the cutout in the hopper tube. Fill the hopper with desired amount of produce. Close the hopper door using the pusher handle. Press the “Shred” button. This will start the grind cycle. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 21 Open the hopper door again and repeat the process, grinding produce until the desired amount is in the press chamber. Once you have finished grinding the desired amount of produce for one press cycle, press the “Shred” button again to turn off the grinder. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 22: Press Operation
“Down” position and replace or empty the juice container if it is full. You are now ready to juice the next batch. When you are finished, turn the power switch to the “Off” position. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 23: Cleaning
Drop Drop Drop Grinder Disc Front Drain Screen Hopper Door Drop Drop Drop Juice Pitcher Bottom Drain Screen Press Chamber Drop Drop Drop Vibration Pad Pusher Press Guard Drop Drop Drop X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... - Page 24 Remove the press chamber with moving platen, juice catch tray, and juice container. Take all parts to sink for washing and follow local health regulations for cleaning. This usually involves washing, rinsing, and sanitizing. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
- Page 25 Lower the shredder base to the “Down” position. Rinse the shredder base with water, it should collect in the catch tray Drop and pitcher. Remove pitcher and catch tray. Wipe down the machine. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS...
-
Page 26: Maintenance
Check machine daily for loose fasteners, worn or damaged components, and proper functioning of the machine. Drop If the machine is not functioning as described in this manual, please discontinue use immediately and contact Drop technical support. For up-to-date support information go to www.goodnature.com/support. X-1 MINI PRO OWNER’S MANUAL ASSEMBLY & OPERATOR INSTRUCTIONS... -
Page 27: Warranty
Warranty Warranty information was provided during the purchase of the equipment, and is part of the Purchase and Sale agreement. If you need a replacement copy please contact Goodnature Products, Inc. or your sales representative regarding warranty information. Altering the machinery in any way not described in this manual will void the warranty. Failure to follow the operating instructions defined in this manual will void the warranty. - Page 28 COMMERCIAL COLD PRESSED JUICER 7234_R05...
