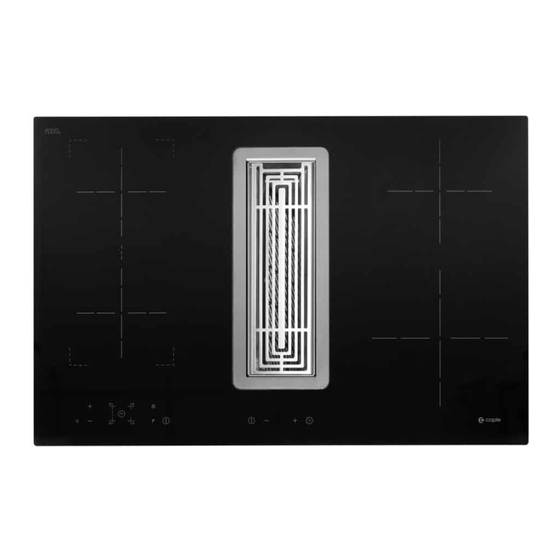

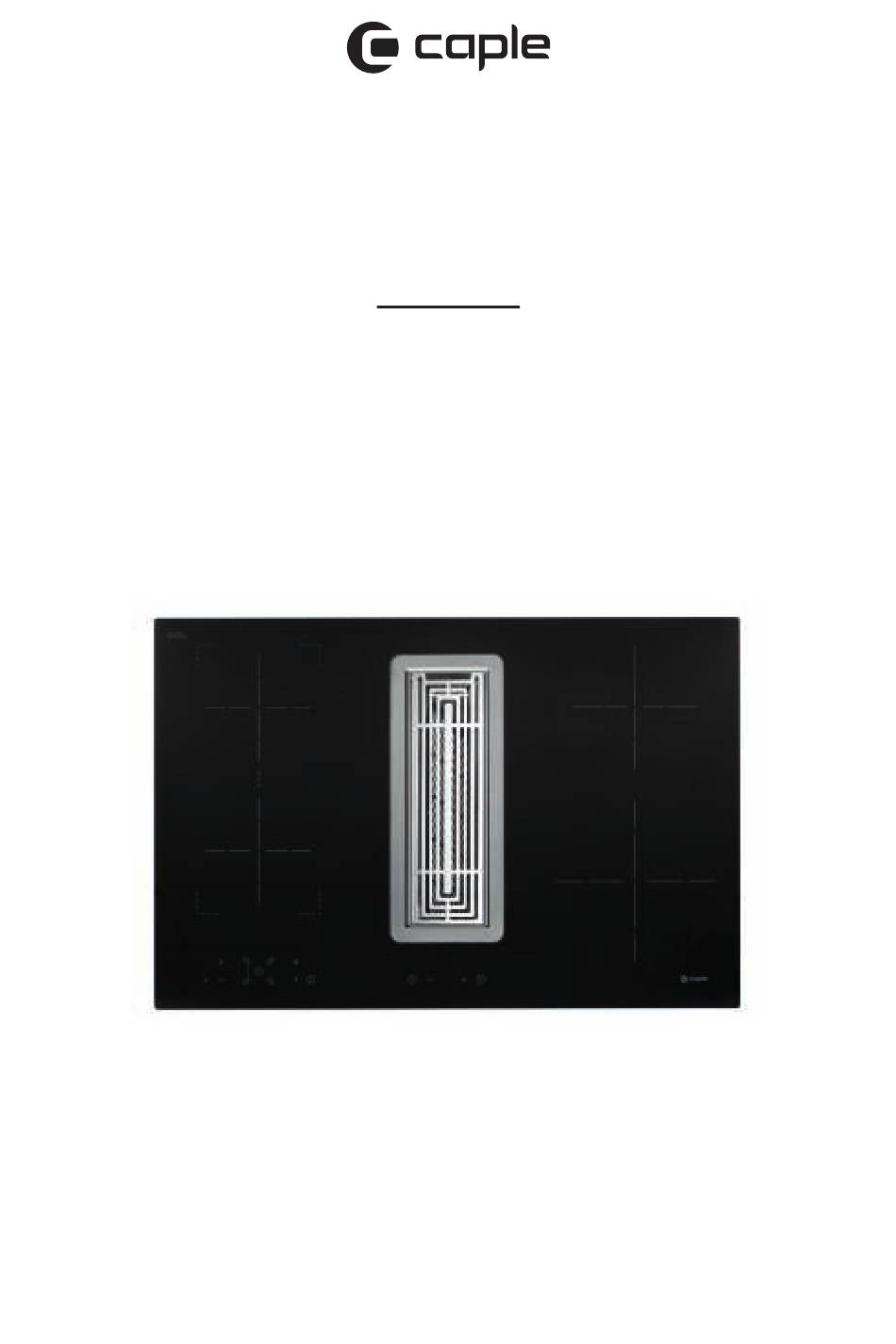

- Page 1 D o w n d r a f t I n d u c t i o n H o b I n s t r u c t i o n M a n u a l DD7 80 B K Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Safety Instructions Environmental Protection Warranty Installation Electrical Connection Installation Dimensions Product Overview Cookware Hob Controls Extractor Controls Cleaning and Maintenance Troubleshooting After Sales Caple Contact Details Instruction manual DD780BK Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 4 - Do not operate the appliance with an external timer or separate remote-control system. - Do not use harsh abrasive cleaners or scourers to clean the hob surface. - Do not use steam cleaners for cleaning the appliance. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 5 (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the rating label. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 6 - The performance of your extractor will vary depending on a number of factors. These include type of extraction, room volume, length of ducting, ventilation available and the cleanliness of the filters. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 7 - The extracted air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. - Regulations concerning the discharge of air have to be conformed to. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 8 - Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked or grabbed. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 9 - The extractor and its filter should be cleaned regularly in order to keep in good working condition. - Clean the extractor according to the instruction manual to reduce the risk of fire. Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 10: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. -
Page 11: Installation
The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C. If a cupboard is to be installed above the appliance, the safety distance between hob and any cupboard should be as shown on page 12. Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 12 fitted below the base of the appliance, ensuring that there is no access to the base of the appliance. Make sure that the induction hob is well ventilated and the air inlet and outlet are not blocked. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 13 C O M P O N E N T S Induction Hob Filter Cover Metal Grease Cover Extractor Unit Control Box Assembling Kit Motor Unit Activated Charcoal Filter Housing Activated Charcoal Filter Activated Charcoal Filter Cover Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 14 Apply the supplied one-sided self-adhesive sealing tape (1) all the way around the lower edge of the hob. Do not stretch the tape. Screw the 4 worktop mounting brackets (2) into the side walls of product. Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 15: Electrical Connection
› The terminal box connection is placed on the terminal box. N OT E : Left image is how the appliance is wired. Right image shows an alternative wiring method. Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 16 › Plug the main cable of the control box (4) into the socket (5). › Plug the motor connection cable (6) from the control box into the socket on the motor unit. Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 17: Installation Dimensions
Cut the aperture dimensions as indicated in the figure. Locate the aperture on the worktop so that, after the hob is installed, the following requirements are followed. 120,5 371,5 min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 18 Worktop cut - out Motor unit cut - out min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 19 I S L A N D W O R K TO P I N S TA L L AT I O N [ F R O N TA L O U T L E T ] 22.5 371,5 120,5 min 900 727,5 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 20 Worktop cut - out Motor unit cut - out min 900 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 21 S TA N DA R D 6 0 C M W O R K TO P I N S TA L L AT I O N [ S I D E O U T L E T ] 241,5 120,5 min 500 min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 22 Worktop cut - out Motor unit cut - out min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 23 S TA N DA R D 6 0 C M W O R K TO P I N S TA L L AT I O N [ F R O N TA L O U T L E T ] 74,5 241,5 120,5 min 500 min 1000 525,5 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 24 Worktop cut - out Motor unit cut - out 55,5 min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 25 S TA N DA R D 6 0 C M W O R K TO P I N S TA L L AT I O N [ E X T E R N A L LY D U C T E D W I T H O U T C A R B O N F I LT E R ] Wall 241,5 120,5 min 500 min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 26 Worktop cut - out Wall Motor unit cut - out min 1000 Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 27: Product Overview
Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. Induction Hob Extraction Unit Piping Motor Unit Activated Charcoal Filter Induction Zone Extraction Unit Control Panel Hob Control Panel Instruction manual DD780BK Please keep this instruction manual for future reference... -
Page 28: Cookware
When using pans suitable for induction, you may hear various noises coming from them, this is due to the design of the pans and does not affect the performance or safety of the hob. Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 29 › Always close cooking pots with a suitable lid. › Use the right sized pan for the quantity of food you are cooking. A large pan which is hardly filled will use up a lot of energy. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 30 S E T T I N G S C L A S S Element off Delicate warming Gentle simmering, slow warming Reheating and rapid simmering Boiling, saute and searing Maximum heat Boost function Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 31: Hob Controls
9. Decreased power setting / timer 4. Timer display 10. Bridge zone selection 5. Timer function cooking 11. Timer selection zone indicator 12. Boost 6. Key lock 13. On / Off Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 32 The residual heat indicator indicates that the glass ceramic area has a temperature that is dangerous to touch. After switching off the cooking zone, the respective display will show “H” until the corresponding cooking zone temperature is at a safe level. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 33 A U TO S A F E T Y S H U T- O F F A F T E R 6 hours 5 hours 4 hours 1.5 hours Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 34 The minute minder timer can be changed or switched off at any time by using the timer setting button and/or the decrease timer button .Switching off the hob by pressing at any time will also switch off the minute minder timer. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 35 The necessary power reduction is shown by the corresponding cooking zone display blinking. Blinking will be active for 3 seconds to allow for further adaptations of the settings before power reduction. Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 36: Extractor Controls
D E C R E A S E T H E FA N S P E E D B Y P R E S S I N G T H E B U T TO N . Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 37 When “ ” is displayed on the digital screen, the metal grease filter must be cleaned. To remove the metal grease filter cleaning prompt, proceed as follows: After the cleaning has been completed press the button, until “ ” appears on the screen. Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 38: Cleaning And Maintenance
› Any changes in colour to the ceramic glass will not affect the structure or durability of the ceramic and is not due to a change in the material. Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 39 › Clean the metal grease filter as soon as the instruction for cleaning the filter appears on the display “ ”, or at least every 2 weeks. › Never operate the extractor without the metal grease filter. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 40 Rinse the metal grease filter by hand or in the dishwasher. Once cleaned, reverse these steps to reinsert the metal grease filter, and if necessary, remove the cleaning warning in the extractor display. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 41 A F T E R C L E A N I N G : Put the metal grease filter on an absorbent pad to dry before reinserting into the extraction unit. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 42 3. Remove the activated carbon filter form the filter frame as shown. WA R N I N G : Place the case on a firm surface, then push the filter down slightly to remove it. Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 43 6. Re-insert the activated carbon filter by performing the previous steps in reverse order. To purchase replacement charcoal filters (CAP81CF), visit www.caple.co.uk. M A I N T E N A N C E I N T E R VA L S...
-
Page 44: Troubleshooting
If the problem persists or more help is required, please contact our Caple service team on 0117 938 7420 or via email service@caple.co.uk Instruction manual DD780BK... - Page 45 , wait until ‘H” disappears for all zones, switch the hob on by pressing and continue to use. If the same error is displayed again, call Caple Service. Supply frequency is different from the rated values.
-
Page 46: After Sales
Any maintenance operation on your appliance should be carried out by: › Either your retailer; › Or another Caple approved engineer or similar qualified person. If a problem still persists and further assistance is required, please contact our Caple after sales team on: T - 0117 938 7420 E - service@caple.co.uk... - Page 47 N OT E S...
-
Page 48: Caple Contact Details
Caple Service BS11 8DW Fourth Way T: 0117 938 1900 Avonmouth E: service@caple.co.uk Bristol www.caple.co.uk...
