Summary of Contents for Caple C845I

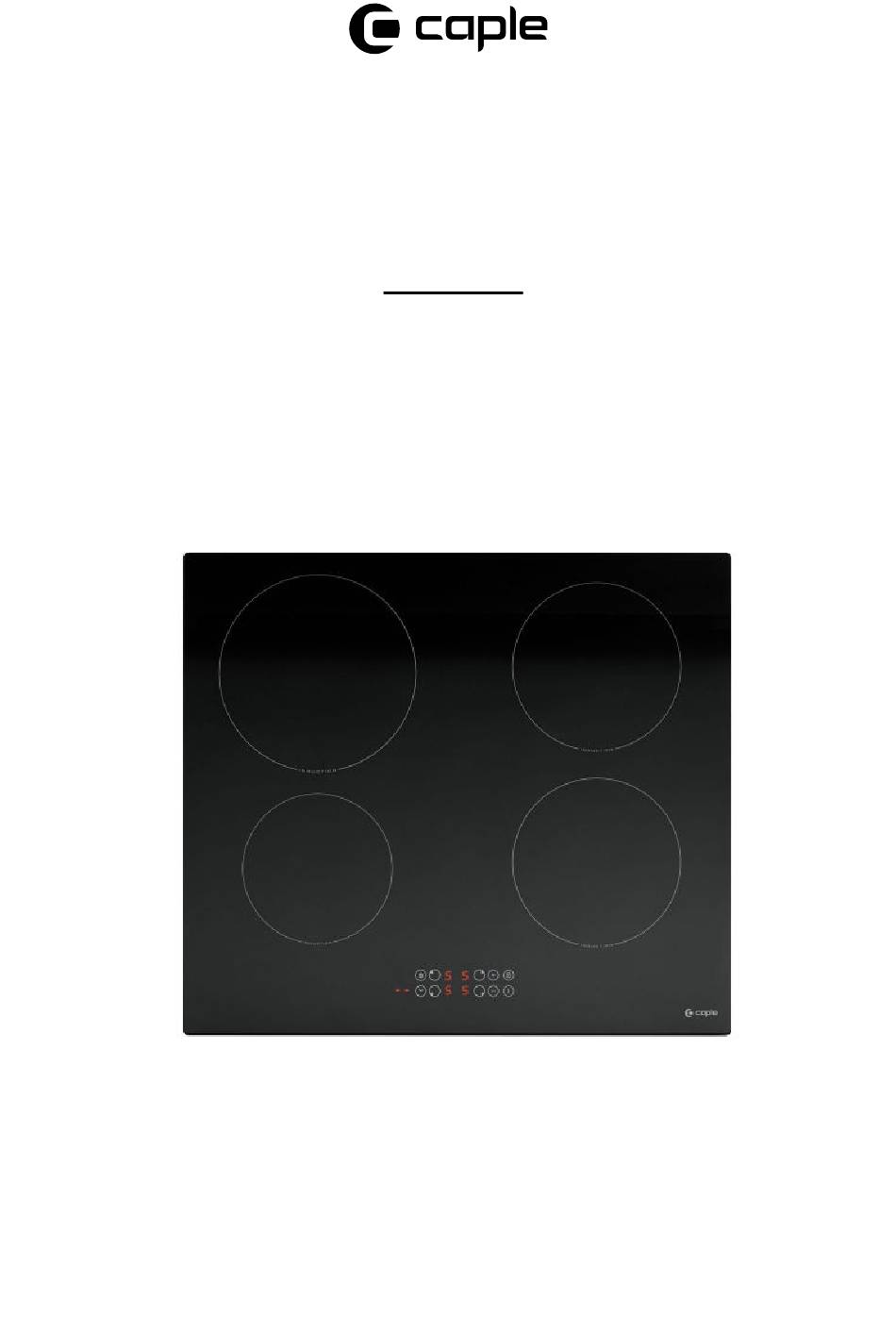

- Page 1 I n d u c t i o n H o b I n s t r u c t i o n M a n u a l C8 4 5I Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Introduction Safety Instructions Environmental Protection Warranty Product Overview Using your Induction Hob Cooking Guidelines Installation Cleaning and Maintenance Troubleshooting Technical Specification Caple Contact Details Instruction manual C845i Please keep this instruction manual for future reference... -
Page 3: Introduction
I N T R O D U C T I O N Congratulations on the purchase of your new Caple induction hob. We recommend that you take some time to read this instruction manual in order to fully understand how to correctly install and operate it. -
Page 4: Safety Instructions
- Please make this information available to the person responsible for installing the appliance. - In order to avoid a hazard, this appliance must be installed according to these instructions. Instruction manual C845i Please keep this instruction manual for future reference... - Page 5 - Persons with cardiac pacemakers or other electrical implants must consult their doctor before using this appliance to ensure the implants will not be affected by the electromagnetic field. Instruction manual C845i 5 Please keep this instruction manual for future reference...
- Page 6 - Never leave the appliance unattended when in use as pans may boil over which may result in smoking or grease spills that may ignite. - Never use your appliance as a work or storage surface. Instruction manual C845i Please keep this instruction manual for future reference...
- Page 7 - Do not use a steam cleaner to clean the hob. - Do not place or drop heavy objects on your hob. Instruction manual C845i 7 Please keep this instruction manual for future reference...
- Page 8 - Do not use scourers or any other harsh abrasive cleaning agents to clean your hob, as these can scratch glass. - If the supply cord is damaged, it must be replaced by Caple service or similarly qualified persons in order to avoid a hazard.
- Page 9 - Do not steam clean. - The appliance is not intended to be operated by means of an external timer or separate remote control system. Instruction manual C845i 9 Please keep this instruction manual for future reference...
-
Page 10: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. Spare parts are only available from Caple Service and spare parts authorised centres. -
Page 11: Product Overview
C O N T R O L PA N E L 1. ON/OFF control 2. Timer control 3. Boost 4. Cooking zone controls 5. Power/Timer keys 6. Child lock control Instruction manual C845i 11 Please keep this instruction manual for future reference... - Page 12 C H O O S I N G T H E R I G H T C O O K W A R E - Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. Instruction manual C845i Please keep this instruction manual for future reference...
- Page 13 M I N. PA N D I A M E T E R ( M M ) M A X . PA N D I A M E T E R ( M M ) Instruction manual C845i 13 Please keep this instruction manual for future reference...
-
Page 14: Using Your Induction Hob
No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it. Instruction manual C845i Please keep this instruction manual for future reference... - Page 15 Select the boost control ‘B’, the zone indicator will show ‘P’ and the power will increase to Max. Instruction manual C845i 15 Please keep this instruction manual for future reference o cancel o cancel...
- Page 16 Touch the key lock control. The timer indicator will show “ Lo “ TO U N L O C K T H E C O N T R O L S Touch and hold the key lock control for a while Instruction manual C845i Please keep this instruction manual for future reference...
- Page 17 When the pot is removed, the induction hob can stop heating immediately and the hob automatically switches off after 2 minutes. People with a heart pacemaker should consult with their doctor before using this product. Instruction manual C845i 17 Please keep this instruction manual for future reference...
- Page 18 5 seconds. The buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the set time has finished. Instruction manual C845i Please keep this instruction manual for future reference...
- Page 19 When the timer expires, the corresponding cooking zone will switch off automatically. All other cooking zones will continue operating if they were turned on previously. Instruction manual C845i 19 Please keep this instruction manual for future reference...
-
Page 20: Cooking Guidelines
– the firmer it feels the more ‘well done’ it will be. 5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving. Instruction manual C845i Please keep this instruction manual for future reference... - Page 21 Slow warming. Reheating. 3 - 4 Rapid simmering. Cooking rice. 5 - 6 Pancakes. Sautéing. 7 - 8 Cooking pasta. Stir-frying. Searing. Bringing soup to the boil. Boiling water. Instruction manual C845i 21 Please keep this instruction manual for future reference...
-
Page 22: Installation
Instruction manual C845i Please keep this instruction manual for future reference... - Page 23 N OT E : The safety distance between the hotplate and cupboard above the hotplate should be at least 600mm. Instruction manual C845i 23 Please keep this instruction manual for future reference...
- Page 24 B E F O R E L O C AT I N G T H E F I X I N G B R A C K E T S The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the fixings protruding from the hob. Instruction manual C845i Please keep this instruction manual for future reference...
- Page 25 - The wall and induced heating zone above the table surface must withstand heat. - To avoid any damage, the sandwich layer and adhesive must be heat resistant. Instruction manual C845i 25 Please keep this instruction manual for future reference...
- Page 26 - The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. - The cable must not be bent or compressed. - The cable must be checked regularly and replaced by authorised technicians only. Instruction manual C845i Please keep this instruction manual for future reference...
-
Page 27: Cleaning And Maintenance
4. Wipe the area completely dry with a paper towel. 5. Switch the power to the hob back on. Instruction manual C845i 27 Please keep this instruction manual for future reference... -
Page 28: Troubleshooting
Please note down the error letters and cooking zone has turned numbers, switch the power to the induction itself off unexpectedly, a hob off at the wall, and contact Caple tone sounds and an error Service on 0117 938 1900. code is displayed (typically... - Page 29 The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob. Caple Service can be contacted by telephone on 0117 938 1900. Instruction manual C845i 29...
-
Page 30: Technical Specification
Building-in Dimensions A×B (mm) 564 X 494 Weight and dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. Instruction manual C845i Please keep this instruction manual for future reference... - Page 31 N OT E S Instruction manual C845i 31 Please keep this instruction manual for future reference...
-
Page 32: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
