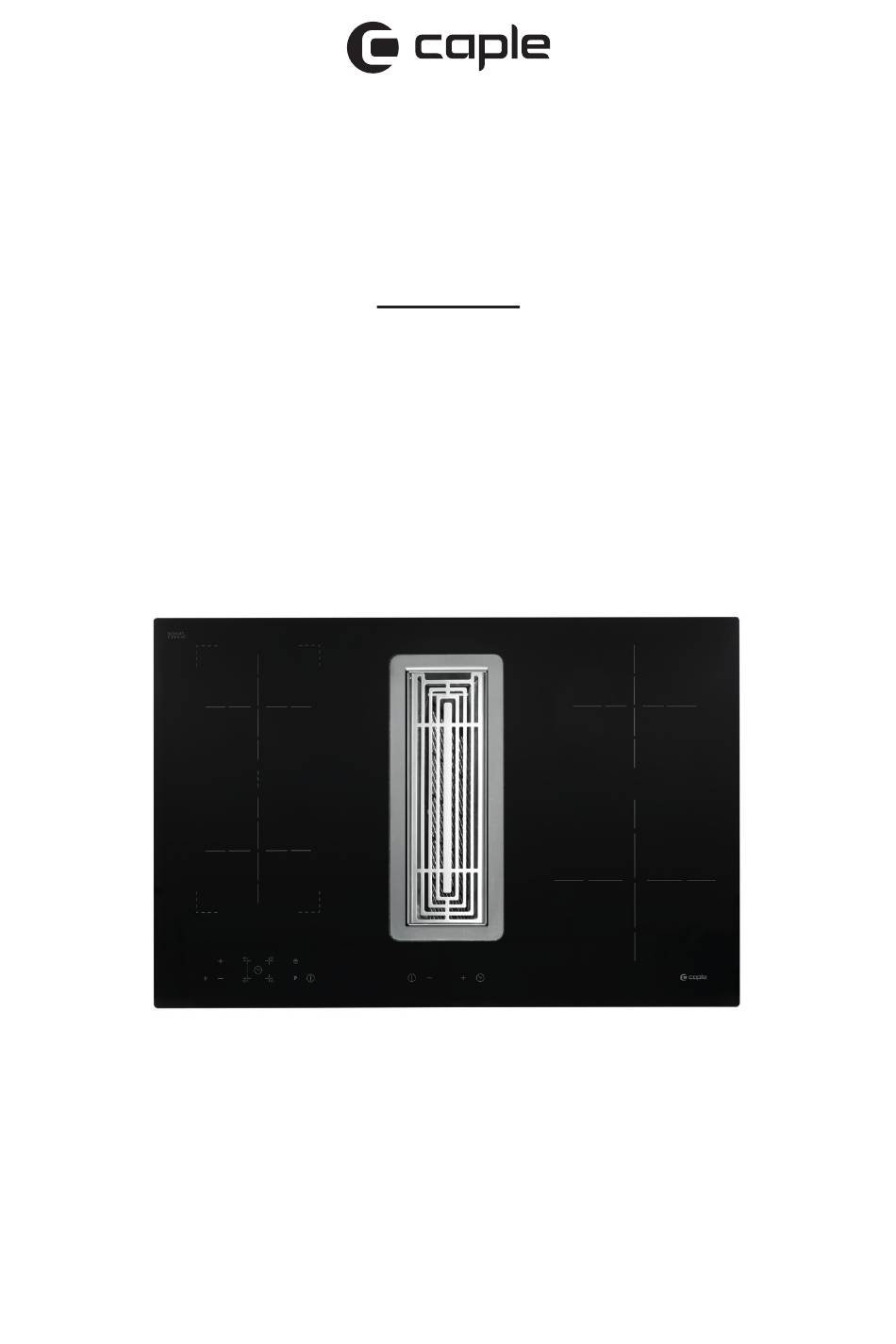

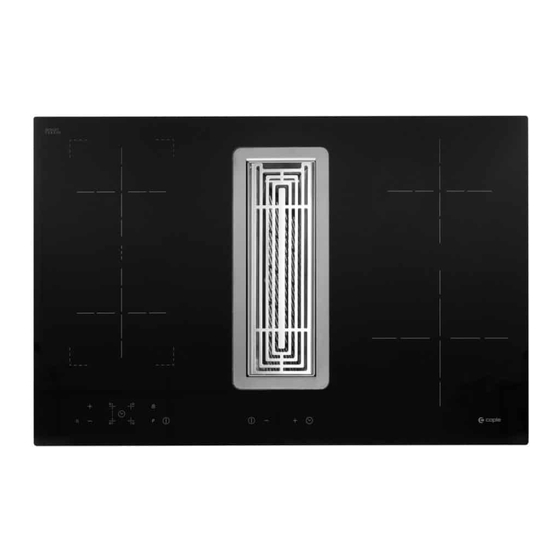

- Page 1 D o w n d r a f t I n d u c t i o n H o b I n s t r u c t i o n M a n u a l D D7 8 0 BK Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
NEVER try to extinguish such a fire with water, but switch off the appliance and cover the flame with a lid or a fire blanket. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 3 - Installation and repair work that is carried out by the induction hob. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
- Page 4 - The extracted air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
-
Page 5: Environmental Protection
(found inside the door opening). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 6: Installation
100°C. If a cupboard is to be installed above the appliance, the safety distance between cooktop and any cupboard should be as shown below. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 7 Screw the 4 worktop mounting brackets “2” in to the side walls of product. Activated Charcoal Filter Housing Activated Charcoal Filter Activated Charcoal Filter Cover Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
-
Page 8: Electrical Connection
» Plug the motor connection cable (6) from the control box into the socket on the motor unit. NOTE: Left image is how the appliance is wired. Right image shows an alternative wiring method. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference... -
Page 9: Installation Dimensions
Worktop cut - out 120,5 371,5 min 1000 Motor unit cut - out min 1000 Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference... - Page 10 I SL A N D W O R K TO P INSTA LLATION [ FRO NTA L O UTLET] 22.5 Worktop cut - out 371,5 120,5 min 900 727,5 Motor unit cut - out min 900 Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
- Page 11 STAN DAR D 6 0 C M WORK TOP IN STA LL AT IO N [S IDE OUT LET] Worktop cut - out 241,5 120,5 min 500 min 1000 Motor unit cut - out min 1000 Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
- Page 12 Worktop cut - out 120,5 241,5 min 500 min 1000 525,5 Motor unit cut - out 55,5 min 1000 Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
-
Page 13: Product Overview
Extraction Unit Control Panel Hob Control Panel unsuitable Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference... - Page 14 » Use the right sized pan for the quantity of food you are cooking. A large pan which is hardly filled will use up a lot of energy. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference...
-
Page 15: Hob Controls
After switching off the cooking zone, the respective display will show “H” 13. On / Off until the corresponding cooking zone temperature is at a safe level. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 16 .Switching off the hob by pressing at any time 1.5 hours will also switch off the minute minder timer. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference...
-
Page 17: Extractor Controls
Fan level has been decreased. reduction. To turn off the fan, press the air extraction on/off button. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference Please keep this instruction manual for future reference... -
Page 18: Cleaning And Maintenance
» Any changes in colour to the ceramic glass will not affect the structure or durability of the ceramic and is not due to a change in the material. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference... - Page 19 Lay the metal grease filter forward and remove it. Rinse the metal grease filter by hand or in the dishwasher. Rinse the metal grease filter by hand or in the dishwasher. Instruction manual DD780BK Please keep this instruction manual for future reference Instruction manual DD780BK...
- Page 20 Close the filter cover of the air extraction unit. WARNING: Place the case on a firm surface, then push the filter down slightly to remove it. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 21 Every other week or when the grease filter prompt appears Cleaning the metal grease filter If the problem persists or more help is requirted, please contact our Caple service team on Cleaning or replacing the activated carbon filter (for 0117 938 7420 or via email service@caple.co.uk...
- Page 22 Average illumination of the lighting system on the cooking surface (Emiddle)(lux) Weight and dimensions are approximate. We continually strive to improve our products therefore we may change specifications and designs without prior notice. Instruction manual DD780BK Instruction manual DD780BK Please keep this instruction manual for future reference...
- Page 23 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
