ASCENTREE
ASCENTREE

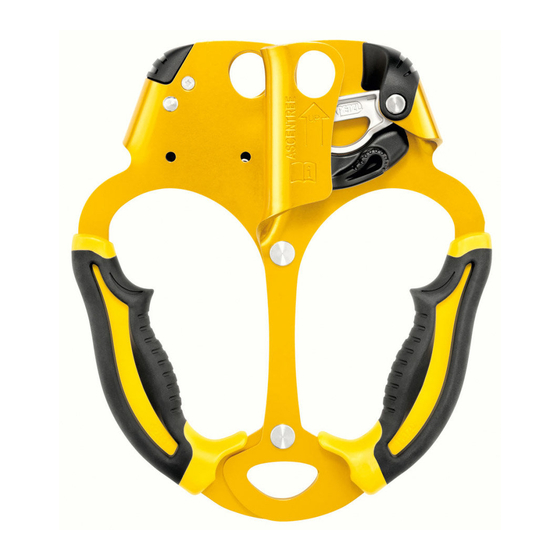

(EN) Handled rope clamp for use in tree-care work
with double rope technique
(FR) Bloqueur poignée pour l'élagage en technique cordes à double
0082
UIAA
WARNING
Activities involving the use of this equipment are inherently dangerous.
You are responsible for your own actions and decisions.
Before using this equipment, you must:
- Read and understand all Instructions for Use.
- Get specific training in its proper use.
- Become acquainted with its capabilities and limitations.
- Understand and accept the risks involved.
3 year guarantee
Patented
(EN) Rope (core + sheath) ø 10-13 mm low stretch (EN 1891) type A
(FR) Corde (âme + gaine) ø 10-13 mm statique (EN 1891) type A
(DE) Seil (Kern + Mantel) ø 10-13 mm statisch (EN 1891) Typ A
(IT) Corda (anima + calza) ø 10-13 mmstatica (EN 1891) tipo A
(ES) Cuerda (alma + funda) ø 10-13 mmestática (EN 1891) tipo A
10 ≤
www.petzl.com
www.petzl.com
PETZL
ZI Cidex 105A
38920 Crolles
France
www.petzl.com/contact
1
B19_Ascentree_B195000B (051010)
FAILURE TO HEED ANY OF THESE
WARNINGS MAY RESULT IN SEVERE
INJURY OR DEATH.
390 g
≤ 13 mm
Latest version
Other languages
ISO 9001
Copyright Petzl
Breaking strength:
6 kN
12 kN
Ropes
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Petzl ASCENTREE
Summary of Contents for Petzl ASCENTREE
- Page 1 ® ASCENTREE ASCENTREE (EN) Handled rope clamp for use in tree-care work with double rope technique (FR) Bloqueur poignée pour l’élagage en technique cordes à double 0082 UIAA WARNING Activities involving the use of this equipment are inherently dangerous. You are responsible for your own actions and decisions.
-
Page 2: Field Of Application
Consult the details of the inspection procedure to be carried out for each item of PPE on the Web at www.petzl.com/ppe or on the PETZL PPE CD-ROM. Contact PETZL if there is any doubt about the condition of this product. -
Page 3: Installation
Each time the device is installed onto the ropes, verify that it jams. To maneuver in a tree and use branches for anchoring purposes, specifi c training in tree care is essential. The ASCENTREE is designed to be used with both hands. B19_Ascentree_B195000B (051010) - Page 4 (see drawing). You can then back yourself up with a friction hitch on the blocked strand (above the ASCENTREE). Solution 1 8b. Precautions to take when approaching the anchor Do not climb above the rope clamp/grab or the anchor point and keep your lanyard under tension.
- Page 5 Ascending the rope 8c. In case the ropes are separated You can secure the ropes with two carabiners in the upper holes. Information regarding standards (EN) Accessories / (FR) Accessoires / (DE) Zubehör / (IT) Accessori / Rescue plan (ES) Accesorios You must have a rescue plan and the means to rapidly implement it in case of diffi culties encountered while using this equipment.
- Page 6 The maximum legislation; development of new other informational tools available Guarantee inspector. This inspection must lifetime of Petzl products is as techniques, incompatibility with at www.petzl.com/ppe be performed at least once every follows: up to 10 years from the other equipment, etc.
- Page 7 使用する前に必ず ： める内容 ： 用具の種類、 モデル、 製造者または販売元の名前と連絡先、 製造番 - 取扱説明書をよく読み、 理解してください 号、 識別番号、 製造年、 購入日、 初めて使用した時の日付、 ユーザー名、 その他の - この製品を正しく使用するための適切な指導を受けてください 関連情報(例 ： メンテナンス、 使用頻度、 定期点検の履歴、 点検日、 コメント、 点検 - この製品の機能とその限界について理解してください 者の名前と署名、 次回点検予定日) 詳しい点検記録の見本はwww.petzl.com/ - 高所での活動に伴う危険について理解してください ppeを参照ください。 これらの注意事項を無視または軽視すると、 重度の障害や死につながる場合があ ります。 廃棄基準 責任...
