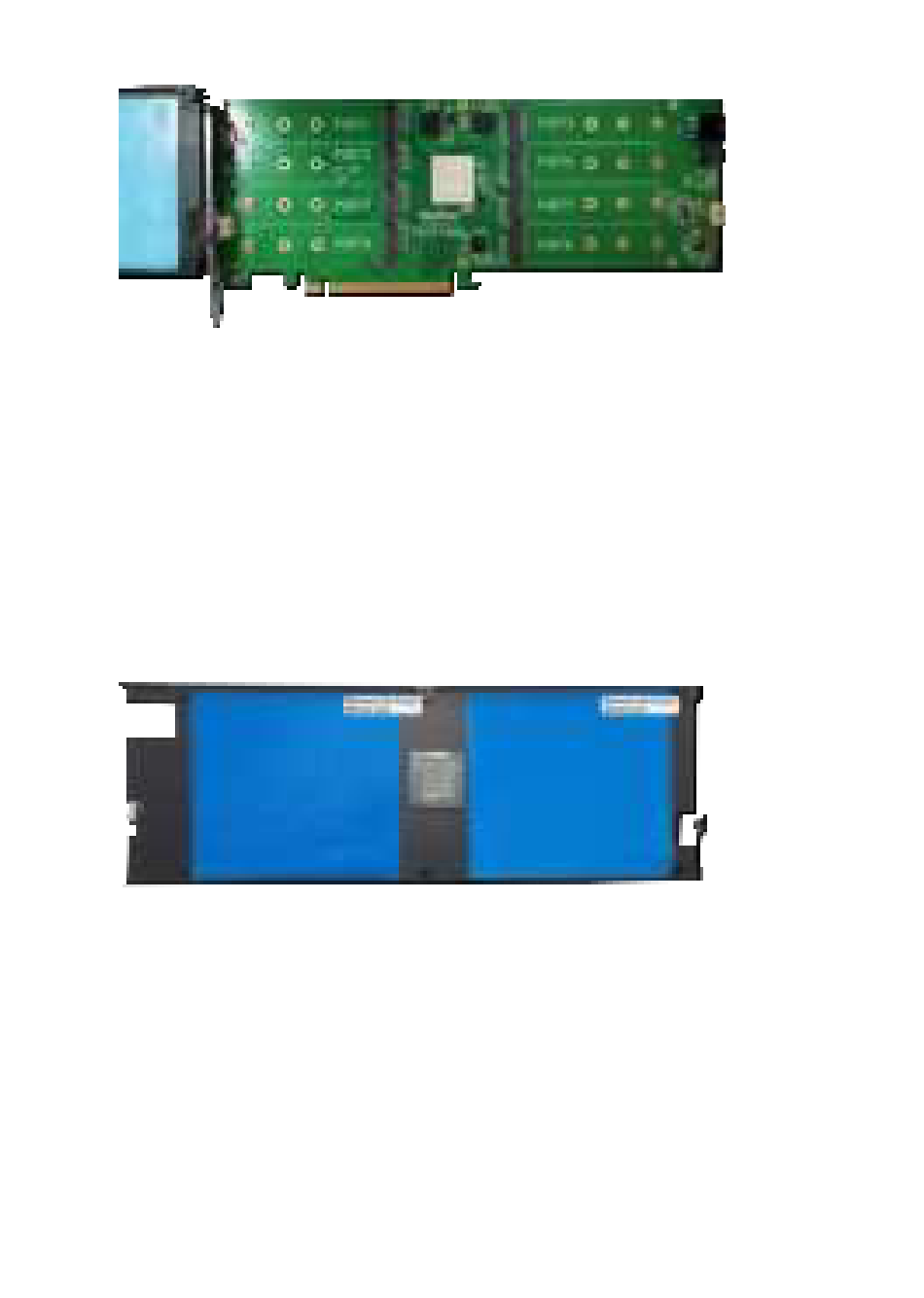

Step 3. After removing the casing, carefully turn it over to view the

thermal pad. The blue films must be removed from the pad before

reinstalling the panel. These films protect the pad from damage and

foreign objects prior to installation, however, they will also prevent the

thermal pad from conducting the heat away from the NVMe SSD's if

we don't remove it.

Step 4. These 8 screws are used to install the NVMe SSD's.
