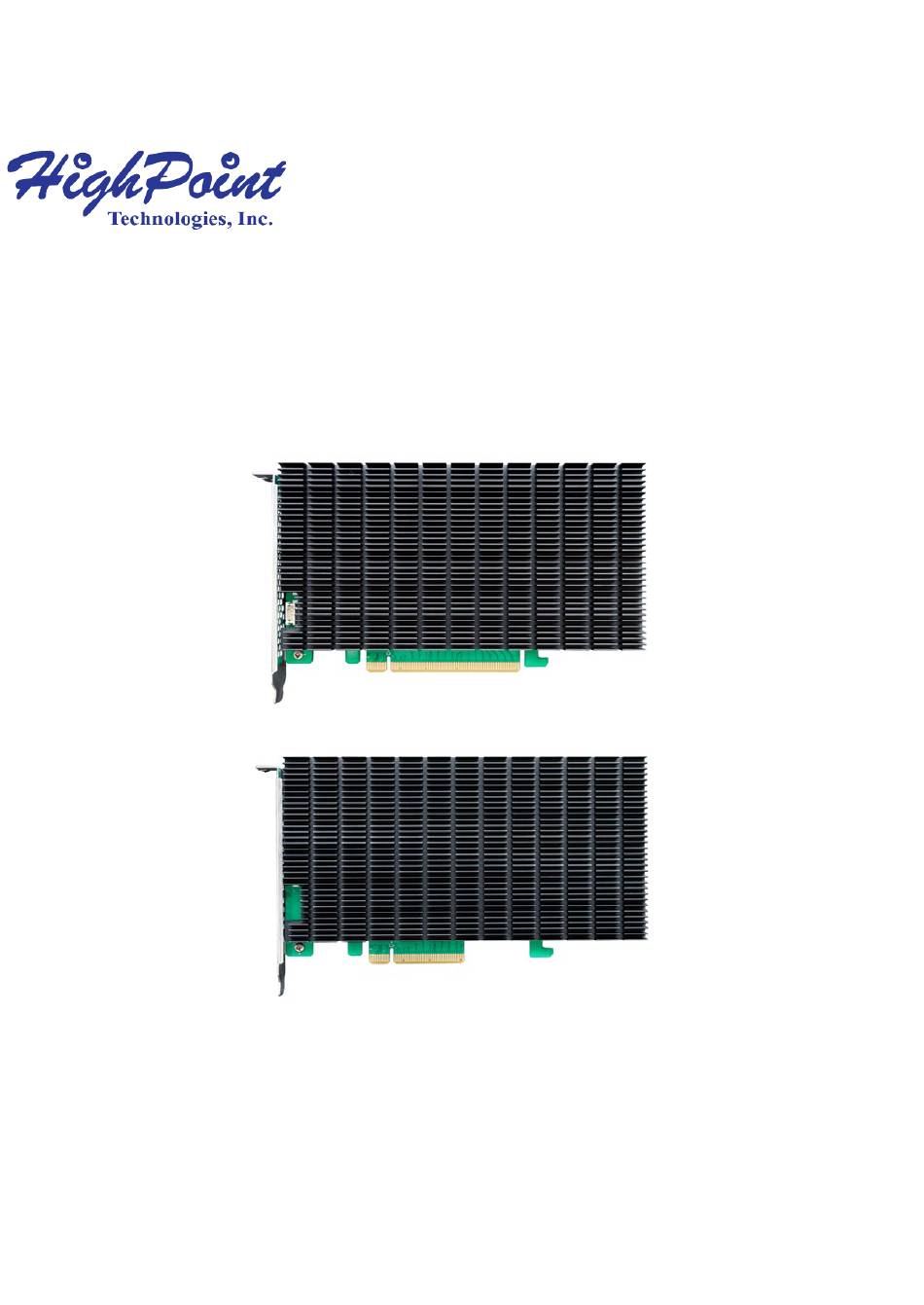

- Page 1 SSD7104/SSD7204 4x M.2 Port to PCIe 3.0x8/x16 NVMe RAID Controller SSD7104 SSD7204 Quick Installation Guide V1.06...
- Page 2 SSD7104/SSD7204 Quick Installation Guide (QIG) This guide includes hardware descriptions of the SSD7104 and SSD7204 NVMe RAID controllers, explains how to safely install NVMe SSDs into each card, and provides a series of Resource links for additional installation guides, compatibility lists and software updates.
- Page 3 You must have at least one NVMe SSD installed into the SSD7104/SSD7204 controller. The SSD7104 must be installed into a PCIe 3.0 and 4.0 x16 lanes. The SSD7204 must be installed into a PCIe 3.0 and 4.0 x8 or x16 lanes.
- Page 4 SSD7104 Hardware Front View Full-length black anodized aluminum, fan-less PCIe x16 host interface with Smart Switching...

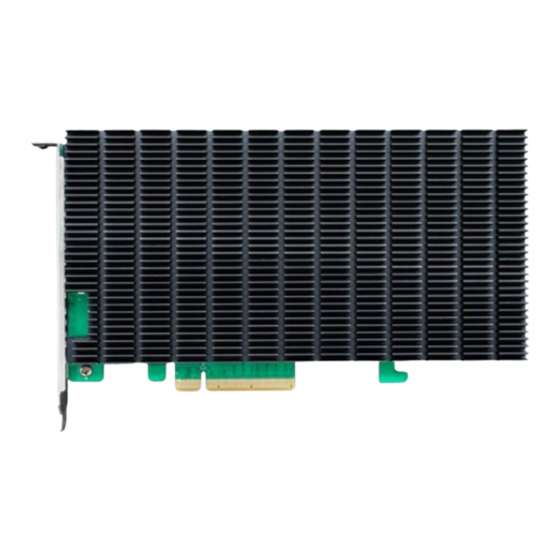

- Page 5 SSD7204 Hardware Front View Full-length black anodized aluminum, fan-less PCIe x8 host interface with Smart Switching...
- Page 6 NVMe Drive Installation: Using the SSD7204 as an example: Step 1. On the rear of the SSD7204, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7204.
- Page 7 Step 3. These 4 screws are used to install the NVMe SSD’s. The SSD7204 can support any M.2 form factor (2242, 2260, 2280, and 22110). Step 4. Please remove the screws on the right side of SSD7204 Step 5. Gently insert the SSD into the slot. Note: Please make sure all disks are clean before you insert them into the slot to avoid unexpected situations.
- Page 8 Step 6. Refasten the screw to secure the SSD. Repeat Steps 4 to 6 to install the remaining SSD. Note: Make sure the SSDs are carefully, but securely installed into each M.2 port. Loose connections can cause a variety of stability and performance issues, and may ultimately result in data loss.
- Page 9 Step 8. On the rear of the SSD7204, refasten the six screws that were removed in step 1. Note Make sure the aluminum heatsink is properly aligned with the ： controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7204.
-
Page 10: Optional Accessories
Fan Cooling Unit HS8004F A low-noise fan with a full-length anodized aluminum heat sink Fan Cooling Unit Compatible NVMe Controllers SSD7104 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller SSD7104F 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller... - Page 11 SSD7204 4x M.2 Port to PCIe 3.0x8 NVMe RAID Controller SSD7105 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller SSD7505 4x M.2 Port to PCIe 4.0x16 NVMe RAID Controller...
- Page 12 Resources A variety of manuals, guides and FAQ’s are available for the SSD7104 /SSD7204 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/gen3-nvme-m2-non-bootable...
-
Page 13: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7104/SSD7204 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
