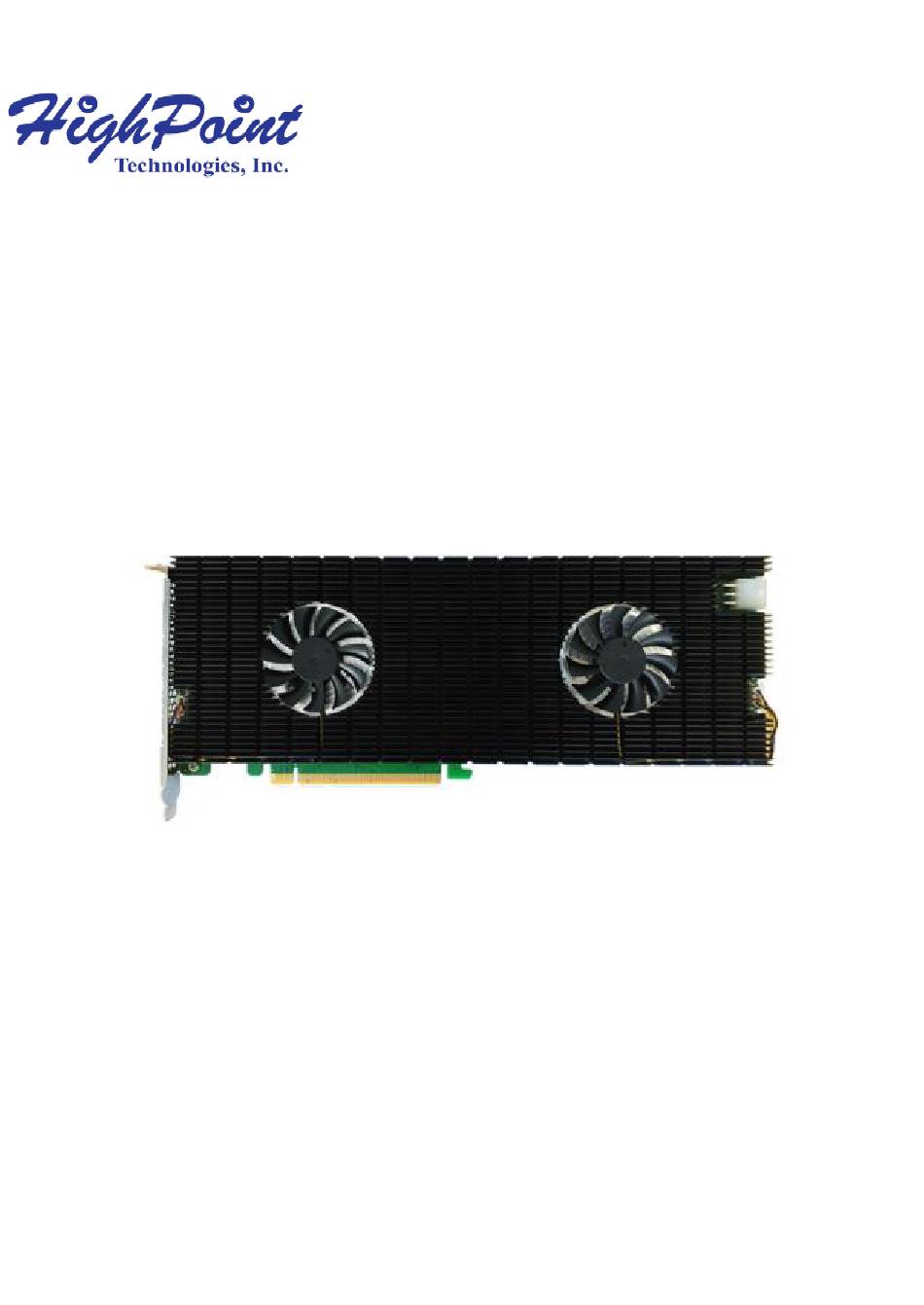

- Page 1 SSD7140 8x M.2 Port to PCIe 3.0x16 NVMe RAID Controller Quick Installation Guide V1.02...
-
Page 2: System Requirements

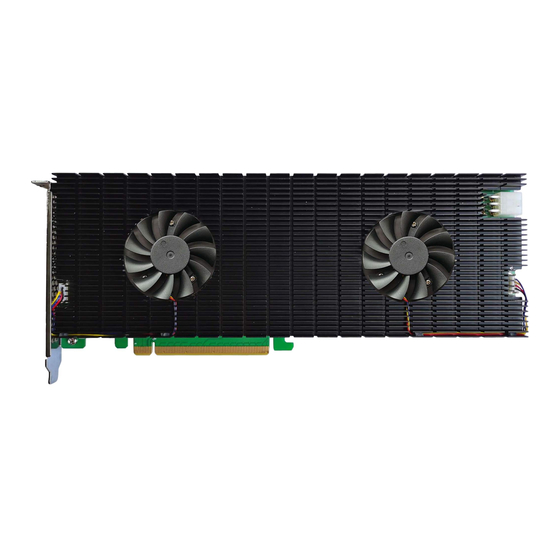

System with a free PCIe3.0 (or 4.0) x16 slot • Windows 10 , Windows Server 2016 and Windows Server 2019 • Linux kernel 3.10 and later • macOS 10.13 and later SSD7140 Kit Content • SSD7140 Controller Card • Quick Installation Guide SSD7140 Hardware Front View... -
Page 3: Hardware Installation
Hardware Installation: Step 1. On the rear of the SSD7140, remove the six screws that secure the unit’s heat sink to the PCB. Step 2. Carefully remove fan’s power cable from the right-side of the heatsink as shown below, then carefully flip the heatsink to the left (like turning a page from a book). - Page 4 Step 3. These 8 screws are used to install the NVMe SSD’s. Step 4. Please remove these screws from each of the M.2 slots. Step 5. Gently insert the SSD into the slot. Step 6. Refasten the screw to secure the SSD.
- Page 5 Note: Make sure each SSD is carefully aligned and fastened to the SSD7140 using the supplied screws. Loosely attached SSDs may not be detected by the SSD7140 or host system. Step 8. Carefully reinsert in the power supply cable of the cooling fan...
- Page 6 Step 9. On the rear of the SSD7140, refasten the 6 screws that were removed in step 1. Step 10. Power up the SSD external power supply Note: If the external power supply is not powered on, the SSDs may drop offline or remain undetected, which could lead to data...
- Page 7 SSD7140 relies on two power sources to support eight SSDs; power supplied through the PCIe bus, and power from the system’s PSU via an external power cable. If the external cable is not connected, there will be insufficient power to support all 8 SSD’s;...
- Page 8 Note: Install the driver in the system first and then install the board Resources A variety of manuals, guides and FAQ’s are available for the SSD7140 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides.
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7140, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/main.php HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
