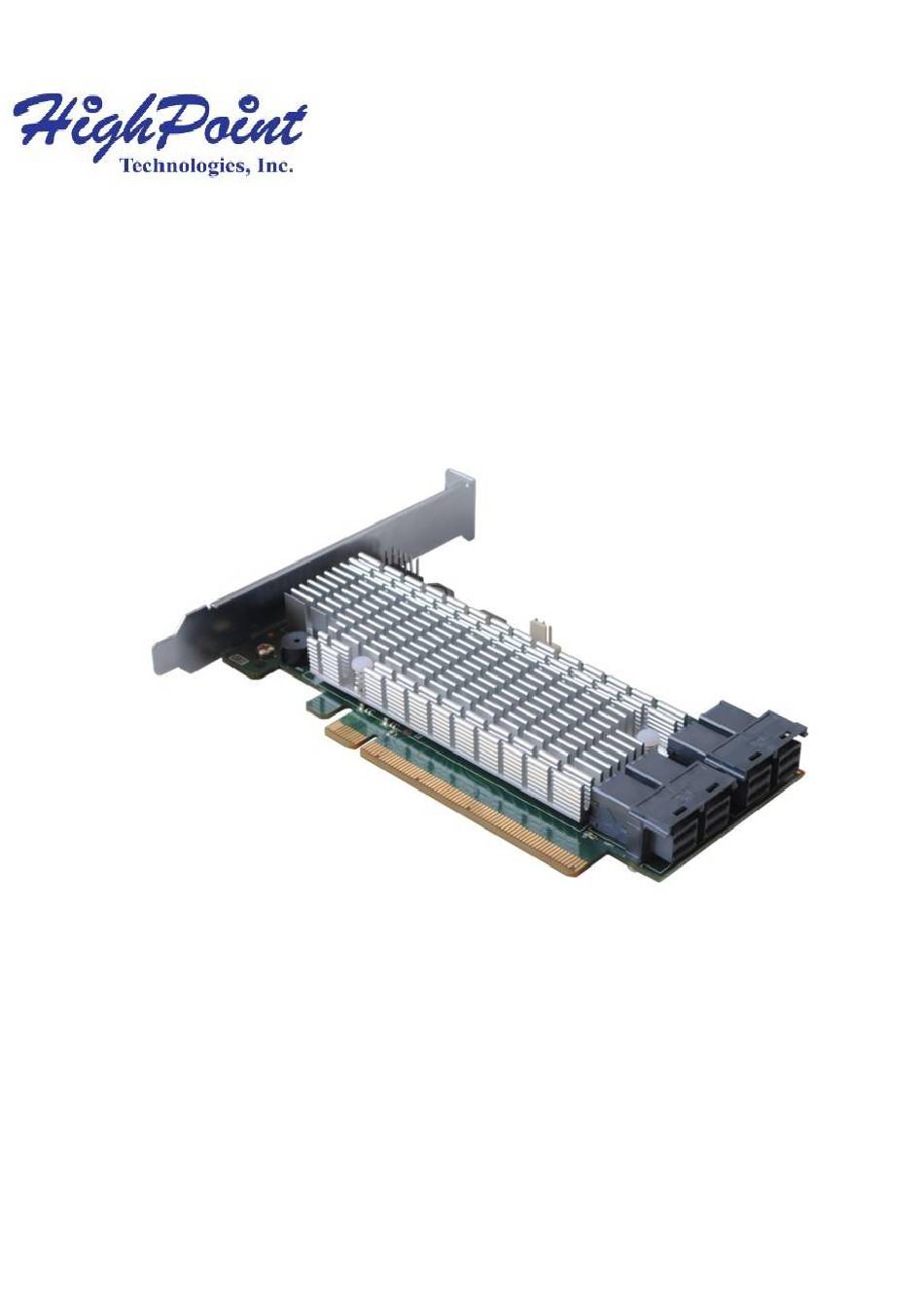

- Page 1 SSD7120 NVMe U.2 RAID Controller Quick Installation Guide V1.03...
- Page 2 Data RAID Prerequisites Data arrays are used exclusively for storage – they cannot be used to boot a system. • You must have at least one NVMe SSD installed into the SSD7120 controller. • System with an empty PCIe 3.0 x16 slot •...

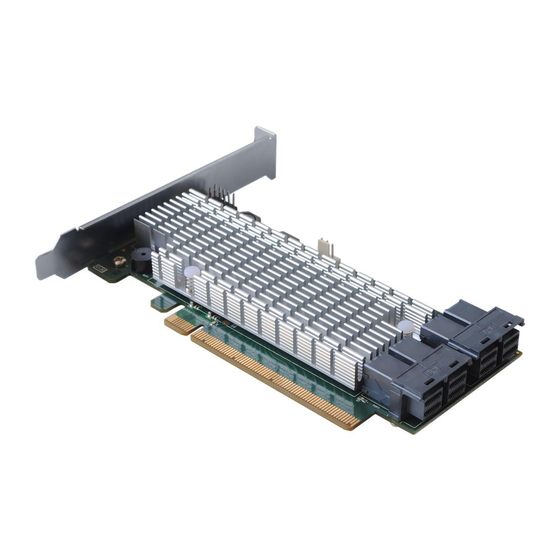

- Page 3 SSD7120 Hardware Overview Front View SSD7120 Hardware Installation: Remove your system cover. Insert the SSD7120 card into an open PCI-E 3.0/4.0 x16 slot on the motherboard. After you have inserted the SSD7120 card, you can connect the SFF-8643 cables.
- Page 4 SFF-8639 Shown above is an SFF-8643 to U.2 SFF-8639 cable with a 15- pin SATA power connector. Connect the SSD7120 to the NVMe SSD’s using the appropriate SFF-8643 cables. The SFF-8639 port should be connected to the NVMe SSD’s U.2 port. The 15 pin SATA power connector should be connected the system’s power...
- Page 5 Note: Install the driver in the system first and then install the board ！ Resources A variety of manuals, guides and FAQ’s are available for the SSD7120 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides.
-
Page 6: Customer Support
FAQ & Troubleshooting: https://highpoint-tech.com/USA_new/series-ssd7120-faq.htm Customer Support If you encounter any problems while utilizing the SSD7120 RAID controller, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/...
