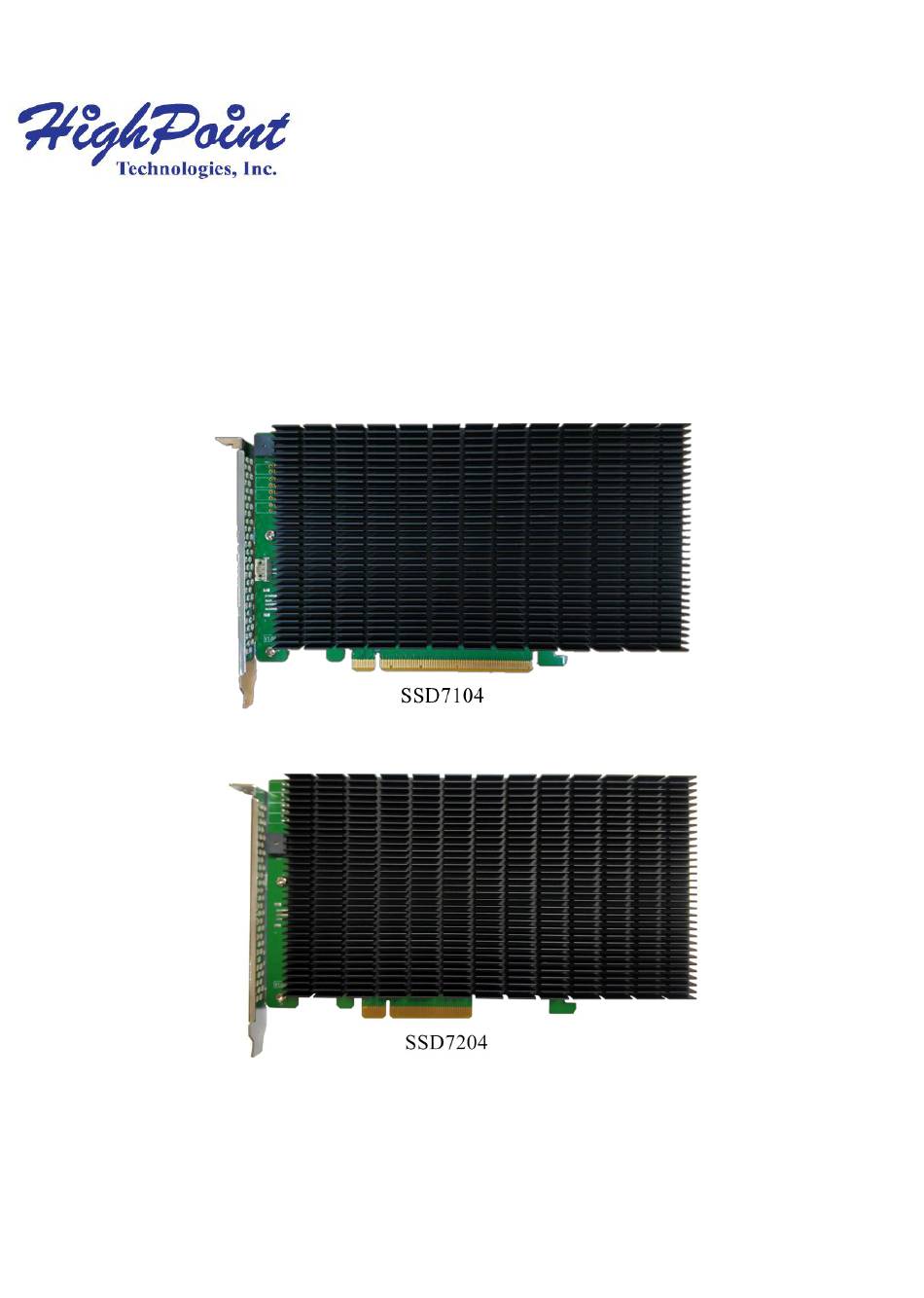

- Page 1 SSD7104/SSD7204 4x M.2 Port to PCIe 3.0x8/x16 NVMe RAID Controller Quick Installation Guide V1.02...
- Page 2 SSD7104/SSD7204 Quick Installation Guide (QIG) This guide includes hardware descriptions of the SSD7104 and SSD7204 NVMe RAID controllers, explains how to safely install NVMe SSD’s into each card, and provides a series of Resource links for additional installation guides, compatibility lists and software...
- Page 3 SSD7104 Kit Content SSD7104 Controller Card Quick Installation Guide SSD7204 Kit Content SSD7204 Controller Card Quick Installation Guide ...
- Page 4 You must have at least one NVMe SSD installed into the SSD7104/SSD7204 controller. The SSD7104 must be installed into a PCIe 3.0 and 4.0 x16 lanes. The SSD7204 must be installed into a PCIe 3.0 and 4.0 x8 or x16 lanes.

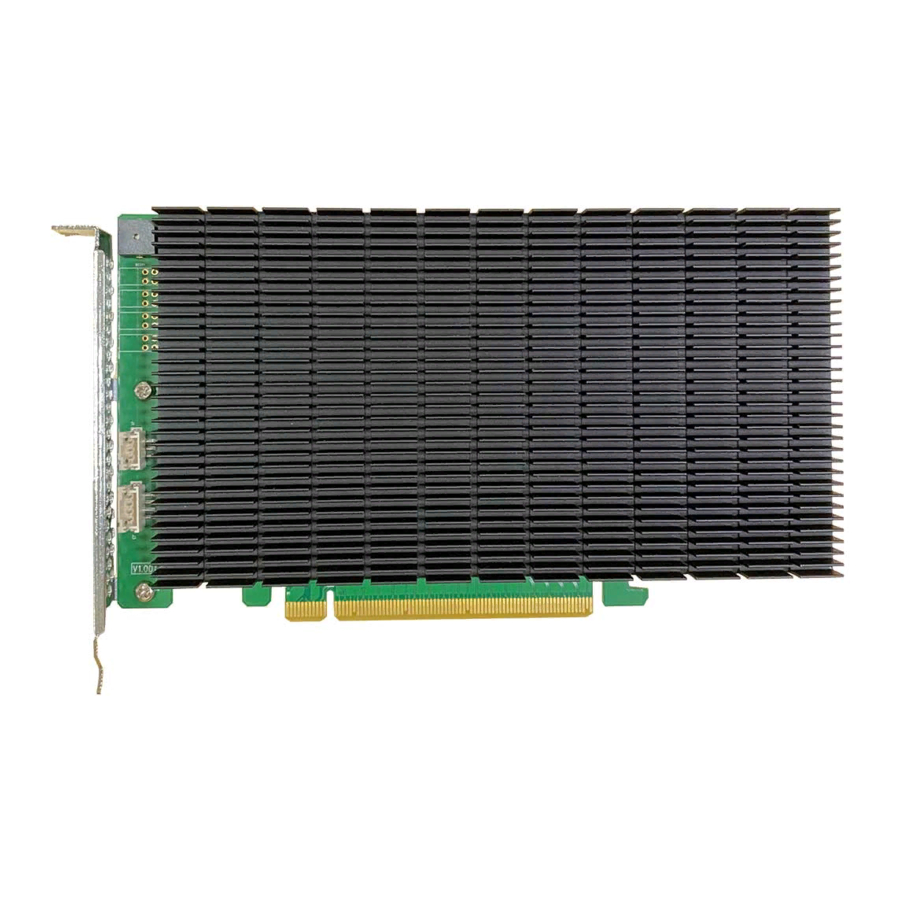

- Page 5 SSD7104 Hardware Front View Full-length black anodized, fan-less heatsink PCIe x16 host interface with Smart Switching...
- Page 6 SSD7204 Hardware Front View Full-length black anodized, fan-less heatsink PCIe x8 host interface with Smart Switching...
-
Page 7: Drive Installation
NVMe Drive Installation: Take SSD7204 as an example: Step 1. On the rear of the SSD7204, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7204. - Page 8 The SSD7204 can support any M.2 form factor (2242, 2260, 2280, and 22110). Step 3. Please remove the screws on the right side of SSD7204 Step 4. Gently insert the SSD into the slot. Step 5. Refasten the screw to secure the SSD. Repeat Steps 3 to 5 to install the remaining SSD.
- Page 9 Step 6. Replace the heat sink after installing all SSDs Step 7. On the rear of the SSD7204, refasten the six screws that were removed in step 1. Note ： Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7204.
- Page 10 Note: Install the driver in the system first and then install the board! Resources A variety of manuals, guides and FAQ’s are available for the SSD7104 /SSD7204 RAID controller. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides.
-
Page 11: Customer Support
FAQ & Troubleshooting: https://highpoint-tech.com/USA_new/support-faq-nvme.htm Customer Support If you encounter any problems while utilizing the SSD7104/SSD7204 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc.
