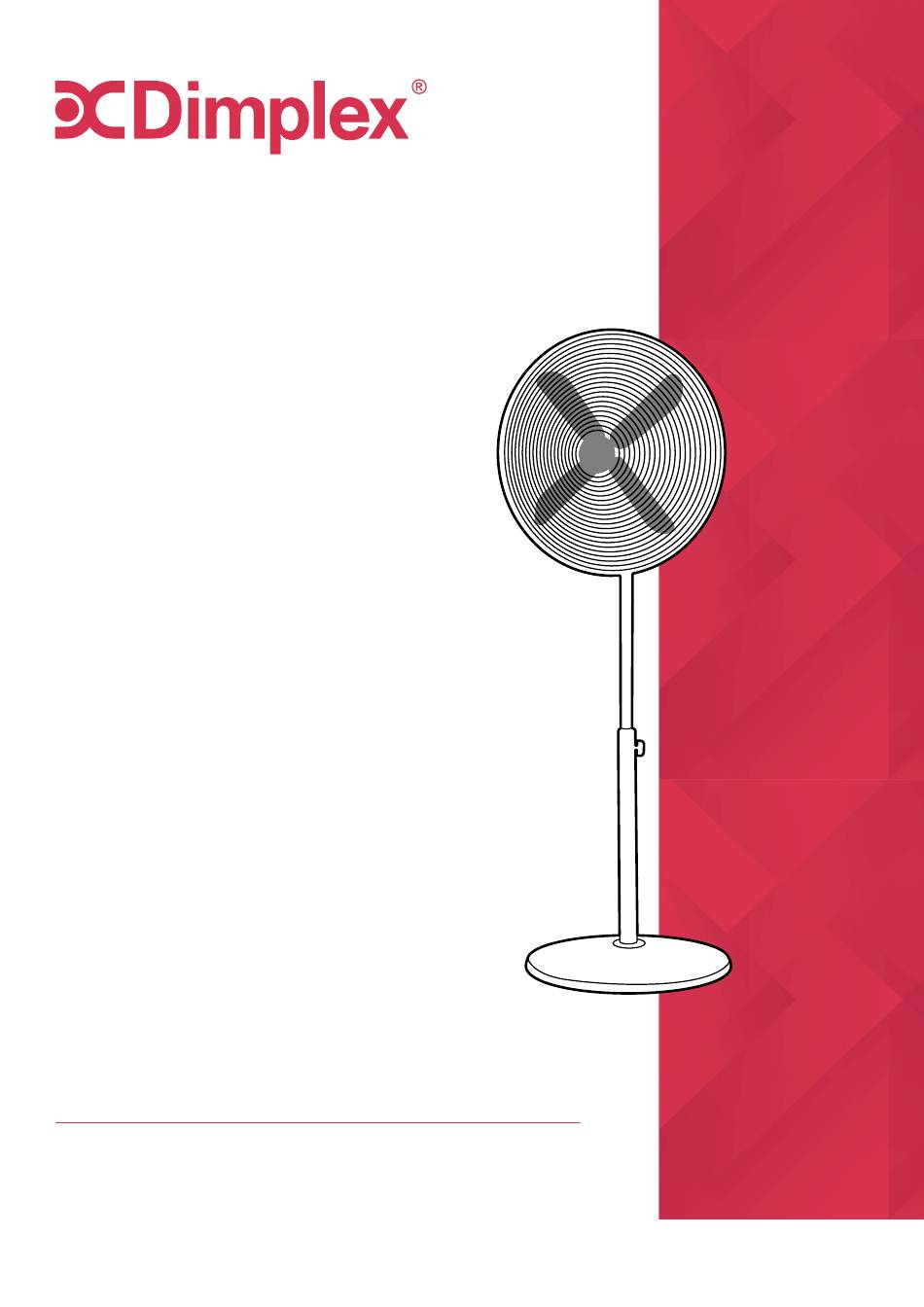

- Page 1 INSTRUCTION MANUAL 40cm HV Pedestal Fan Model: DCPF40CH For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.
- Page 3 or in small enclosed spaces. • Never use the mains lead as a carrying strap or pulling lead. • To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters. • DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards. cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specification
Specification Model no. DCPF40CH Colour Chrome Power supply 220-240V~, 50Hz Rated power Speed settings Modes Timer Air volume 50m3/min Adjustable height Yes - Max height 1.16m Tilt adjustable head Horizontal oscillation Noise level (MAX) 65dB(A) Weight (net) 5.9kg Dimensions (w x d x h) 450 x 368 x 1160mm •... - Page 6 Parts Fan blade Rear Guard Retaining clip Motor shaft Front guard Fixing screws Speed control Motor housing Power cord Adjustment knob Bolt Pivot knob Fan blade screw Screw Upper pillar Neck Retaining screw Height adjustment knob Main pillar Stand base Weight Clamping washer L-shaped screw...
- Page 7 Assembly First assemble the base to the main pillar - refer to Fig. 1 & instructions below: 1. First unscrew the L-shaped screw (18) and remove it and the clamping washer (17) from the bottom of the main pillar (6). 2.
- Page 8 Assembly Lastly, attach the fan head to the motor - refer to Fig. 3 & the instructions below: 1. Remove the protective sleeve from the motor shaft (12) and the four fixing screws from the motor housing. Attach the rear guard (4) to the motor housing (9) using the four screws you just removed.
-
Page 9: Operation
Operation 1. Place the fan on a firm level surface. Connect the plug to a power supply and switch on the power. 2. Turn the fan ON by rotating the speed control knob on the motor housing in clockwise direction. 3. - Page 10 Cleaning Over time, dust can accumulate on the front & rear grille cover and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 11: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 13 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
