PAW-1109-EU(12010)
Installation Manual
LUMEN AVANT

Observe Safety Precautions for Safety!

These safety precautions are essential for safe
installation and use of the product.
Please read the precautions thoroughly before
installing the product.

Explanation of Hazard Symbols

WARNING
Indicates a potentially hazardous
...
situation which, if not avoided, could
result in death or serious injury.
CAUTION Indicates a potentially hazardous
...
situation which, if not avoided, may
result in minor or moderate injury or
damage to other property.
WARNING
Install the product correctly according to this Installation Manual.
* Electric shock, fire, or injuries may result.
* Water may leak, resulting in water flooding over the floor.
Do not allow any anyone except an authorized service
technician to disassemble, repair or modify this product.
* Electric shock, fire, or injuries may result.
Do not pour water or cleanser onto the body or the power plug.
* Electric shock or fire may result.
Be sure to connect the grounding lead.
* Electric shock may result in case of malfunction of the product or leakage.
Do not install the product in a constantly humid location.
* Electric shock or fire may result.
Do not use any loose outlet or an ungrounded outlet.
* Electric shock or fire may result.
Do not nick, damage, carve, bend unduly, pull, twist or
bind the power cord, place any heavy object on it, or
pinch the power cord between any objects.
* The power cord may be damaged, causing electric shock
or fire.
Do not connect the product to any water source other than tap water.
* The inside of the product may be corroded, causing an
electric shock, fire or skin inflammation.
Do not remove or insert the power plug with wet hands.
* Electric shock may result.
● Do not use the product with any power supply other than 220 - 240 VAC.
● Do not plug any other appliances into the same power outlet.
* Fire may result.
Firmly insert the power plug into the outlet.
* Electric shock or fire may result.
CAUTION
Flush any foreign matter and rust in the pipes
completely before connecting the product.
* Damage inside the product may cause water leakage, resulting in water flooding over the floor.
● When removing the strainers, be sure to close the
water shutoff valve.
● When attaching the strainers, tighten these
completely so that there is no clearance.
* Water may leak, resulting in water flooding over the floor.
Be sure to adjust the water shutoff valve and check
for water leakage after installation.
* Water may leak, resulting in water flooding over the floor.
If freezing weather is anticipated before handing the
product to the customer, drain water and leave it.
* Damage from freezing may cause water leakage, resulting in water flooding over the floor.
E-Bidet.ru - официальный дилер Roca Lumen Avant в РФ (http://e-bidet.ru)
Due proofing toilet bowl 811340400， 811340492

Checking Power Supply

Follow the instructions below when performing wiring and installing the outlet.
Consign wiring work to a qualified electrician.
● Be sure to perform grounding work.
* Consign wiring work to a qualifi ed electrician.
● This product must be grounded. This allows the current to escape in case of
a short circuit, reducing the possibility of electric shock. The power cord is
equipped with a grounding lead. Do not use an adapter with the power plug
of the product, or do not connect the plug via any alternative method to an
inappropriately structured outlet.
● Install the outlet in a position as high above the floor as allowed by the length of the
cords to avoid exposure to splashing water. The length of the power cord is 1.0 m.
* Do not insert the power plug into the outlet until installation is completed. Failure
to observe this may cause malfunction of the product.

Water Supply

Be sure to connect the water supply parts to the household water supply line.
Using intermediate, industrial or well water will affect the durability of electrical and
mechanical parts, resulting in accidents.

Water Pressure

● The minimum operation water pressure is 17 L per minute, and at least 0.1 MPa
(1.0 kgf/cm ) when flowing. The maximum water pressure is 0.75 MPa (7.6 kgf/cm
2
When using other appliances simultaneously, water pressure of at least 0.1 MPa
(1.0 kgf/cm ) is required. If the minimum water pressure is less than this value,
2
the ideal washing performance may not be obtained.
● The above water pressure cannot be obtained if the pipes are 10A or less. Use
pipes of 15A (13 mm) or more.
● Do not hold the mounting plate of the toilet bowl.
* Deformation of the mounting plate may hinder correct
connection or correct flushing of the toilet, or may cause
water leakage.
● When lifting the toilet bowl, be sure to use
the handhold and lift the toilet bowl with two
persons.
● Be sure to work in two person teams when
installing the toilet bowl.

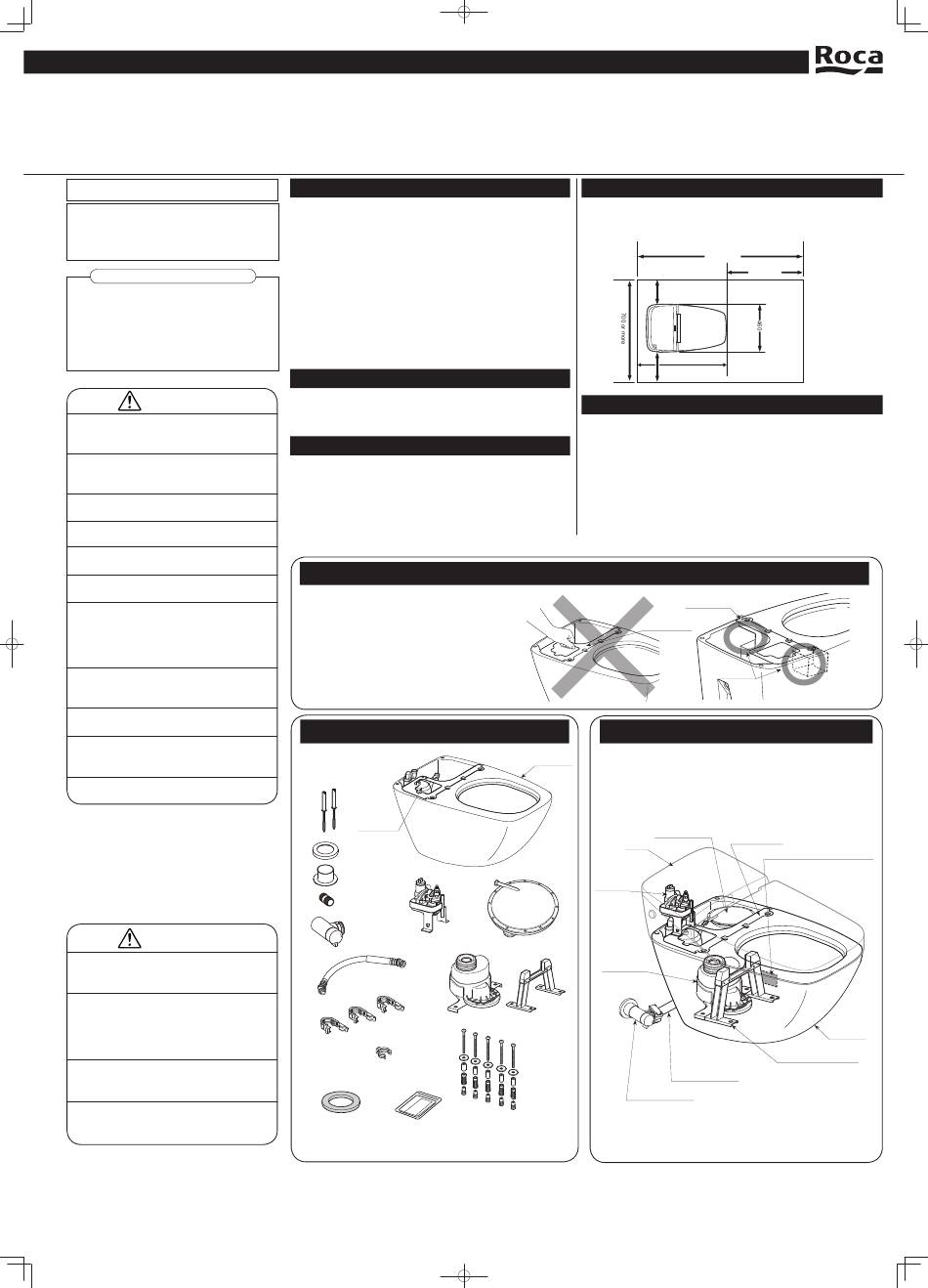

Checking Parts

(check inside the package)
Toilet bowl
securing screws
Driving unit
Ring shaped cover
Water supply
Water valve
pipe cover
Water supply
pipe
Water shutoff valve
Drain socket
Water supply hose
(650 mm)
Clip (large/silver)
Clip (large/white)
Clip (large/white)
Clip (medium)
Gasket
Installation manuals
E-Bidet.ru - официальный дилер Roca Lumen Avant в РФ (http://e-bidet.ru)

Minimum Installation Clearance

The space required for installing the toilet is as shown in the figure below.
* Secure at least 70 mm space on both the left and right of the toilet bowl when viewed
from the front.
Secure Water Supply Pipe!
Firmly secure the water supply pipe to prevent any looseness.
* Abnormal noise or water leakage may result.
).
2

Pre-installation Precautions

Mounting plate
Toilet bowl
Suction film unit
Body
Suction film unit
Water valve
Drain socket
Floor securing member
Water shutoff valve
Floor securing AY bolts
1190 or more
400 or more
70 or more
790
70 or more
Unit: mm
Mounting plate
Handhold
Names of Parts
Mounting plate
Product No. sticker
(Right side when viewed from front of toilet bowl)
Toilet bowl
Floor securing member
Water supply hose
