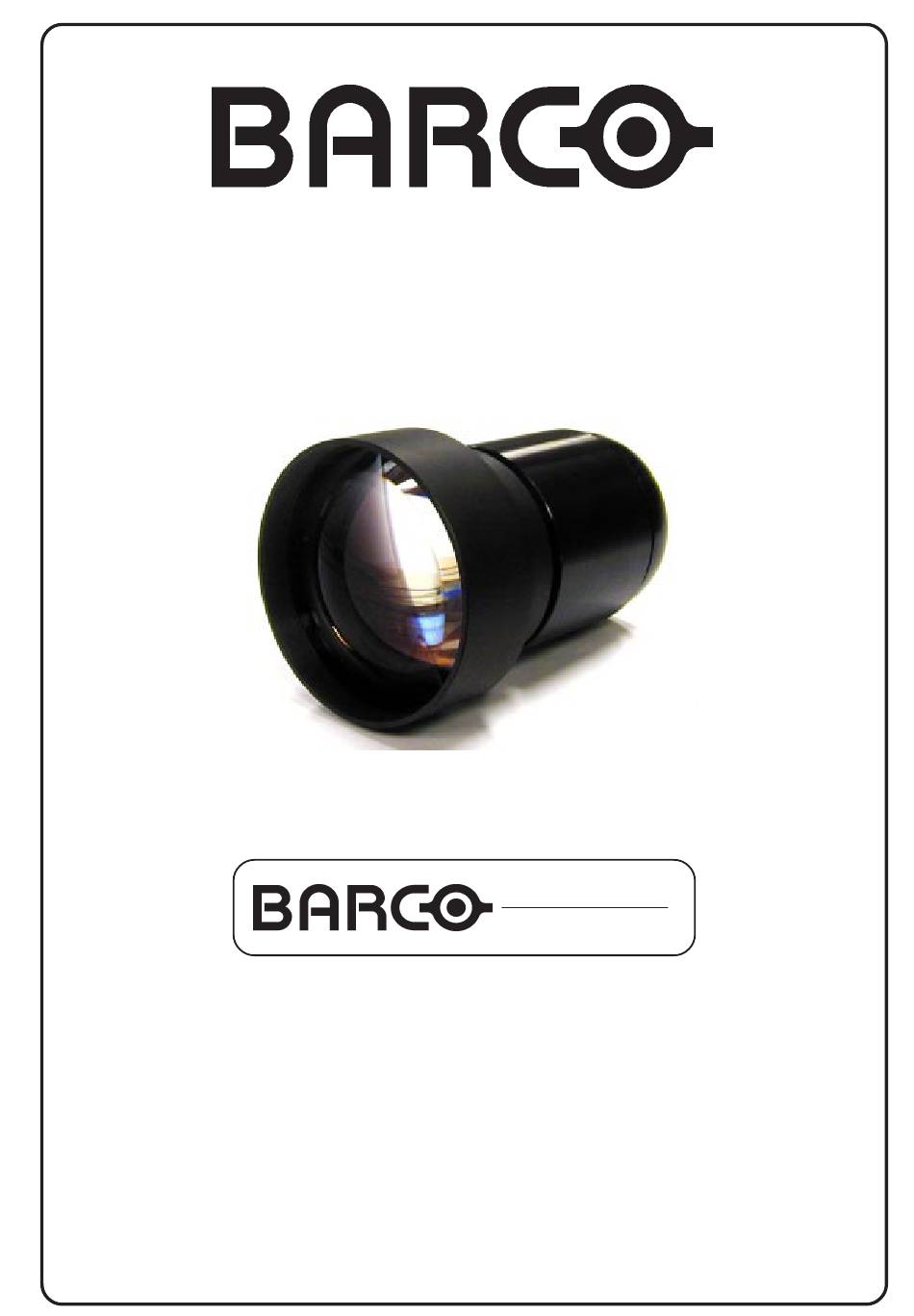

- Page 1 BARCO PROJECTION SYSTEMS QVD(7:1) R9841230 INSTALLATION MANUAL LENS QVD(7:1) FOR IQ SERIES Date : Rev : Art. No. : 09042002 R5976393...
- Page 2 Produced by BARCO NV, April 2002. All rights reserved. Trademarks are the rights of their respective owners. BARCO n.v./Projection Systems Noordlaan 5 B-8520 Kuurne Belgium Tel : +32/56/368211 Fax : +32/56/351651 E-mail : sales.bps@barco.com Visite Barco at the web : http://www.barco.com Printed in Belgium...
- Page 3 Contents of the Kit Lens Type The kit contains a QVD(7:1) lens. Part Listing The following parts are included in the kit : Part Number Description B400591 LENS QVD(7:1) R379058 Toraysee cloth 24x24 R5976393 MAN INS QVD(7:1) BARCO ——————————————————— 3 ————————————— Projection Systems...
- Page 4 Remove the lens out of its housing image 1 image 2 image 3 To be continued on next page BARCO ——————————————————— 4 ————————————— Projection Systems...
- Page 5 Slide the lensdoor of the projector to the left. page 4 Fix the lens by placing it in the housing page 4 Push carefully to lock (“click” sound) the lens in the housing page 4 Slide the lensdoor back to the right BARCO ——————————————————— 5 ————————————— Projection Systems...
- Page 6 Illustrations MENU BACK ENTER P IP P AUS E LO GO DIG I ZOO M PHASE TINT CO LO R BRIGHTN CO NTR LENS LENS ZOO M SHIF T LENS FO CUS image 1 BARCO ——————————————————— 6 ————————————— Projection Systems...
- Page 7 Do not use fabric softener when washing the cleaning cloth or softener sheets when drying the cloth. Do not use liquid cleaners on the cloth as doing so will contaminate the cloth. Order number for a new Toraysee cloth : R379058. Toraysee Cloth Order Number BARCO ——————————————————— 7 ————————————— Projection Systems...
