Cable Cubby 100 • Installation Guide (Continued)
Step 1 - Prepare the Furniture
Follow the instructions below to cut a hole in the surface where the enclosure will be installed. Read the following information
before making a cut.
Step 1a - Determine the best location for the enclosure.
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
Ensure that there is ample space under the furniture for cables. Allow at least 36 inches of cable loop for each cable (see
Step 4 – Route and Connect Cables
Step 1b - Choose a method for cutting the hole in the furniture, and cut the hole.
CAUTION:
Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
ATTENTION:
Portez des lunettes de sécurité lorsque vous utilisez l'équipement électrique. Ne pas respecter cela peut
conduire à une blessure à l'oeil.
ATTENTION:
The opening in the furniture for the Cable Cubby should be cut only by licensed and bonded
craftspeople. Exercise care to prevent scarring or damaging the furniture.
ATTENTION :
L'ouverture dans la meuble pour le Cable Cubby devrait être coupée seulement par des artisans
autorisés et qualifiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l'endommager.

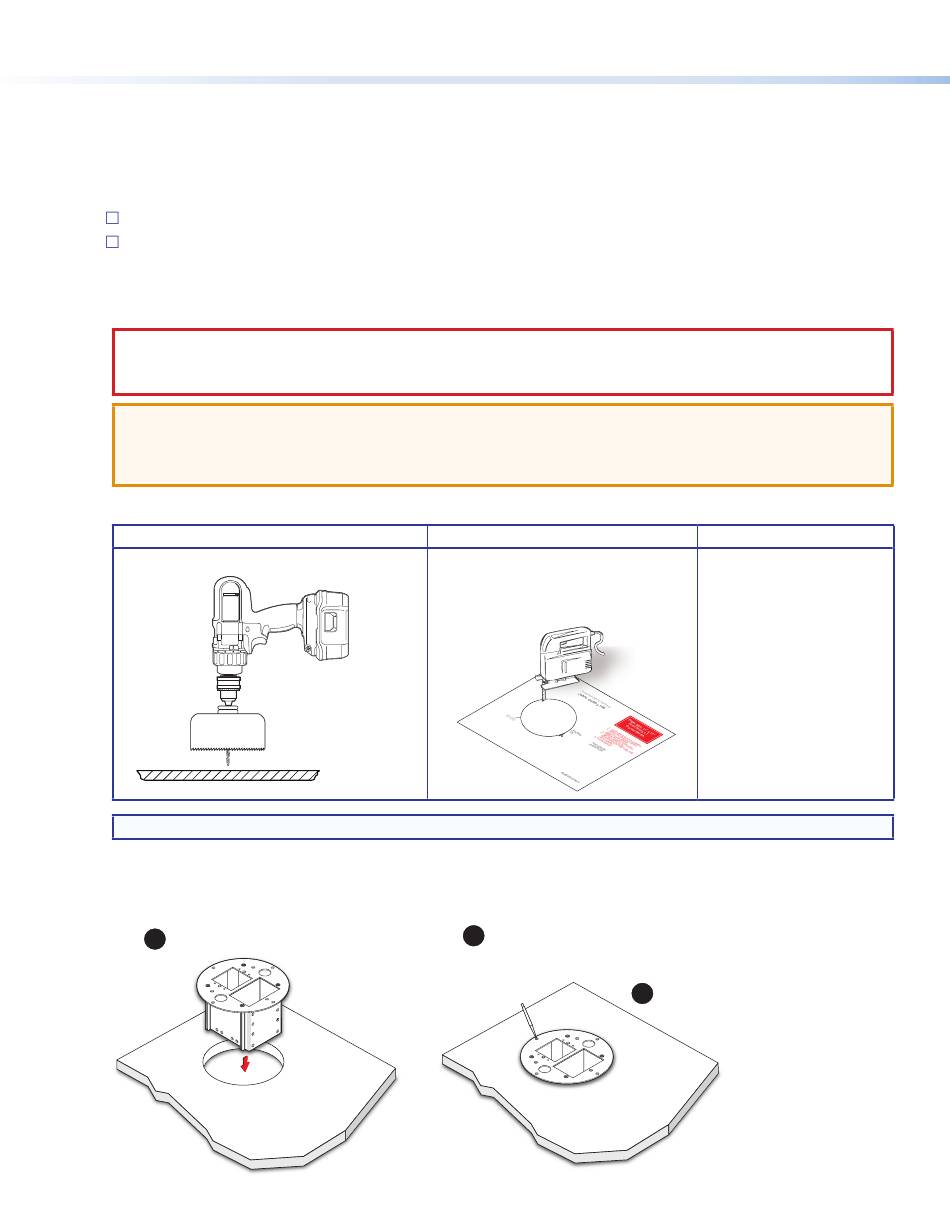

Choose one of the following methods for cutting the hole:
Power Drill with 4 inch (102 mm) Hole Saw
NOTE:
Insert the Cable Cubby 100 into the hole to test the fit. If necessary, carefully enlarge the opening.
Step 1c - Drill the pilot holes into the furniture.
Follow these steps to drill the pilot holes for the Cable Cubby 100, then proceed to the next section.
1
Insert the Cable Cubby into the hole.
2
on page 5).
Jigsaw and Paper Cut-Out Template
Dimensions and cut-out templates are
available online on the product page at
www.extron.com.
2
Position the Cable Cubby as you wish it to be installed on the furniture.
With the Cable Cubby in place, mark the four outermost holes
on the top surface.
CNC Wood Router
If using a CNC wood router
or other precise machinery,
use the exact cut-out
dimensions.
Jigsaw
Cut-Out Dimensions:
4 inch (102 mm) round
diameter
3
Remove the Cable Cubby and drill
four pilot holes at the marked locations
on the furniture.
