IMPORTANT SAFETY INFORMATION
•
Ensure the battery compartments are secure.
Only use the batteries recommended. Never mix old and new batteries or types.
•
•
Ensure correct fit of batteries, observing the plus and minus marks on both the battery and
the compartment.
•
Replace a full set of batteries at one time.
•
Store unused batteries in their packaging and keep away from metal objects that may cause
a short circuit.
Remove dead batteries from equipment. Never dispose of batteries in a fire.
•
Never attempt to recharge ordinary batteries.
•
•
Remove batteries from appliances that will not be used again for a long time.
•
Supervise children with batteries at all times.
•
Remember to keep small button cell and AAA batteries away from small children as they can
easily be swallowed.
•
Seek medical attention if batteries are swallowed.
WHAT's IN THE BOX
1 x Emitter
1 x Receiver
1 x Pair of Earphones
1 x RJ45 Cable
1 x Instruction Manual 1 Toolkit
1 x Carry Case

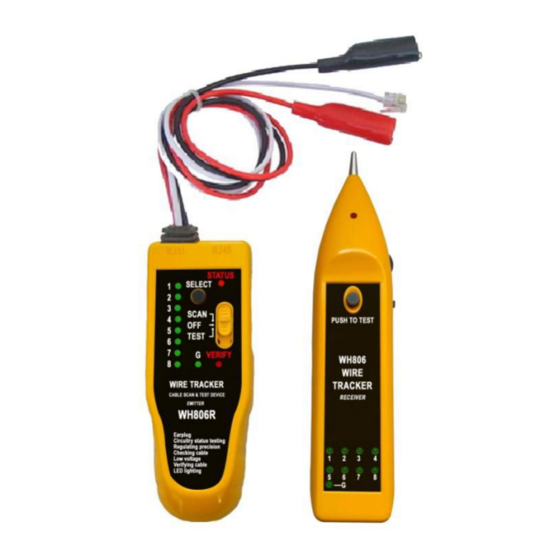

Network Cable Tester and Tracker
Model: 72-2665
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tenma 72-2665
Summary of Contents for Tenma 72-2665
- Page 1 Network Cable Tester and Tracker Model: 72-2665 IMPORTANT SAFETY INFORMATION • Ensure the battery compartments are secure. Only use the batteries recommended. Never mix old and new batteries or types. • • Ensure correct fit of batteries, observing the plus and minus marks on both the battery and the compartment.
- Page 2 OPERATION 1) Insert the RJ45 plugs at the ends of the cable into the corresponding sockets on the emitter and the receiver 2) Set the function switch of the emitter to “TEST”, the testing indicator will flash “VERIFY”, this shows the emitter is functioning normally 3) Following the 8 wire sequences, the presence of short-circuit, broken wires, open circuits or crossed wires can be ascertained.
- Page 3 Network wire finding function 1) Insert the RJ45 plug of the network cable into the RJ45 socket of the emitter. 2) Set the function switch of the emitter to “SCAN”. The status indicator will flash “STATUS” 3) Press and hold the test button of the receiver, use the probe on the receiver to locate the target wire.
