Page 1

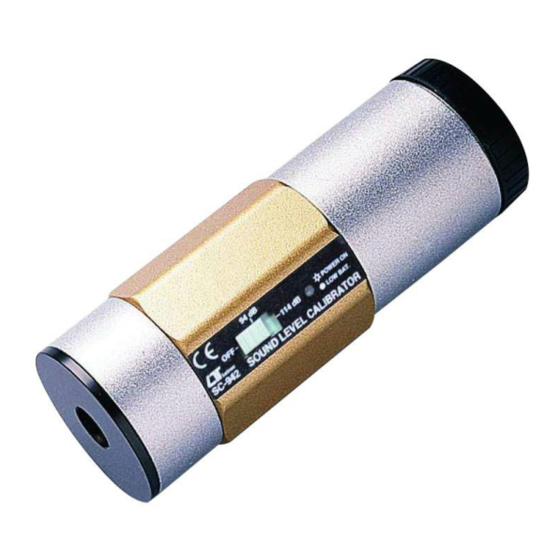

Sound Level Meter Calibrator Model: 72-2680...
Page 2
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • Please operate according to this manual, otherwise the calibration provided by the device will be impaired or fail. • Check the condition before using. If you find any cracking, breakage, damage or abnormality, or you consider the device broken, stop using the device immediately.
Page 3
CALIBRATION FUNCTION • If the sound level meter to be calibrated has a 0.5” microphone, fit the supplied adaptor sleeve to the coupler on the Calibrator. 1.0” microphones fit directly without the adapter. • Insert the microphone of the meter to be calibrated carefully all the way into the coupler section of the Calibrator.
Page 4
SPECIFICATION Frequency 1000Hz ±2% Calibration Sound Pressure 94dB ± 0.75dB Level 114dB ± 0.9dB Suitable Microphone Type 1“ mic. & 0.5“ mic using adaptor. 94 dB range harmonic distortion ± 2% Distortion 114 dB range harmonic distortion ± 5% Operating Temperature 0 to 50 C (32 to 122 DC 9 V battery (006P, 6F22) x 2 off...
