- Page 1 DMI810/DMI820 DIGITAL DISPLAY INCLINOMETER ： V1.6 DIGITAL DISPLAY INCLINOMETER RION DMI810/DMI820 TECHNICAL MANUAL ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
- Page 2 ○ Product functions, parameters, appearance, etc. will be adjusted with technology upgrades, please contact the company's pre-sales business to confirm when buying. ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
-
Page 3: General Description

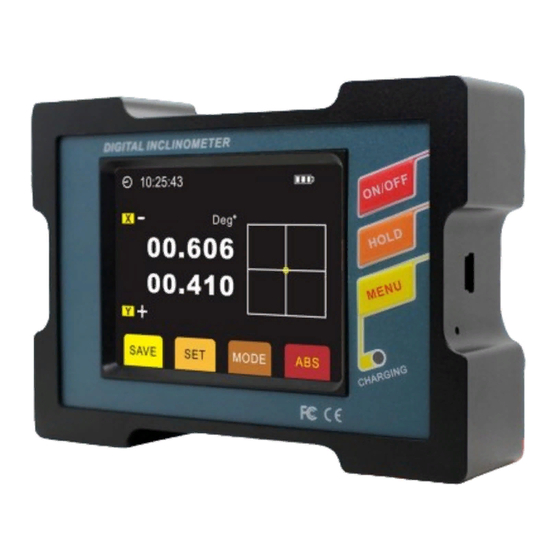

DIGITAL DISPLAY INCLINOMETER ▶ GENERAL DESCRIPTION DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate... -
Page 4: Technical Data
DMI8 15: ±15° 1: Single axis 30: ±30° 2: Dual axis E.g:DMI810-15:means Single axis / Measure range is ± 15° . ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER... - Page 5 DMI810/DMI820 DIGITAL DISPLAY INCLINOMETER ▶ PRODUCT DIMENSION DIAGRAM ▶ MEASURE DIRECTION ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
-
Page 6: Product Functions
⑨Strong magnetic base: strong magnet at the bottom measure surface; ⑩Side strong magnet: strong magnet at the left side measure surface; Note: The USB driver can be downloaded from the RION website: "DMI Series Product USB Driv er". ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU... - Page 7 After the data collection is completed, click STOP to stop saving the data; ABS/ZERO Switch keys ; EIXT: Exit saving function. ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
- Page 8 EXIT: quit Settings date interface, no save E. FAC.RESET Restore the factory Settings The parameters of the recovery has alarm value, filtering frequency,calibration angle ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
- Page 9 ④ ZERO/ABS absolute relative Zero: Click to set the current angle to zero ABS: Click to switch to absolute zero ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
- Page 10 Add：Building 1, COFCO (Fu'an) Robot Intelligent Manufacturing Industrial Park, No. 90 Dayang Road, Fuhai Street, Bao'an District, Shenzhen, China Tel ：(86) 755-29657137 (86) 755-29761269 Fax：(86) 755-29123494 E-mail：sales@rion-tech.net Web：www.rionsystem.com ○Inclinometer ○Digital Compass ○Digital Inclinometer ○Accelerometer ○Gyro ○North Finder ○INS&IMU RION TECHNOLOGY SINCE2008 · ATTITUDE & POSITION SOLUTION PROVIDER...
