Summary of Contents for Rion DMI610

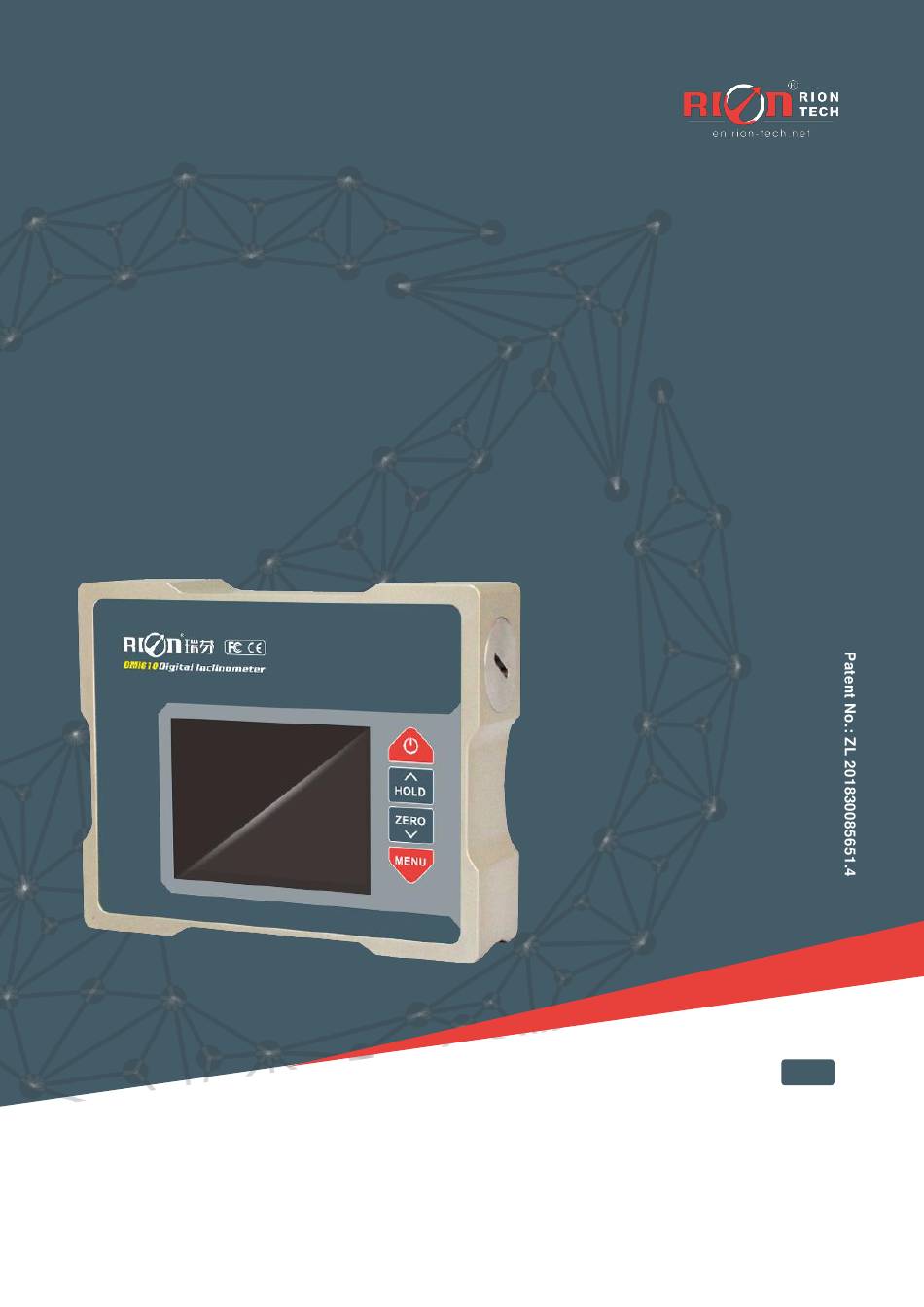

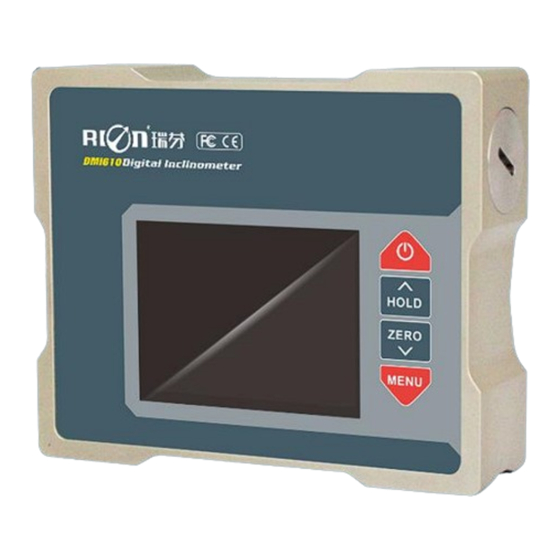

- Page 1 DMI610 DIGITAL DISPLAY INCLINOMETER V2.0 DIGITAL DISPLAY INCLINOMETER DMI610 Technical Manual ○Inclinometer ○3D compass ○Digital inclinometer ○Accelerometer ○Gyro ○North finder ○INS&IMU SINCE2008 · Inertial Attitude Measurement Manufacturer...
- Page 2 DMI610 DIGITAL DISPLAY INCLINOMETER PRODUCTION IMPLEMENTATION STANDARD REFERENCE ○ Enterprise quality system standard: ISO9001: 2015 standard (certification No.: 128101) ○ The intellectual property management system complies with the standard: GB / T 29490-2013 (Certificate No. : 18117IP1529R0S) ○ CE certification (Certificate No.: ATSZAHE180315016) ○...
- Page 3 , specially designed side and bottom the strong magnetic adsorption type installation, three datum can be measured using normally, bring great convenience to customers, DMI610 has the function of data storage, 3 measurement modes (Degrees, minutes, seconds、 angle、 mm/m) optional, strong expansibility, convenient application, industrial reliability,...
- Page 4 DMI610 DIGITAL DISPLAY INCLINOMETER ▶ TECHNICAL DATA DMI610 PARAMETERS Angle measure range ± 90° ± 30° Measure axis Single axis Dual axis Best accuracy <0.02° (RMS)(Full range) <0.005° (RMS)(Full range) Angle measure resolution 0.001° 0.001° Repeatability 0.004° 0.004° Measurement mode...
- Page 5 DMI610 DIGITAL DISPLAY INCLINOMETER ▶ PRODUCT DIMENSION DIAGRAM SIZE:L115*W95*H32mm ▶ MAGNETIC MEASURING SURFACE ○Inclinometer ○3D compass ○Digital inclinometer ○Accelerometer ○Gyro ○North finder ○INS&IMU SINCE2008 · Inertial Attitude Measurement Manufacturer...
- Page 6 DMI610 DIGITAL DISPLAY INCLINOMETER ▶ INSTALLATION MEASUREMENT CHART ○Inclinometer ○3D compass ○Digital inclinometer ○Accelerometer ○Gyro ○North finder ○INS&IMU SINCE2008 · Inertial Attitude Measurement Manufacturer...
- Page 7 DMI610 DIGITAL DISPLAY INCLINOMETER ▶ PRODUCT FUNCTIONS * Function menu operation instructions ON/OFF Long press about 3 seconds, hear "honk"..." Release, start / close HOLD Lock, unlock or move up When the main interface has no menu display, press “ HOLD” button is locked, and repress “...
- Page 8 DMI610 DIGITAL DISPLAY INCLINOMETER 2. Do not press multiple buttons at the same time, it will easily affect the product life. 3. This product should be placed in a safe place not easily accessible to children. Add：Building 1, COFCO (Fu'an) Robot Intelligent Manufacturing Industrial Park, No.
