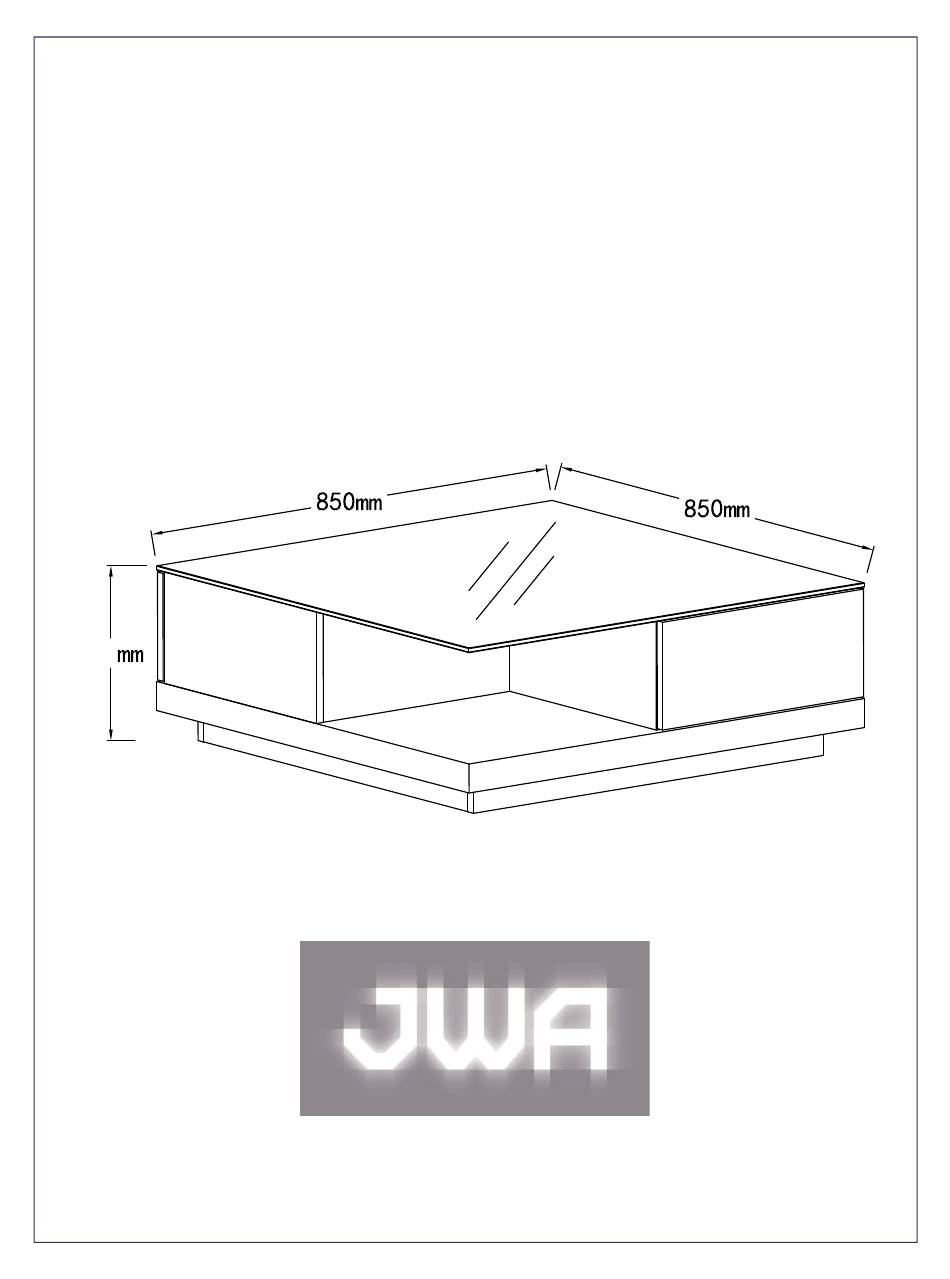

- Page 1 ASSEMBLY INSTRUCTION HOFFMAN Coffee Table ITEM COD E 73679 Imported by JWA Furniture Pty Ltd, Brisbane Qld Australia. For any assistance with assembly or for missing parts please refer to your receipt 2021-09-15 item code:73679...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. - Page 3 2021-09-15 item code:73679...
-
Page 4: Parts List
PARTS LIST Short standing water 1PCS TOP PANEL DRAWER FRONT MIDDLE PANEL MIDDLE PANEL DRAWER SIDE PANEL M4*35mm M3.5*14mm SIDE PANEL DRAWER SIDE PANEL DRAWER BACK PANEL BOTTOM PANEL DRAWER BASE Standing Water 2021-09-15 item code:73679... - Page 5 Fix panel (3) to panel (2) with cam lock (B). 2021-09-15 item code:73679...
- Page 6 Fix panel (4) to panel (3) with cam lock (B). Fix dowel (E) and cam pin (A) to panels (1). 2021-09-15 item code:73679...
- Page 7 Fix panel (1)to panel (5) with cam lock (B). Attach panel (5) to panel (2)(3)(4)with screw (D) Turn screw (D) clockwise to tighten using allen key (M), as shown. 2021-09-15 item code:73679...
- Page 8 Attach metal leg (6) (7) with cam lock (B). Attach metal leg (6)(7) to bottom panel (5) with cam lock(B). 2021-09-15 item code:73679...
- Page 9 Insert cam pin(A)and screw(G) into panel (2). Connect the three panels(9)(10)(11) together with screw(H). Insert panel(12) into groove. Screw runner to the sides of the drawers. 2021-09-15 item code:73679...
- Page 10 2021-09-15 item code:73679...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
